Toyota COROLLA CROSS — IGNITION COIL & SPARK PLUG / GLOW PLUG

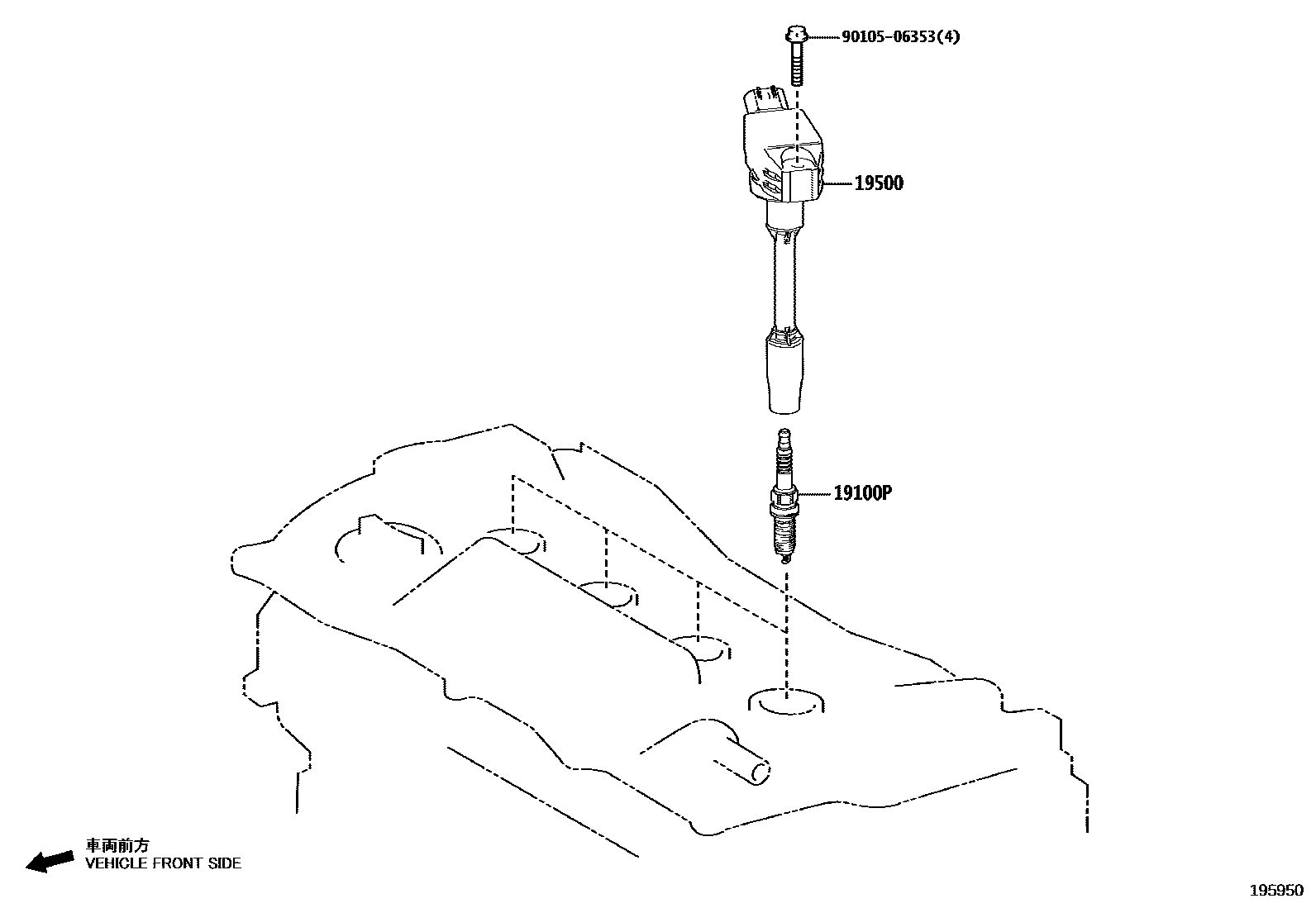

Parts diagram
19100PPLUG, SPARK
main90919-01256×4i202201-202403
FC22HR9; FC22HR9,PARAGUAY SPEC
main90919-01270×4i202007-202401
SC20HR-G11
main90919-01275×4i202007-202411
SC16HR11
main90919-01297×4i202103-202112
FC20HR-Q8
main90919-01298×4i202411
FC16HR-CY9,(J)
main90919-01299×4i202501
FC20HR-GQ8; FC20HR-GQ8,PARAGUAY SPEC
main90919-W1007×4i202110-202411
SC16HR11,(L)
main90919-W1009×4i202411
FC16HR-CY9,(L)
19500COIL ASSY, IGNITION
main90919-02258×4i202007-202111
main90919-02272×4i202007-202410
main90919-02276×4i202201-202403
main90919-02277×4i202501
9010506353
main90105-06353

3 parts on this diagram · 4 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA CROSS

This section contains 8 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA CROSS. Key components include: PLUG, SPARK, COIL ASSY, IGNITION.
