Toyota COROLLA CROSS — FRONT AXLE HUB

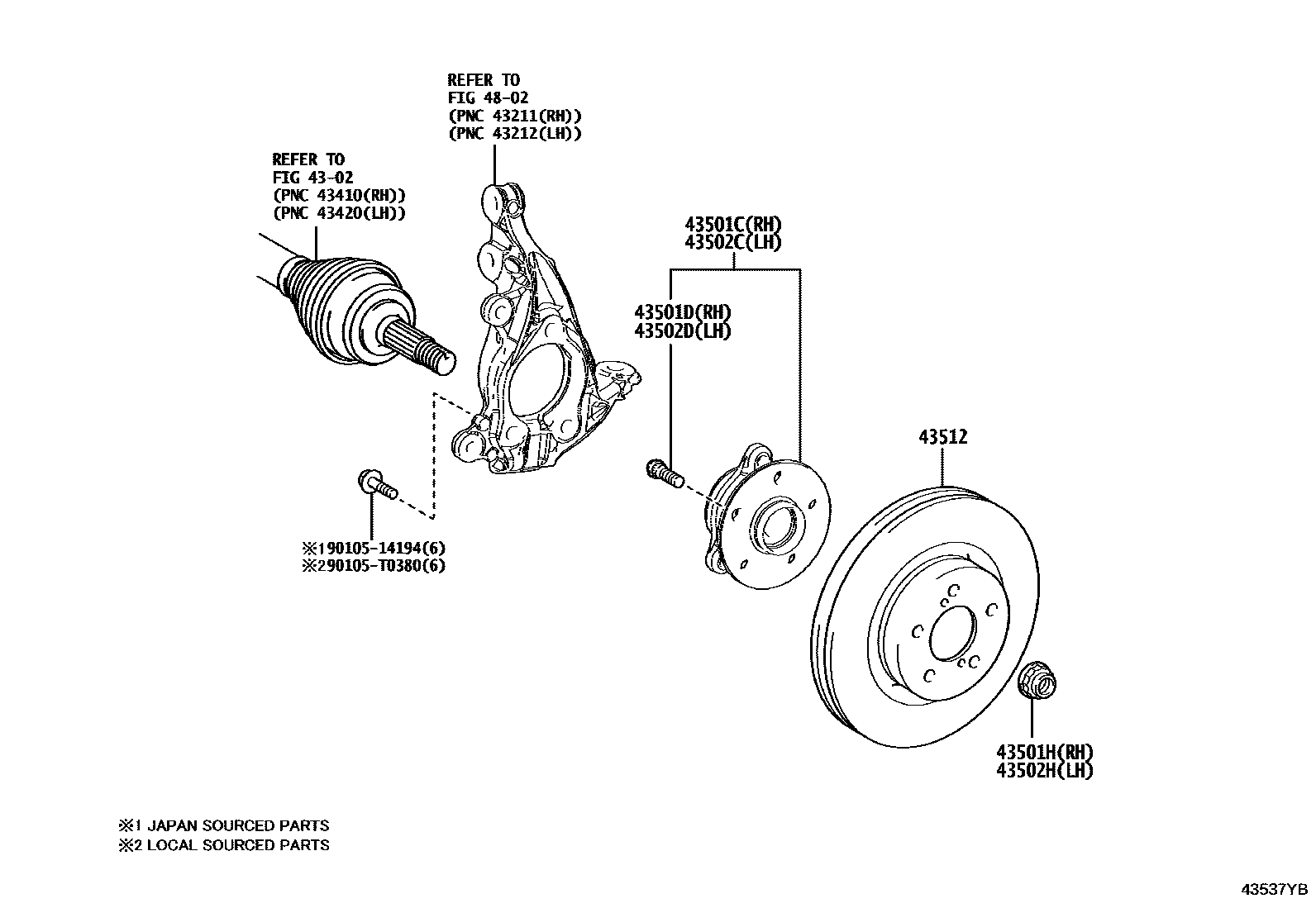

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0A010i202312

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i202312

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i202312

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0A010i202312

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i202312

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i202312

43512DISC, FRONT

main43512-0A050×2i202312

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

90105T0380

main90105-T0380

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA CROSS

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA CROSS. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
