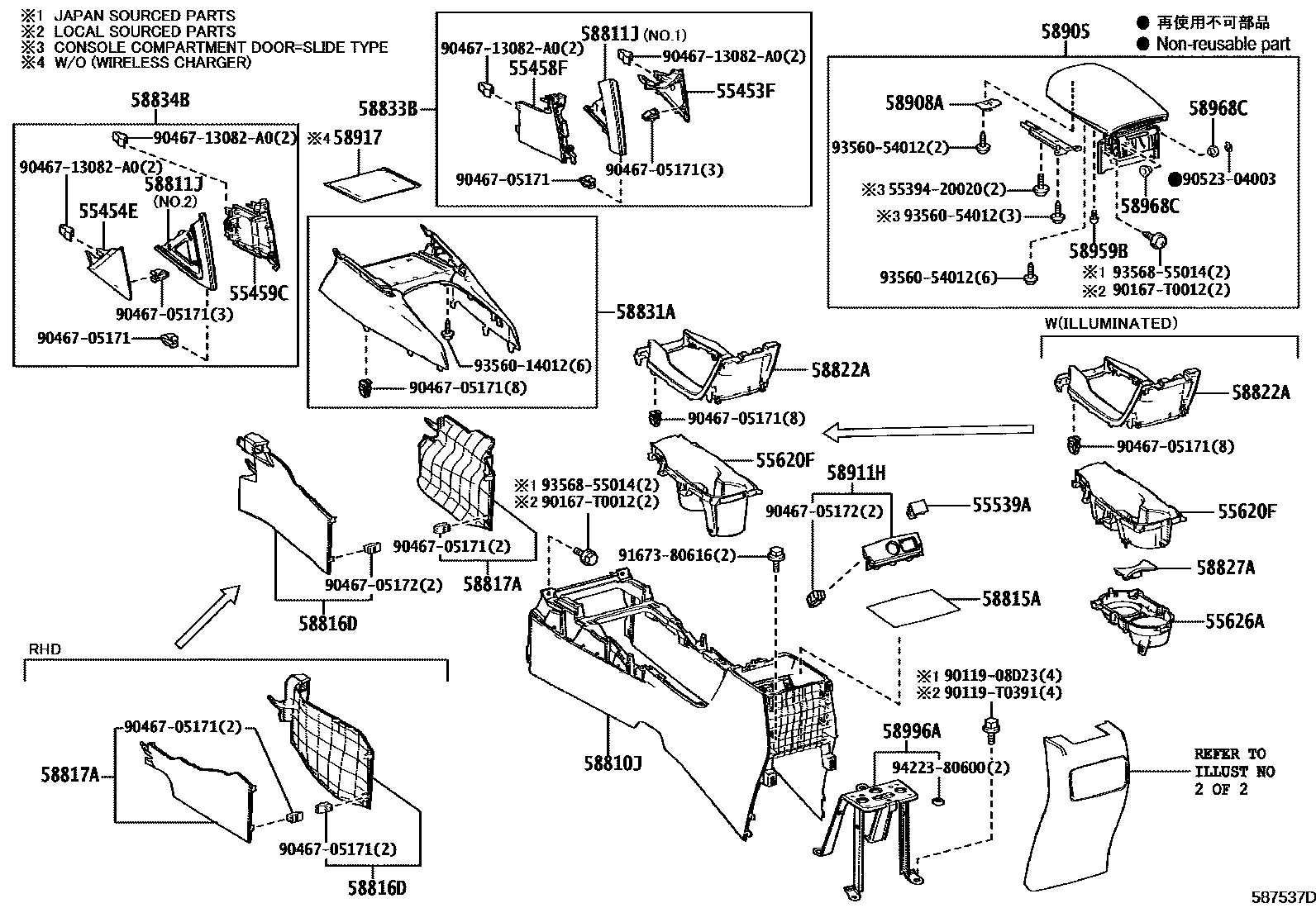

Toyota COROLLA CROSS — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

55453FPAD, INSTRUMENT, LOWER RH

main55453-0A010iZSG10,ZVG10..MA202007-202111

main55453-0A080iZSG10..G..MA202112-202411

55454EPAD, INSTRUMENT, LOWER LH

main55454-0A050iZSG10..VN;ZSG10..RHD..THP;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN202401

main55454-0A180iZSG10,ZVG10..E..MA202112-202410

55458FCOVER, INSTRUMENT, LOWER RH

main55458-0A010iZSG10..VN;ZSG10..RHD..THP;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN202401

main55458-0A080iZSG10,ZVG10..E..MA202112-202410

55459CCOVER, INSTRUMENT, LOWER LH

main55459-0A010iZSG10..VN;ZSG10..RHD..THP;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN202401

main55459-0A080iZSG10..G..MA202112-202411

55539ACOVER, SPARE SWITCH HOLE

main55539-02240-C0iZVG10..E..GCC202010-202410

BLACK,TRIM0#,2#,3#

main55539-02290-C0iZSG10..SAP..N202411

BLACK,TRIM2#

main55539-12260-C0iMXGA10..G,N;ZVG10..G..AGT202103-202112

BLACK,TRIM2#

55620FHOLDER ASSY, CONSOLE BOX CUP

main55620-0A010iZSG10,ZVG10..SAP..(G,J,N)202007-202411

main55620-0A030iZSG10,ZVG10..SAP..E202007-202411

main55620-0A120iZVG10..THP..G..GEN202401

ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP)&SEAT COVER MATERIAL-FABRIC

main55620-0A150iZVG10..E..PH;ZSG10..THP..E;ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

main55620-0A180iZSG10..G..MA202112-202411

main55620-0A190iZSG10,ZVG10..E..MA202112-202410

main55620-0A280iZSG10,ZVG10..MA202411

55626ARETAINER, INSTRUMENT PANEL UNDER TRAY WALL

main55626-0A010iZVG10..E..PH;ZSG10..THP..E..(GEN,VN);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202007-202402

main55626-0A070iZSG10,ZVG10..MA202411

58810JBOX ASSY, CONSOLE

main58810-0A010-C0iZSG10,ZVG10..MA202007-202111

BLACK,TRIM2#,3#

main58810-0A030-C0iZSG10,ZVG10..TWP..(E,G,J,N)202410

BLACK,TRIM2#

main58810-0A050-C0iMXGA10..G,N;MXGA10..E..(AGT,GEN);ZVG10..BZP..G..(AGT,GEN)202201-202403

BLACK,TRIM2#

main58810-0A170-C0iZSG10..SAP..N202411

BLACK,TRIM2#

main58810-0A180-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#

58811JPLATE, CONSOLE

main58811-0A010-B0iZVG10..G..PH;ZSG10..RHD..THP..N202401

SILVER,TRIM2#,NO.1:REFER ILLUST.

main58811-0A100-B0iZSG10..MA202411-202602

SILVER,TRIM2#,NO.1:REFER ILLUST.

main58812-0A010-B0iZSG10,ZVG10..MA202007-202111

SILVER,TRIM2#,3#,NO.2:REFER ILLUST.

main58812-0A080-B0iZSG10..MA202411-202602

SILVER,TRIM2#,NO.2:REFER ILLUST.

58815ACARPET, CONSOLE BOX

main58815-02450iZSG10,ZVG10..MAP..E202007-202410

main58815-02460iZSG10,ZVG10..TWP202410

main58815-02470iMXGA10,ZVG10..BZP202201-202403

main58815-0A010iZSG10,ZVG10..SAP202110-202411

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-0A010-C0iZVG10..G..PH202401

BLACK,TRIM2#

main58816-0A020-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM0#,2#,3#

main58816-0A030-C0iMXGA10..G,N;ZVG10..G..AGT202501

BLACK,TRIM2#

main58816-0A040-C0iZSG10,ZVG10..MA202007-202111

BLACK,TRIM2#,3#

main58816-0A080-C0iZSG10..SAP..N..GEN202411

BLACK,TRIM2#

main58816-0A090-C0iZSG10,ZVG10..RHD..SAP..(E,G)202110-202411

BLACK,TRIM2#

main58816-0A100-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0A010-C0iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202402

BLACK,TRIM2#,3#

main58817-0A020-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM0#,2#,3#

main58817-0A030-C0iMXGA10..G,N;ZVG10..G..AGT202501

BLACK,TRIM2#

main58817-0A040-C0iZSG10..RHD..THP..N202401

BLACK,TRIM2#

main58817-0A090-C0iZSG10..LHD..SAP..(J,N)202110-202411

BLACK,TRIM2#

main58817-0A100-C0iZSG10,ZVG10..RHD..SAP..(E,G)202110-202411

BLACK,TRIM2#

main58817-0A110-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#

58822APANEL, CONSOLE, UPPER REAR

main58822-0A060iZSG10..PH,TH;ZSG10,ZVG10..THP..N..(GEN,TH)202007-202402

ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP)

main58822-0A070iZSG10..N..VN;ZVG10..E..PH;ZSG10..THP..(E,G)..(GEN,VN);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202007-202402

main58822-0A150iZSG10..G..MA202112-202411

58827AGARNISH, CONSOLE BOX POCKET

main58827-12020iZVG10..TWP..E202401-202510

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-0A010-C0iZSG10,ZVG10..MA202007-202111

BLACK,TRIM2#

main58831-0A010-D0iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

TERRA ROSSA,TRIM3#

main58831-0A020-A0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

FROMAGE,TRIM0#

main58831-0A020-C0iZSG10,ZVG10..TWP202010-202410

BLACK,TRIM2#

main58831-0A020-D0iZSG10,ZVG10..TWP..(E,G,J,N)202010-202410

TERRA ROSSA,TRIM3#

main58831-0A030-A0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202201-202403

FROMAGE,TRIM0#

main58831-0A030-C0iMXGA10..G,N;ZVG10..G..AGT202404-202412

BLACK,TRIM2#

main58831-0A080-C0iZSG10..SAP..N202411-202602

BLACK,TRIM2#

main58831-0A080-D0iZSG10,ZVG10..SAP..(E,G)202110-202411

TERRA ROSSA,TRIM3#

main58831-0A090-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#

main58831-0A090-D0iZSG10,ZVG10..E..MA202112-202410

TERRA ROSSA,TRIM3#

main58831-0A110-C0supersedes 58831-0A010-C0iZVG10..G..PH202401

BLACK,TRIM2#

main58831-0A130-C0supersedes 58831-0A030-C0iZVG10..G..AGT202501-202602

WIRELESS CHARGER-WITH (ACCESSORY),BLACK,TRIM0#,2#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-0A010-B0iZVG10..G..PH;ZSG10..RHD..THP..N202401

SILVER,TRIM2#

main58833-0A020-B0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

SILVER,TRIM2#,3#

main58833-0A030-B0iMXGA10..G,N;ZVG10..G..AGT202103-202112

SILVER,TRIM2#

main58833-0A030-B1iMXGA10..E202404-202412

SMOKE SILVER METALLIC,TRIM20

main58833-0A070-B0iZSG10..SAP..N202411-202602

SILVER,TRIM2#

main58833-0A070-C0iZSG10..SAP..G..GEN;ZSG10,ZVG10..SAP..E202411-202602

BLACK,TRIM20

main58833-0A080-B0iZSG10..MA202411-202602

SILVER,TRIM2#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-0A010-B0iZVG10..G..PH;ZSG10..RHD..THP..N202401

SILVER,TRIM2#

main58834-0A020-B0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

SILVER,TRIM2#,3#

main58834-0A030-B0iMXGA10..G,N;ZVG10..G..AGT202404-202412

SILVER,TRIM2#

main58834-0A030-B1iMXGA10..E202404-202412

SMOKE SILVER METALLIC,TRIM20

main58834-0A070-B0iZSG10..SAP..N202411-202602

SILVER,TRIM2#

main58834-0A070-C0iZSG10..LHD..SAP..G;ZSG10,ZVG10..SAP..E202204-202411

BLACK,TRIM20

main58834-0A080-B0iZSG10..MA202411-202602

SILVER,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02D90-C0iZVG10..G..PH;ZSG10..RHD..THP..N202401

BLACK,TRIM2#

main58905-02E40-C0iZSG10..J..GCC;ZVG10..(G,N)..GCC202410

BLACK,TRIM2#

main58905-02E40-D0iZSG10..J..GCC;ZVG10..(G,N)..GCC202410

TERRA ROSSA,TRIM3#

main58905-02E80-C0iMXGA10..G,N;MXGA10..E..(AGT,GEN);ZVG10..BZP..G..(AGT,GEN)202201-202403

BLACK,TRIM2#

main58905-0A010-C0iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

main58905-0A020-C0iZSG10,ZVG10..(E,G,N)..TAIW202010-202410

BLACK,TRIM0#,2#,3#

main58905-0A030-C1iMXGA10..E..GEN;ZVG10..BZP..G..GEN202103-202112

BLACK,TRIM0#,2#

main58905-0A060-C0iZVG10..R202411-202602

BLACK,TRIM2#

main58905-0A060-D0iZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..(E,N)..(MA,VN);ZSG10..RHD..THP..(E,G);ZVG10..(MAP,THP)..(E,G)..(GEN,IDN,MA,TH,VN)202401

DK.ROSE,TRIM3#

main58905-0A060-E0iZVG10..IDN;ZSG10..E..MA;ZVG10..E..(PH,TH)202401

DK.SEPIA,TRIM2#

main58905-0A070-C0iZSG10,ZVG10..L,M202410-202510

BLACK/LT.GRAY,TRIM2#

main58905-0A070-D0iZVG10..E..GCC;ZSG10..TWP..(G,N);ZVG10..(E,G,N)..TAIW202410

TERRA ROSSA/LT.GRAY,TRIM3#

main58905-0A070-E0iZVG10..E..GCC;ZSG10..TWP..(G,N);ZVG10..(E,G,N)..TAIW202410

DK.SEPIA/LT.GRAY,TRIM2#

main58905-0A080-A1iZVG10..BZ;MXGA10..E..BZ;ZVG10..BZP..E..(AGT,GEN)202501

SEAT COVER MATERIAL-LEATHER,FROMAGE/SHELL,TRIM0#

main58905-0A080-C0iMXGA10..E..BZ202501

BLACK/GR RED,TRIM20

main58905-0A080-E1iZVG10..BZP..G..GEN202404-202412

SEAT COVER MATERIAL-LEATHER,DK.SEPIA/LT.GRAY,TRIM20

main58905-0A130-C1iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#

main58905-0A140-C0iZSG10,ZVG10..SAP..(E,G)202110-202411

BLACK,TRIM2#,3#

main58905-0A160-C1iZSG10..SAP..G..GEN;ZSG10,ZVG10..SAP..E202411

BLACK/GR RED,TRIM20

main58905-0A160-D0iZSG10,ZVG10..SAP..(E,G)202411

TERRA ROSSA/LT.GRAY,TRIM3#

main58905-0A160-E0iZSG10..SAP..G..GEN;ZSG10,ZVG10..SAP..E202411

DK.SEPIA/LT.GRAY,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iMXGA10,ZVG10..BZP202201-202403

58911HBOX, CONSOLE, REAR

main58911-02580-C0iZVG10..G..PH;ZSG10..RHD..THP..N202401

BLACK,TRIM2#

main58911-02600-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM0#,2#,3#

main58911-02630-C0iMXGA10..G,N;ZVG10..G..AGT202103-202112

BLACK,TRIM2#

main58911-0A040-C0iZSG10,ZVG10..SAP..(E,G)202110-202411

BLACK,TRIM2#

main58911-0A050-C0iZSG10,ZVG10..E..MA202411

BLACK,TRIM2#

58917MAT, BOX BOTTOM, NO.2

main58917-0A010iZSG10,ZVG10..MA202007-202111

main58917-0A020iZSG10,ZVG10..TWP202410-202510

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×4iMXGA10,ZVG10..BZP202501

58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER

main58968-33010×2iMXGA10,ZVG10..BZP202007-202112

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0A010iZSG10..TH202401-202512

main58996-0A020iZSG10,ZVG10..TWP202410

main58996-0A030iMXGA10,ZVG10..BZP202201-202403

main58996-0A080iZSG10,ZVG10..SAP202411

main58996-0A090iZSG10..G..MA202112-202411

5539420020BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-20020

9011908D23

main90119-08D23

90119T0391

main90119-T0391

90167T0012

main90167-T0012

9046705171

main90467-05171

9046705172

main90467-05172

9046713082A0

main90467-13082A0

9052304003

main90523-04003

9167380616

main91673-80616

9356014012

main93560-14012

9356054012

main93560-54012

9356855014

main93568-55014

9422380600

main94223-80600

37 parts on this diagram · 4 diagrams in section
