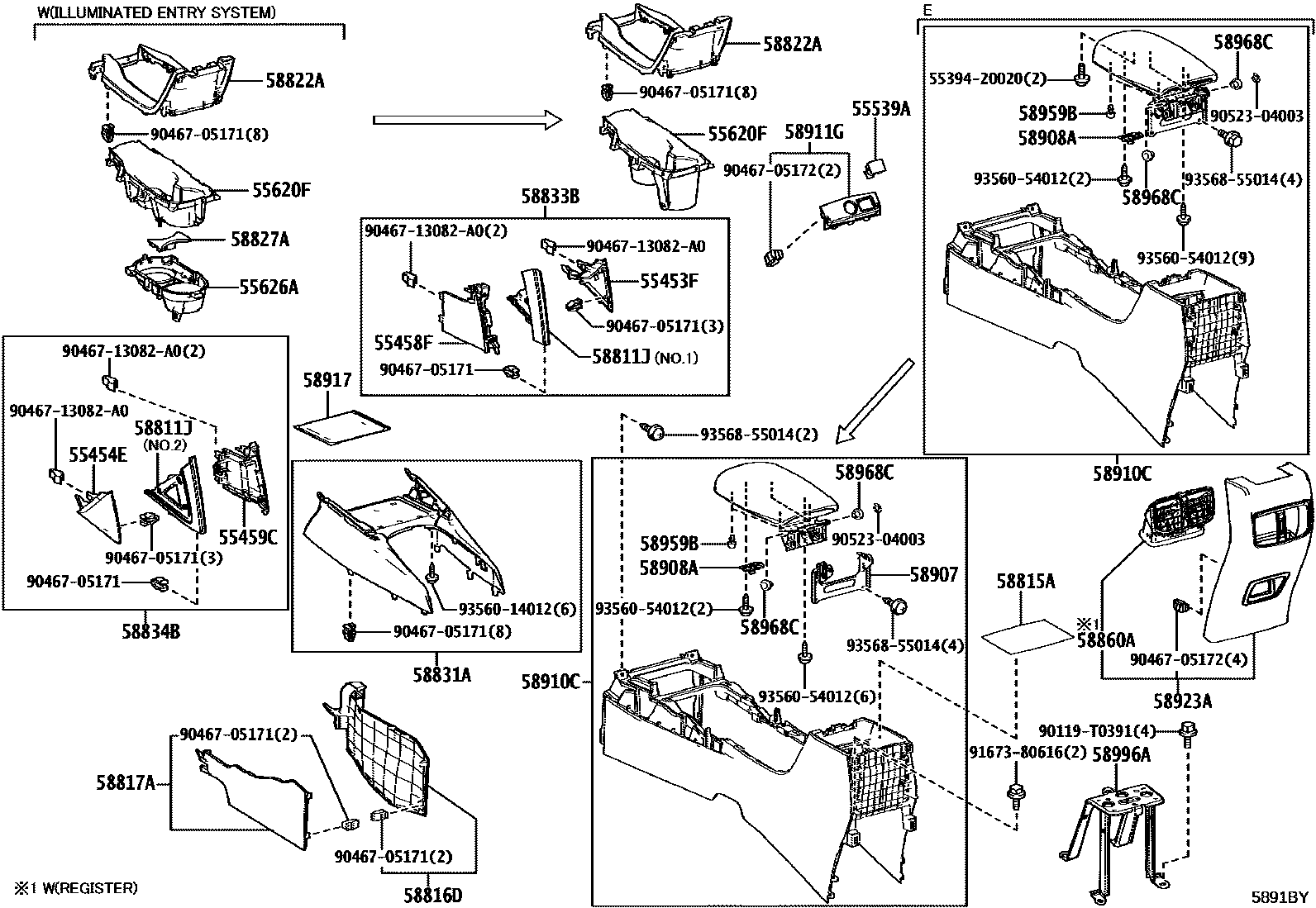

Toyota COROLLA CROSS — CONSOLE BOX & BRACKET

55453FPAD, INSTRUMENT, LOWER RH

main55453-0A090iZSG10,ZVG10202312

55454EPAD, INSTRUMENT, LOWER LH

main55454-0A190iZSG10,ZVG10202312

55458FCOVER, INSTRUMENT, LOWER RH

main55458-0A100iZSG10,ZVG10202312

55459CCOVER, INSTRUMENT, LOWER LH

main55459-0A100iZSG10,ZVG10202312

55539ACOVER, SPARE SWITCH HOLE

main55539-12260-C0iZSG10,ZVG10202312

BLACK,TRIM3#

55620FHOLDER ASSY, CONSOLE BOX CUP

main55620-0A010iZSG10,ZVG10..G,N202312

main55620-0A030iZSG10,ZVG10..E202312

55626ARETAINER, INSTRUMENT PANEL UNDER TRAY WALL

main55626-0A010iZSG10,ZVG10..E202312

58811JPLATE, CONSOLE

main58811-0A110-B0iZSG10,ZVG10202312

SILVER,TRIM3#,NO.1:REFER ILLUST.

main58812-0A090-B0iZSG10,ZVG10202312

SILVER,TRIM3#,NO.2:REFER ILLUST.

58815ACARPET, CONSOLE BOX

main58815-0A030iZSG10,ZVG10202312

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-0A110-C0iZSG10,ZVG10202312

BLACK,TRIM3#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0A120-C0iZSG10,ZVG10202312

BLACK,TRIM3#

58822APANEL, CONSOLE, UPPER REAR

main58822-0A060iZSG10,ZVG10..G,N202312

main58822-0A070iZSG10,ZVG10..E202312

58827AGARNISH, CONSOLE BOX POCKET

main58827-12020iZSG10,ZVG10..E202312

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-0A120-D0iZSG10,ZVG10202312

TERRA ROSSA,TRIM3#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-0A100-B0iZSG10,ZVG10202312

SILVER,TRIM3#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-0A100-B0iZSG10,ZVG10202312

SILVER,TRIM3#

58860AREGISTER ASSY, CONSOLE BOX

main58860-02030iZSG10,ZVG10..E,G202312

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-02350iZSG10,ZVG10..G,N202312

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iZSG10,ZVG10202312

58910CBOX ASSY, CONSOLE, REAR

main58910-0A200-C0iZSG10,ZVG10..G,N202312

BLACK,TRIM3#

main58910-0A210-C0iZSG10,ZVG10..E202312

BLACK,TRIM3#

58911GPANEL, BOX, NO.1

main58911-0A060-C0iZSG10,ZVG10202312

BLACK,TRIM3#

58917MAT, BOX BOTTOM, NO.2

main58917-0A010iZSG10,ZVG10202312

58923APANEL, CONSOLE REAR END

main58923-0A210-C0iZSG10..N202402

BLACK,TRIM3#

main58923-0A220-C0iZSG10,ZVG10..E,G202312

BLACK,TRIM3#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×4iZSG10,ZVG10202312

58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER

main58968-33010×2iZSG10,ZVG10202312

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0A100iZSG10,ZVG10202312

5539420020BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-20020

90119T0391

main90119-T0391

9046705171

main90467-05171

9046705172

main90467-05172

9046713082A0

main90467-13082A0

9052304003

main90523-04003

9167380616

main91673-80616

9356014012

main93560-14012

9356054012

main93560-54012

9356855014

main93568-55014

36 parts on this diagram · 1 diagram in section
