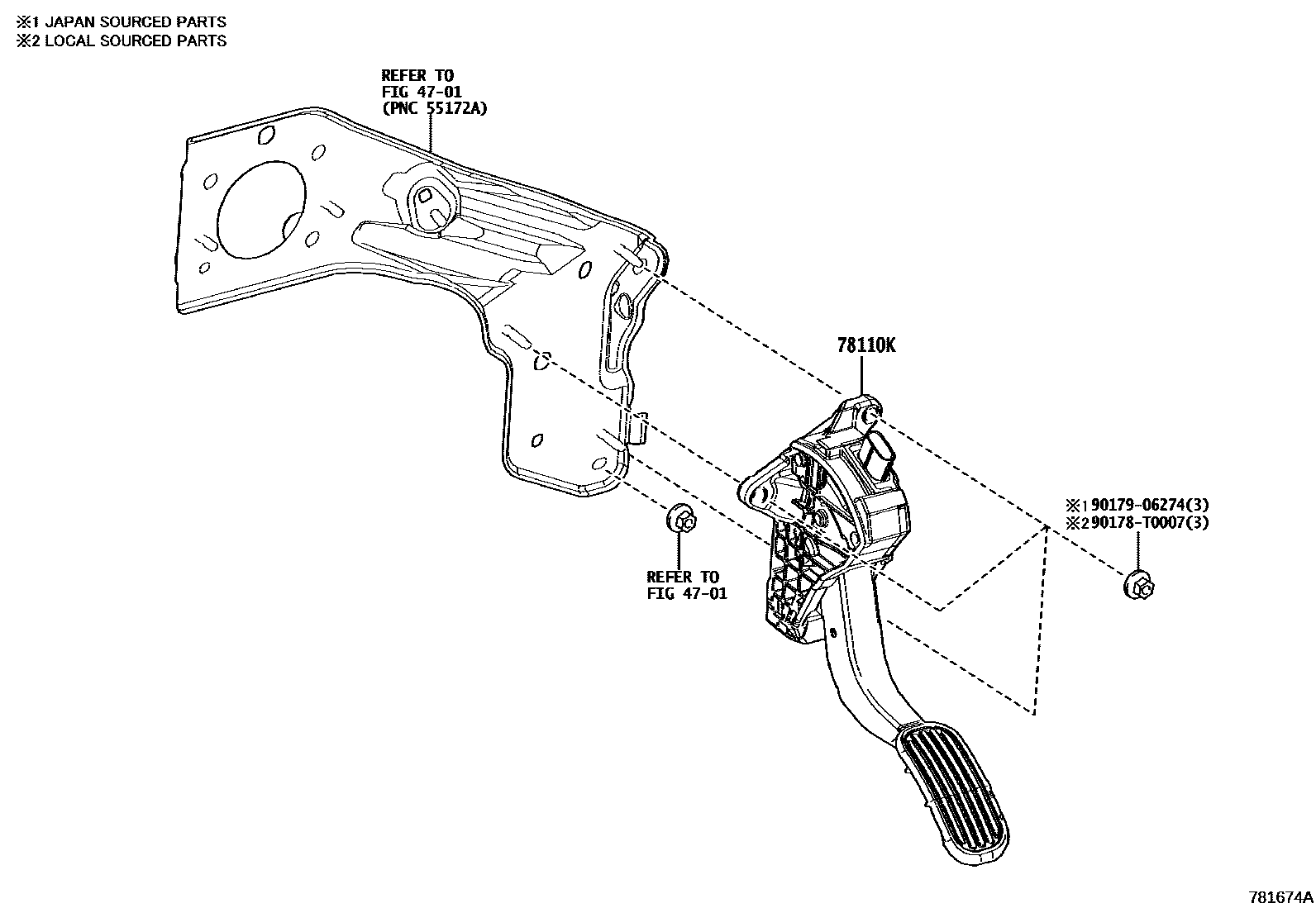

Toyota COROLLA CROSS — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-F4012i202007-202410

main78110-F4032i202411

main78110-F4050i202007-202101

main78110-F4051i202102-202106

main78110-F4052i202107-202212

90178T0007

main90178-T0007

9017906274

main90179-06274

4 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota COROLLA CROSS

This section contains 4 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA CROSS. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR).
