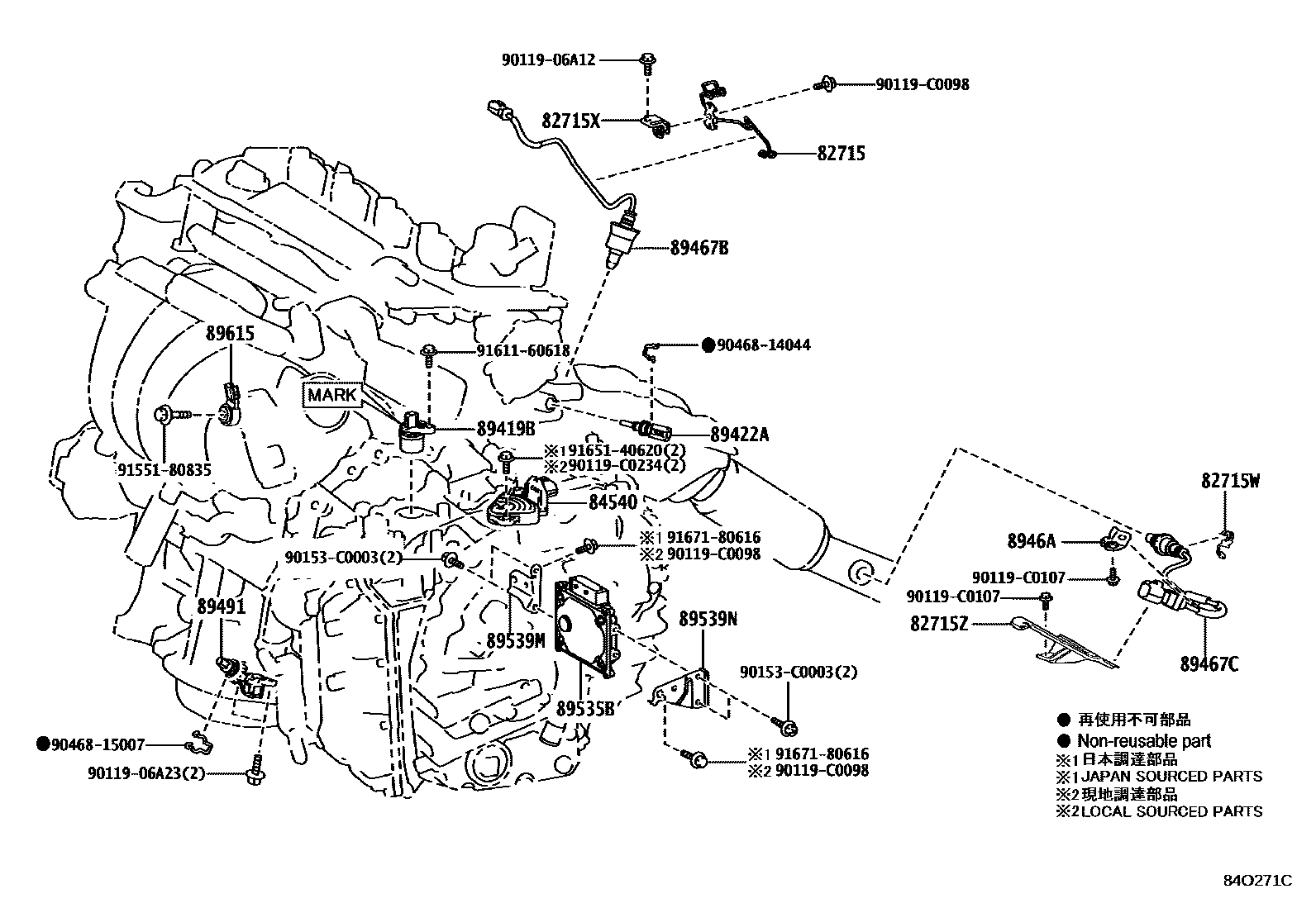

Toyota COROLLA CROSS (TFTM) — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1COWL 0009 1COWL 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1STEERING 0013 1SEAT 0014 1DOOR & ROOF 0015 1FLOOR & BACK DOOR 0016 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-F4310iMXGA10202201-202304

82715WBRACKET, WIRING HARNESS CLAMP

main82715-44510iMXGA10,MXGH10202304

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-12X50iMXGA10202201-202304

(J)

main82715-F4640iMXGA10,MXGH10202304

(L)

82715ZBRACKET, WIRING HARNESS CLAMP

main82715-76291iMXGA10,MXGH10202304

main82715-F4320iMXGA10202201-202304

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMXGA10202201-202304

89419BSENSOR, SHIFT STROKE

main89419-0E010iMXGA10202201-202208

main89419-0R010iMXGA10202304

(L)

main89419-12011iMXGA10202201-202203

MARK=CS1

main89419-K2010iMXGA10202208-202304

(J)

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXGA10202201-202304

89467BSENSOR, AIR FUEL RATIO

main89467-0R160iMXGA10,MXGH10202304

main89467-F4010iMXGA10202201-202304

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0A050iMXGA10202304

main89467-0A070iMXGH10202307

main89467-F4020iMXGA10202201-202304

8946ABRACKET, EXHAUST SENSOR CLAMP

main82715-F4330iMXGA10202201-202304

main8946A-02060iMXGA10,MXGH10202304

89491SENSOR, ENGINE OIL LEVEL

main89491-06010iMXGA10202201-202205

main89491-06011iMXGA10202206-202304

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-0A060iMXGA10202201-202304

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-F4010iMXGA10202201-202304

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-F4020iMXGA10202201-202304

89615SENSOR, KNOCK CONTROL

main89615-0E010iMXGA10,MXGH10202304

MARK 89615-0E010

main89615-20090iMXGA10202201-202304

9011906A12

main90119-06A12

9011906A23

main90119-06A23

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0234

main90119-C0234

90153C0003

main90153-C0003

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

27 parts on this diagram · 16 diagrams in section
