Toyota COROLLA CROSS (TFTM) — PARTIAL ENGINE ASSEMBLY

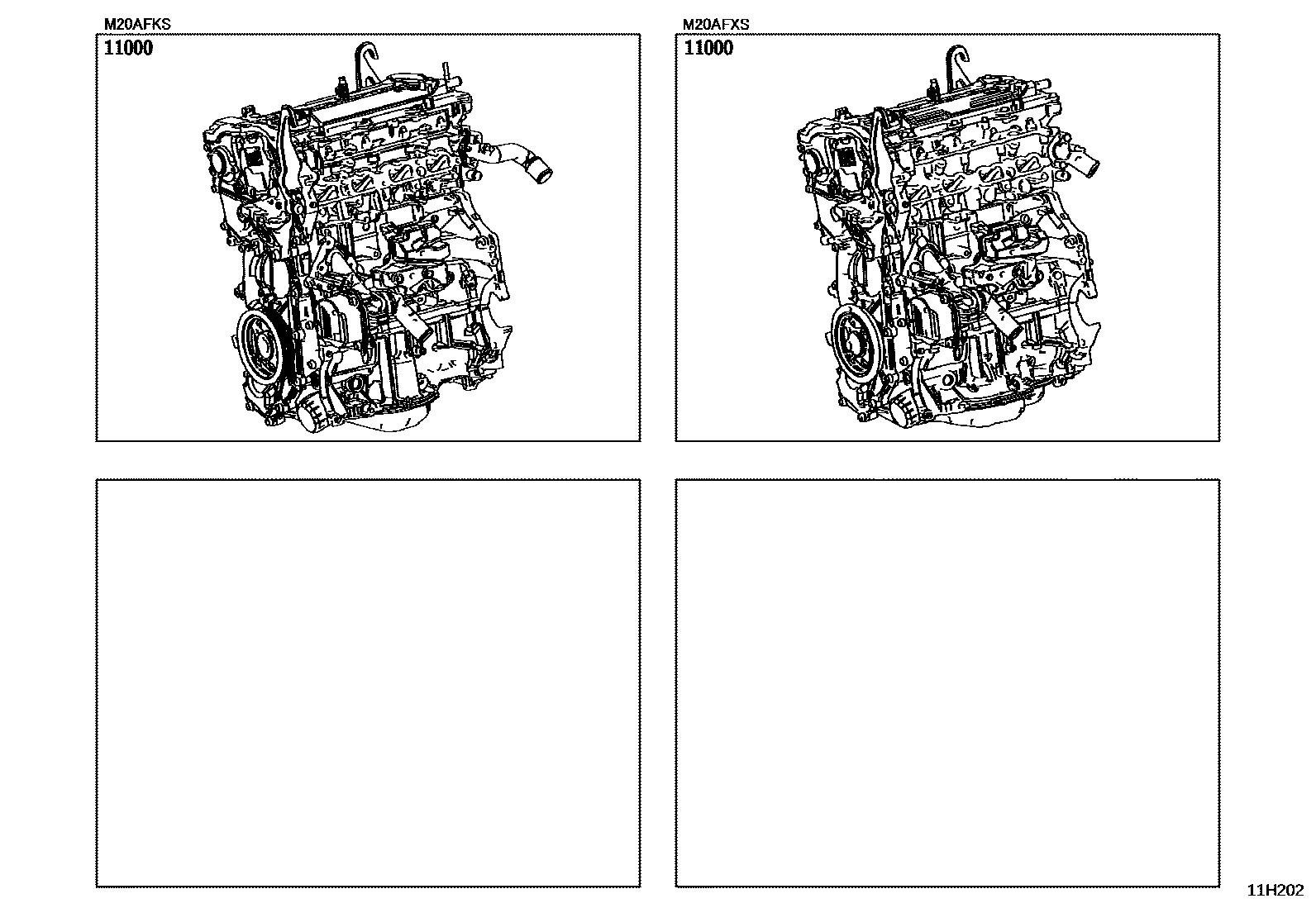

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-F2130i202201-202304

main19000-F2260i202304

main19000-F2270i202307

1 parts on this diagram · 1 diagram in section
