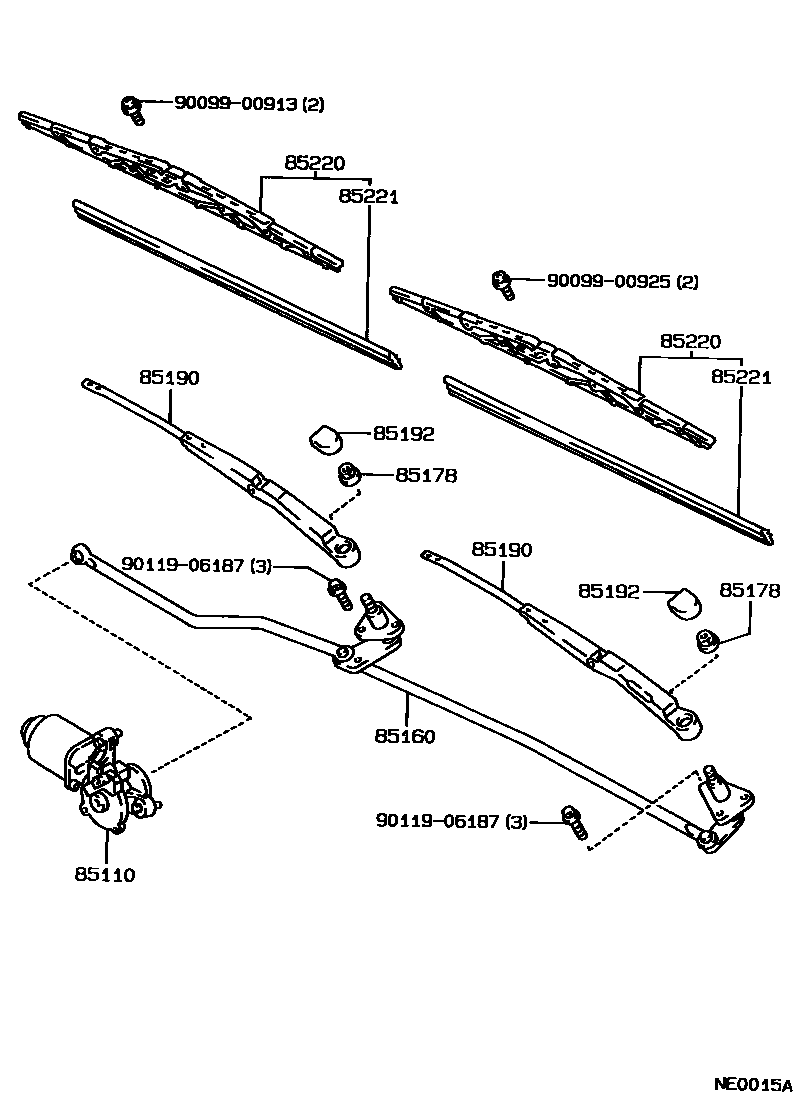

Toyota COROLLA CP — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12660i198708-198808

main85110-12661i198808-198908

main85110-12662i198908-199106

main85110-12670i198708-198810

COLD SPEC

main85110-12671i198810-198908

COLD SPEC

main85110-12672i198908-199106

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85160-12570i198708-199106

main85160-12580i198708-199106

COLD SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113i198708-199106

85190ARM ASSY, WINDSHIELD WIPER

main85190-1A010i198708-199106

main85210-12270i198708-199106

85192COVER, WINDSHIELD WIPER ARM

main85192-12800i198708-199106

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16340i198708-198808

main85220-16880i198808-199106

main85220-32600i198708-198808

main85220-32860i198808-199106

85221BLADE, WINDSHIELD WIPER

main85221-30100i198708-199106

main85221-32050i198708-199106

9009900913

main90099-00913

9009900925

main90099-00925

9011906187

main90119-06187

10 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA CP

This section contains 10 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA CP. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM.
