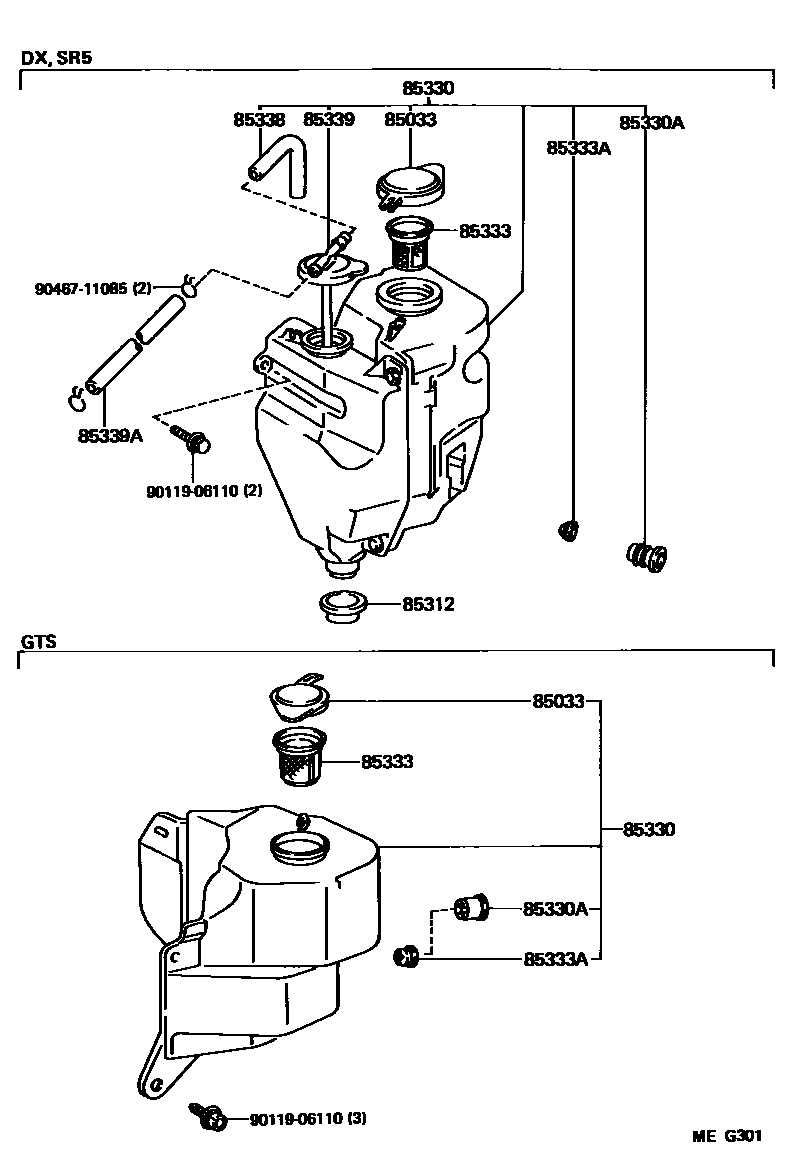

Toyota COROLLA CP — WINDSHIELD WASHER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-12320iAE86198308-198707

85312PACKING, WINDSHIELD WASHER TANK

main85312-32010iAE86..DX,SR5198308-198707

85330JAR ASSY, WINDSHIELD WASHER

main85331-12320iAE86..(DX,SR5)..USA198308-198707

main85331-12390iAE86..(DX,SR5)..USA198508-198707

COLD SPEC,W/O *RW

main85331-12400iAE86..GTS..USA198408-198707

main85331-12410iAE86..GTS..USA198408-198508

COLD SPEC OR W/*RW

main85331-12600iAE86..3D..SR5198508-198707

W/*RW

main85331-12630iAE86..3D..GTS198508-198707

W/*RW

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAE86..USA198308-198707

main90099-32103iAE86..USA198308-198707

COLD SPEC OR W/*RW

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010iAE86..USA198308-198707

COLD SPEC OR W/*RW

85333AFILTER, WINDSHIELD WASHER JAR, NO.2

main85333-20020iAE86..USA198308-198707

COLD SPEC OR W/*RW

85338HOSE, BREATHER

main85338-16010iAE86..DX,SR5198308-198707

sub85338-12010

85339CAP SUB-ASSY, RESERVE TANK

main85339-12010iAE86..DX,SR5198308-198707

85339AHOSE (FOR RADIATOR RESERVE TANK)

main90445-12073iAE86..DX,SR5198308-198707

sub90099-33370

9011906110

main90119-06110

9046711085

main90467-11085

11 parts on this diagram · 6 diagrams in section
