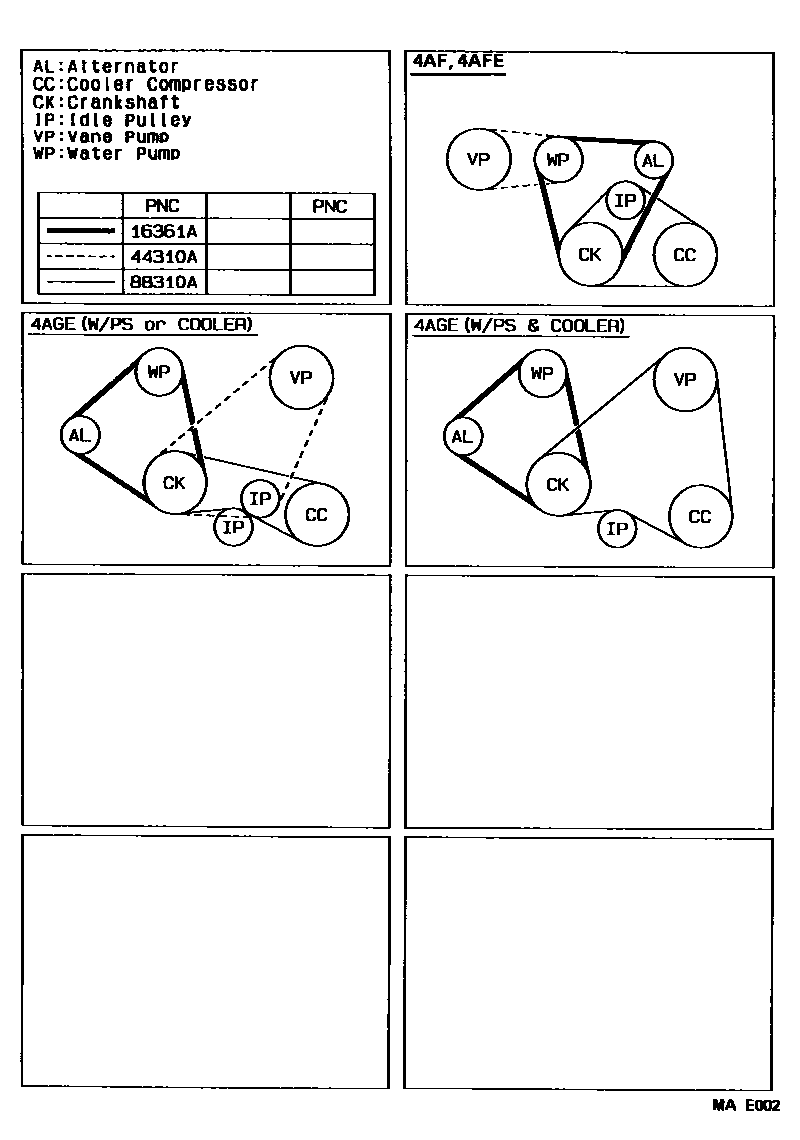

Toyota COROLLA CP — V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02148i198708-198802

main99365-00970i198708-199005

main99365-00980i198908-199005

main99365-20970i199005-199106

main99365-20980i199005-199106

main99365-50820i198802-198805

44310ABELT, V(FOR VANE PUMP)

main99363-50630i198708-199106

main99365-50920i198708-199106

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02184i198708-198908

W(AIR CONDITIONER)

main90916-02188i198908-199106

main99364-00860i198801-199106

L=860

main99364-50830i198708-198801

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA CP

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota COROLLA CP. Key components include: BELT, V(FOR FAN & ALTERNATOR), BELT, V(FOR VANE PUMP), BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
