Toyota COROLLA CP — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

8202

82600FFUSE, FUSE BLOCK

main90982-07011iAE86198308-198707

30A,GREEN,30A

main90982-09002×9iAE86198308-198707

10A,10A

main90982-09003×5iAE86198308-198707

15A,15A

main90982-09004iAE86198308-198707

20A,YELLOW,20A

main90982-09005×6iAE86198308-198707

7.5A,7.5A

82616PULLER, FUSE

main82616-12010iAE86198308-198707

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-12100iAE86198308-198707

82661COVER, RELAY BLOCK, NO.1

main82661-12100iAE86198308-198707

NO.2

main82661-12110iAE86198308-198707

ENGINE ROOM

83391SWITCH, VACUUM

main83391-12150iAE86..(DX,SR5)..USA198508-198707

MARK=80FM

main83391-16040iAE86..(DX,SR5)..USA198308-198508

MARK=80M

main83391-16060iAE86..DX,SR5198308-198508

MARK=200B

83399BRACKET, VACUUM SWITCH

main83399-22011iAE86..SR5..CND198308-198508

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iAE86198308-198707

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iAE86198406-198705

main83520-14023iAE86198705-198707

sub83520-35030

main83520-55011iAE86198308-198406

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14040iAE86..DX198502-198508

sub83530-30080

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iAE86..5F198308-198707

84540SWITCH ASSY, NEUTRAL START

main84540-35020iAE86..4FC198308-198707

85430VALVE, OUTER VENT CONTROL

main85430-12040iAE86..(DX,SR5)..USA198308-198508

main90925-09010iAE86..(DX,SR5)..USA198508-198707

85915RELAY, MAIN

main85913-30020iAE86198308-198508

main90987-04002iAE86198508-198707

85916RELAY, LIGHT CONTROL

main90987-01003×2iAE86198308-198707

85931RELAY, EMISSION CONTROL

main85931-14020iAE86..(DX,SR5)..USA198308-198707

85964RELAY, LIGHT RETRACTOR

main85964-12010iAE86198308-198707

89427SWITCH, TEMPERATURE DETECT

main89427-16020iAE86..(DX,SR5)..USA198308-198707

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-12010iAE86..(DX,SR5)..USA198508-198707

89465SENSOR, OXYGEN

main89465-29045iAE86..GTS198408-198707

main89465-29055iAE86..(DX,SR5)..USA198308-198508

main89465-29075iAE86..(DX,SR5)..USA198508-198707

sub89465-29076

89466GASKET, OXYGEN SENSOR

main89466-30010iAE86..GTS..CND198408-198707

sub89466-20020

89620IGNITER ASSY

main89620-12290iAE86..GTS198408-198707

DENSO

main89620-12310iAE86..GTS198408-198508

TOSHIBA

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

9011906067

main90119-06067

9011906104

main90119-06104

9017908059

main90179-08059

9046106063

main90461-06063

9046106064

main90461-06064

9046108312

main90461-08312

9046112218

main90461-12218

9046400154

main90464-00154

9046808002

main90468-08002

9161160612

main91611-60612

9165140610

main91651-40610

9165140612

main91651-40612

9165640616

main91656-40616

9338516025

main93385-16025

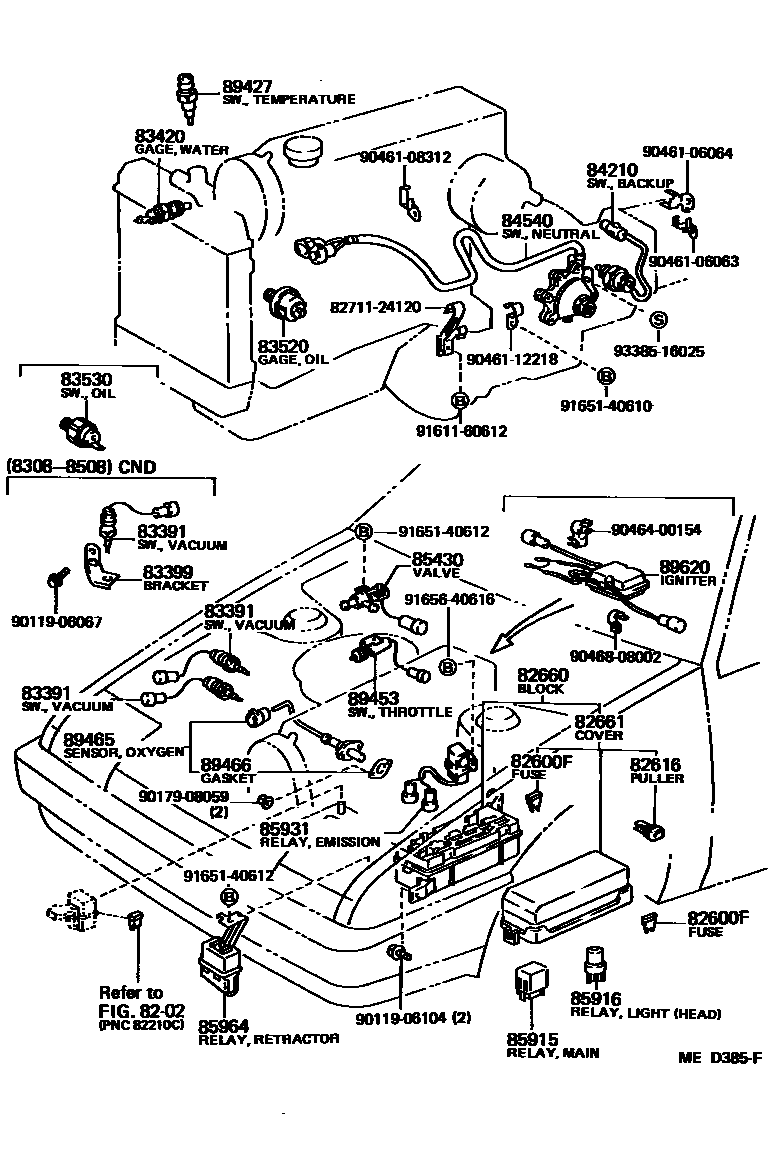

37 parts on this diagram · 4 diagrams in section
