Toyota COROLLA CP — STARTER

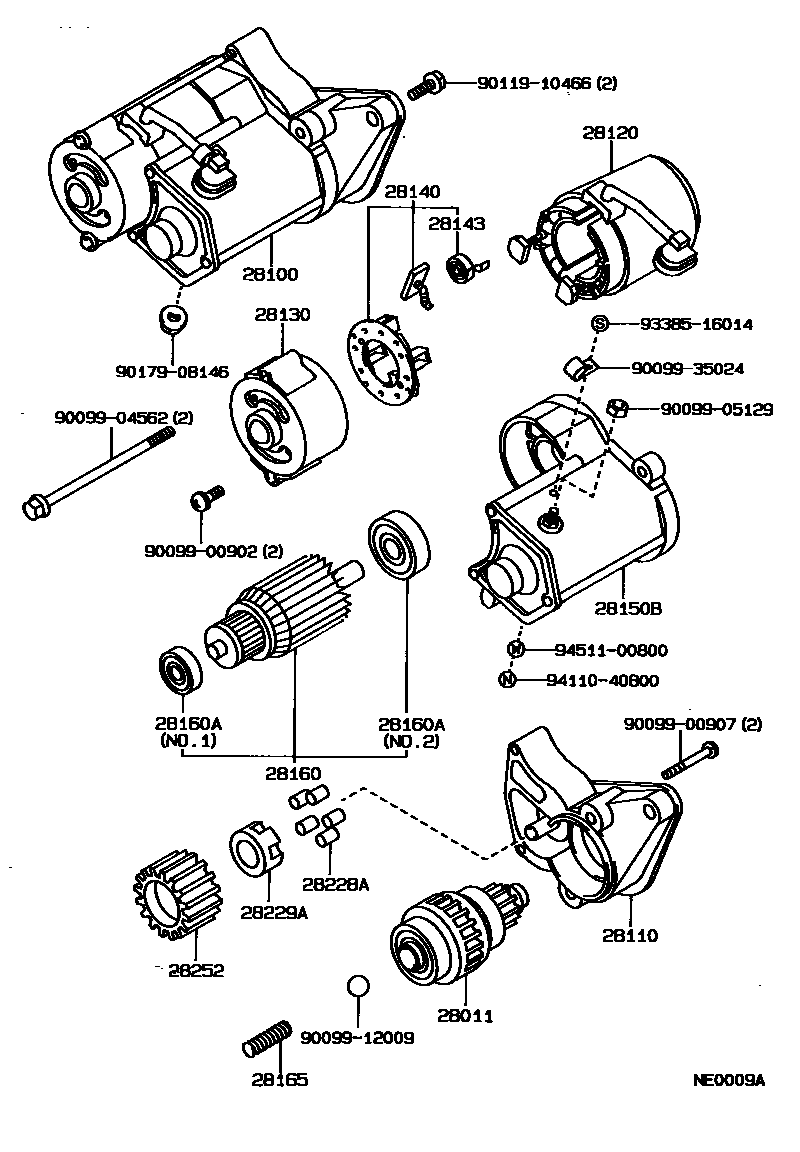

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i198912-199106

main28011-76070i198912-199106

COLD SPEC

28100STARTER ASSY

main28100-15150i198708-199106

12V 1.4KW

main28100-15180i198708-199106

12V 1.0KW

main28100-16050i198708-198908

12V 1.4KW

main28100-16100i198908-198912

12V 1.4KW,COLD SPEC

main28100-16110i198708-199106

12V 1.0KW

main28100-16130i198912-199106

12V 1.4KW

28110HOUSING ASSY, STARTER DRIVE

main28110-15130i198708-199106

main28110-15150i198708-199106

COLD SPEC

main28110-16020i198708-199106

main28110-16050i198708-198912

COLD SPEC

main28110-16130i198912-199106

COLD SPEC

28120YOKE ASSY, STARTER

main28120-15090i198708-198912

COLD SPEC

main28120-26071i198708-199106

main28120-74070i198912-199106

COLD SPEC

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i198708-199106

main28130-15150i198708-199106

COLD SPEC

main28130-16130i198912-199106

COLD SPEC

main28130-72010i198708-199106

main28130-72020i198708-198912

COLD SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i198708-198912

COLD SPEC

main28140-26070i198708-199106

main28140-76070i198912-199106

COLD SPEC

28143SPRING, STARTER BRUSH

main90099-17112×4i198708-199106

28150BSWITCH ASSY, MAGNETIC

main28150-13011i198708-199106

main28150-15150i198708-199106

COLD SPEC

main28150-16110i198708-199106

main28150-16130i198912-199106

COLD SPEC

main28150-72090i198708-198912

COLD SPEC

28160ARMATURE ASSY, STARTER

main28160-15090i198708-198908

COLD SPEC

main28160-15091i198908-198912

COLD SPEC

main28160-26070i198708-198908

main28160-26071i198908-199106

main28160-74070i198912-199106

COLD SPEC

28160ABEARING, STARTER ARMATURE

main28253-45020i198708-199106

NO.1

main90099-10113i198708-199106

NO.2

main90099-10143i198912-199106

NO.2

main90099-10144i198708-198912

COLD SPEC,NO.1

main90099-10196i198912-199106

COLD SPEC,NO.1

main90099-10197i198912-199106

NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i198708-198912

main28165-76070i198912-199106

COLD SPEC

28228AROLLER, STARTER CLUTCH

main28228-26040×5i198708-199106

28229ARETAINER, STARTER IDLE GEAR

main28229-26040i198708-198912

main28229-74070i198912-199106

COLD SPEC

28252GEAR, STARTER IDLE

main28251-15090i198708-198912

NO.2

main28254-45020i198708-198912

COLD SPEC,NO.1

main28254-74070i198912-199106

COLD SPEC,NO.1

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9009935024

main90099-35024

9011910466

main90119-10466

9017908146

main90179-08146

9338516014

main93385-16014

9411040800

main94110-40800

9451100800

main94511-00800

25 parts on this diagram · 4 diagrams in section
