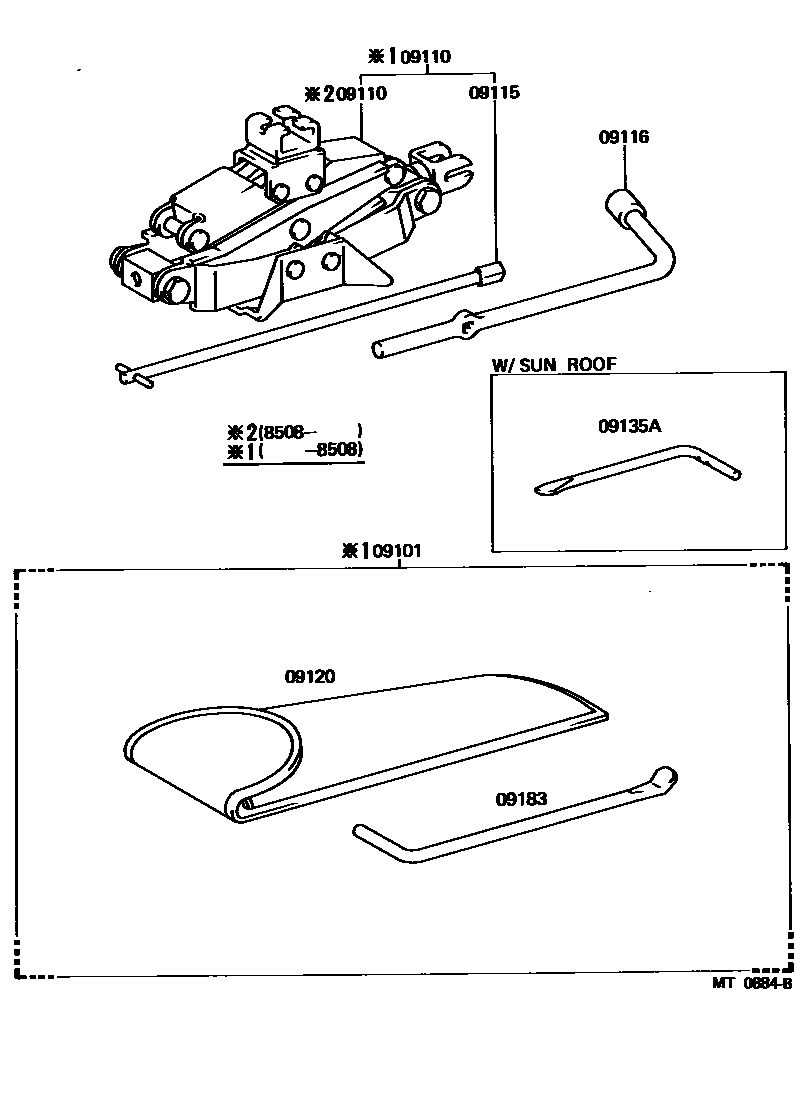

Toyota COROLLA CP — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-12040iAE86198308-198508

09110JACK ASSY

main09111-12080iAE86198508-198707

sub09111-22080

sub09113-44010

main09118-20011iAE86198308-198508

sub09111-20041

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020iAE86198508-198707

main09115-32010iAE86198312-198508

09116LEVER, JACK HANDLE

main09116-16010iAE86198308-198707

09120BAG, TOOL

main09120-12030iAE86198308-198707

sub09120-32010

09135ABIT, SCREW DRIVER

main09135-00012iAE86198308-198707

W/SUN ROOF

09183WRENCH, WHEEL CAP

main09183-00010iAE86198308-198707

7 parts on this diagram · 1 diagram in section
