Toyota COROLLA CP — SPEAKER

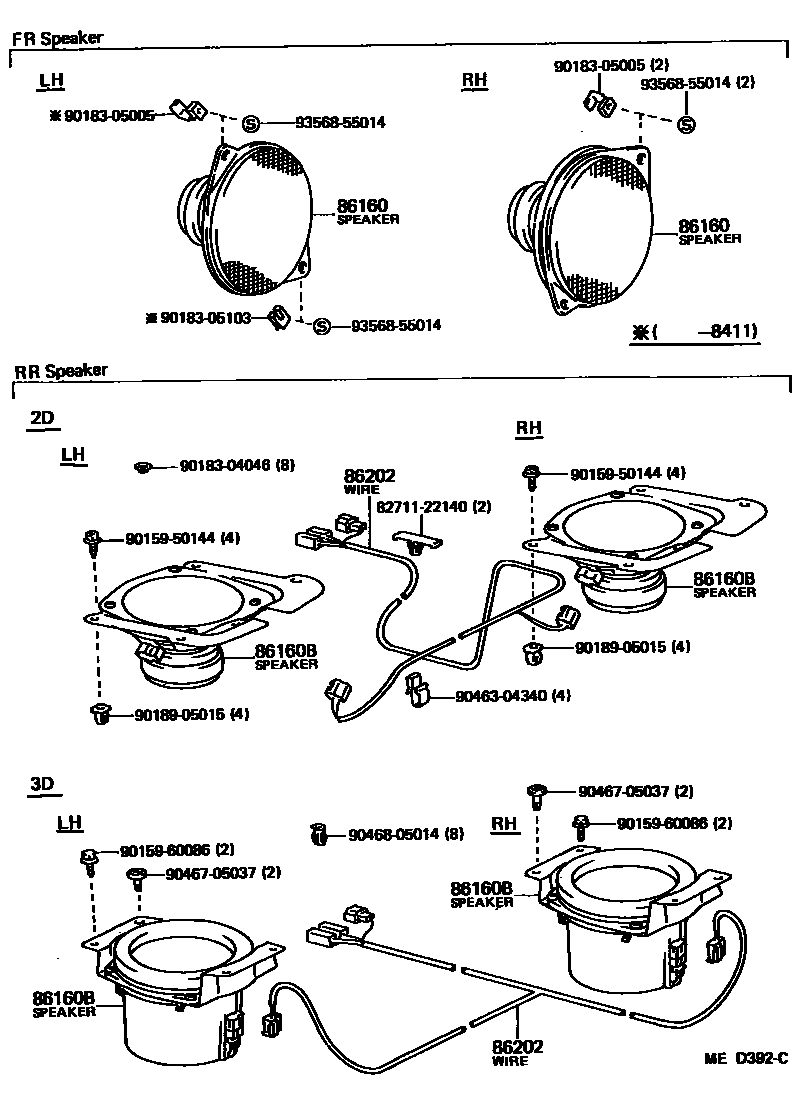

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-12170i198308-198602

main86160-12210i198602-198707

86160BSPEAKER ASSY, REAR

main86150-12040i198308-198508

RH

main86160-12140i198508-198707

main86160-12150i198308-198508

LH

main86160-12160i198308-198707

86202WIRE, SPEAKER, NO.1

main82561-12030i198308-198707

main82561-12040i198308-198508

8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22140

9015950144

main90159-50144

9015960086

main90159-60086

9018304046

main90183-04046

9018305005

main90183-05005

9018305103

main90183-05103

9018905015

main90189-05015

9046304340

main90463-04340

9046705037

main90467-05037

9046805014

main90468-05014

9356855014

main93568-55014

14 parts on this diagram · 1 diagram in section

SPEAKER for Toyota COROLLA CP

This section contains 14 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA CP. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, WIRE, SPEAKER, NO.1, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
