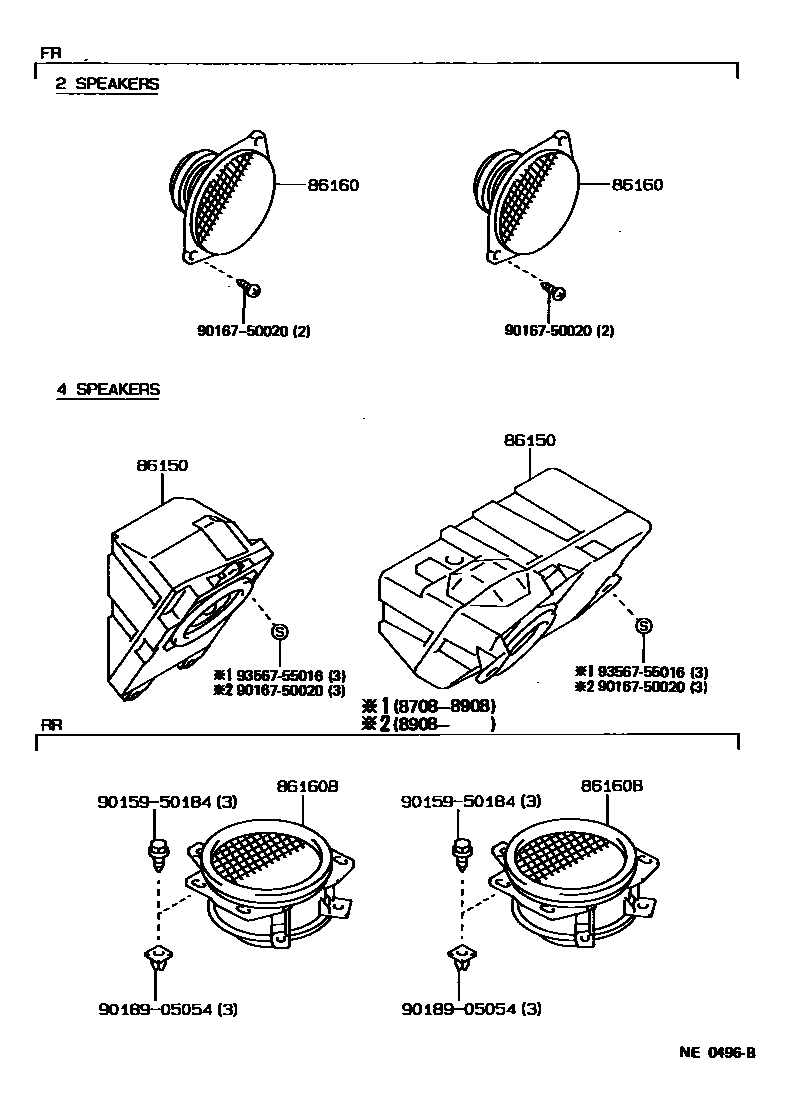

Toyota COROLLA CP — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-12060iAE92198708-198808

LH

main86150-12061iAE92198808-198904

LH

main86150-12062iAE92198904-198908

LH

main86150-12070iAE92198708-198808

RH

main86150-12071iAE92..CND198908-199106

RH

main86150-12120iAE92..USA198908-199106

LH

main86150-12130iAE92..USA198908-199106

RH

86160SPEAKER ASSY, FRONT NO.1

main86160-12280×2iAE92..CBR198708-198808

TEN

main86160-12290iAE92..DX198808-198905

PIONEER

86160BSPEAKER ASSY, REAR

main86160-12221×2iAE92198805-199106

9015950184

main90159-50184

9016750020

main90167-50020

9018905054

main90189-05054

9356755016

main93567-55016

7 parts on this diagram · 1 diagram in section
