Toyota COROLLA CP — SIDE MOULDING
75613MOULDING, FRONT FENDER, OUTSIDE RH
BLACK(041,136,147,3E6,8A8,148),BLACK
RED(2M9),RED/MAROON
RED(2T6),RED; RED(3E6),RED
BLACK,BLACK
SILVER-M(2M8),GRAY
RED(2T6),RED; RED(3E6),RED
SILVER-M(147),GRAY
GRAY-M(2C5),GRAY
RED,RED
SILVER-M,SILVER METALLIC
BLUE-M,BLUE METALLIC
BLUE-M,BLUE METALLIC
75614MOULDING, FRONT FENDER, OUTSIDE LH
BLACK(041,136,147,3E6,8A8,148),BLACK
RED(2M9),RED/MAROON
RED(2T6),RED; RED(3E6),RED
BLACK,BLACK
SILVER-M(2M8),GRAY
RED(2T6),RED; RED(3E6),RED
SILVER-M(2M8),GRAY
GRAY-M(2C5),GRAY
RED,RED
SILVER-M,SILVER METALLIC
BLUE-M,BLUE METALLIC
BLUE-M,BLUE METALLIC
75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH
75641CJOINT, QUARTER WINDOW MOULDING
RH,UPPER
RH,UPPER
LH,UPPER
LH,UPPER
RH,LOWER
RH,LOWER
LH,LOWER
LH,LOWER
75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH
75643MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH
75644MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH
75645MOULDING, QUARTER WINDOW, OUTSIDE REAR RH
75646MOULDING, QUARTER WINDOW, OUTSIDE REAR LH
75647MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH
75648MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH
75651MOULDING, QUARTER, OUTSIDE RH
BLACK(041,136,147,3E6,8A8,148),BLACK
RED(2M9),RED/MAROON
RED(2T6),RED; RED(3E6),RED
BLACK,BLACK
SILVER-M(2M8),GRAY
RED(2T6),RED; RED(3E6),RED
SILVER-M(2M8),GRAY
GRAY-M(2C5),GRAY
RED,RED
SILVER-M,SILVER METALLIC
BLUE-M,BLUE METALLIC
BLUE-M,BLUE METALLIC
75652MOULDING, QUARTER, OUTSIDE LH
BLACK(4E1,558,8A8,8B1);BLACK(038,147,3D6,3D7),BLACK
RED(2M9),RED/MAROON
RED(2T6),RED; RED(3E6),RED
BLACK,BLACK
SILVER-M(2M8),GRAY
RED(2T6),RED; RED(3E6),RED
SILVER-M(147),GRAY
GRAY-M(2C5),GRAY
RED,RED
SILVER-M,SILVER METALLIC
BLUE-M,BLUE METALLIC
BLUE-M,BLUE METALLIC
75716COVER, FRONT DOOR BELT MOULDING END, FRONT RH
75717COVER, FRONT DOOR BELT MOULDING END, FRONT LH
75718COVER, FRONT DOOR BELT MOULDING END, REAR RH
75719COVER, FRONT DOOR BELT MOULDING END, REAR LH
75721MOULDING, FRONT DOOR BELT, RH
75722MOULDING, FRONT DOOR BELT, LH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
BLACK(041,136,147,3E6,8A8,148),BLACK
RED(2M9),RED/MAROON
RED(2T6),RED; RED(3E6),RED
BLACK,BLACK
SILVER-M(2M8),GRAY
RED(2T6),RED; RED(3E6),RED
SILVER-M(2M8),GRAY
GRAY-M(2C5),GRAY
RED,RED
SILVER-M,SILVER METALLIC
BLUE-M,BLUE METALLIC
BLUE-M,BLUE METALLIC
75732AMOULDING, FRONT DOOR, OUTSIDE LH
BLACK(041,136,147,3E6,8A8,148),BLACK
RED(2M9),RED/MAROON
RED(2T6),RED; RED(3E6),RED
BLACK,BLACK
SILVER-M(2M8),GRAY
RED(2T6),RED; RED(3E6),RED
SILVER-M(2M8),GRAY
GRAY-M(2C5),GRAY
RED,RED
SILVER-M,SILVER METALLIC
BLUE-M,BLUE METALLIC
BLUE-M,BLUE METALLIC
75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75757ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, REAR LH
75759ACOVER, FRONT DOOR WINDOW FRAME MOULDING JOINT, REAR RH
75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
75951BCLIP (FOR DOOR SCUFF PLATE)
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
75953PLATE, FRONT DOOR SCUFF, INSIDE RH
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
75954PLATE, FRONT DOOR SCUFF, INSIDE LH
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
9017605003
main90176-05003
9018904049
main90189-04049
9354054008
main93540-54008
9356054014
main93560-54014

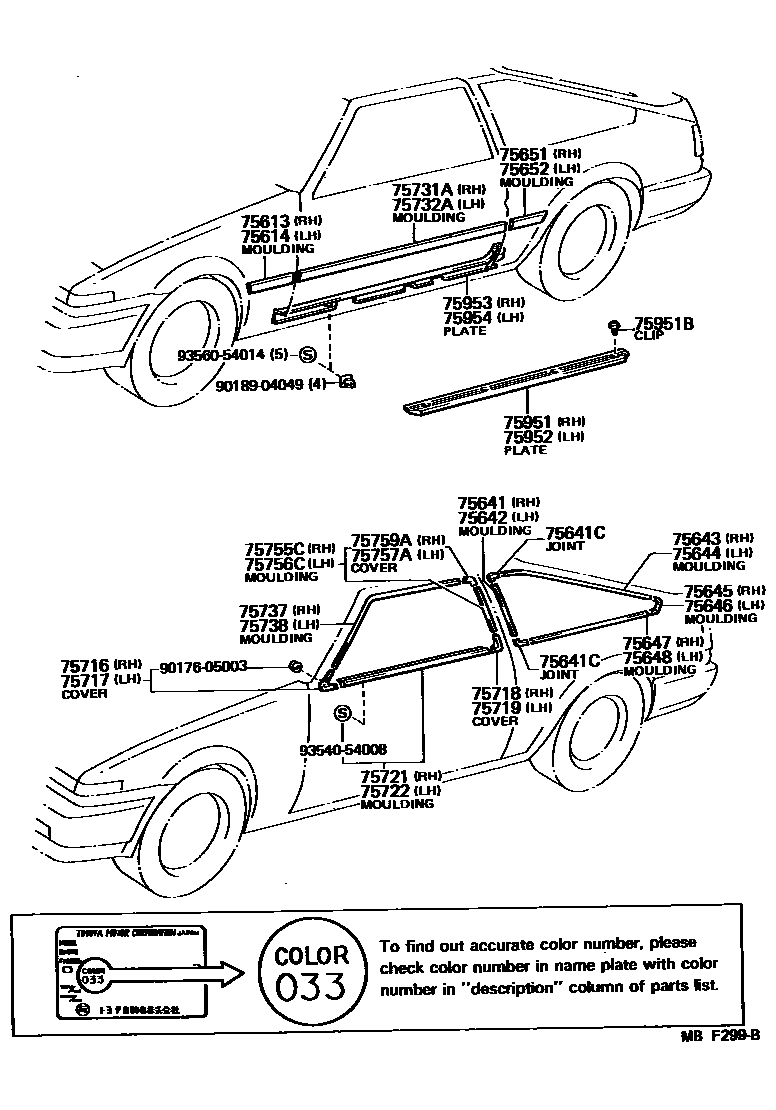

36 parts on this diagram · 2 diagrams in section
SIDE MOULDING for Toyota COROLLA CP
This section contains 49 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA CP. Key components include: MOULDING, FRONT FENDER, OUTSIDE RH, MOULDING, FRONT FENDER, OUTSIDE LH, MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH, JOINT, QUARTER WINDOW MOULDING, MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH.
