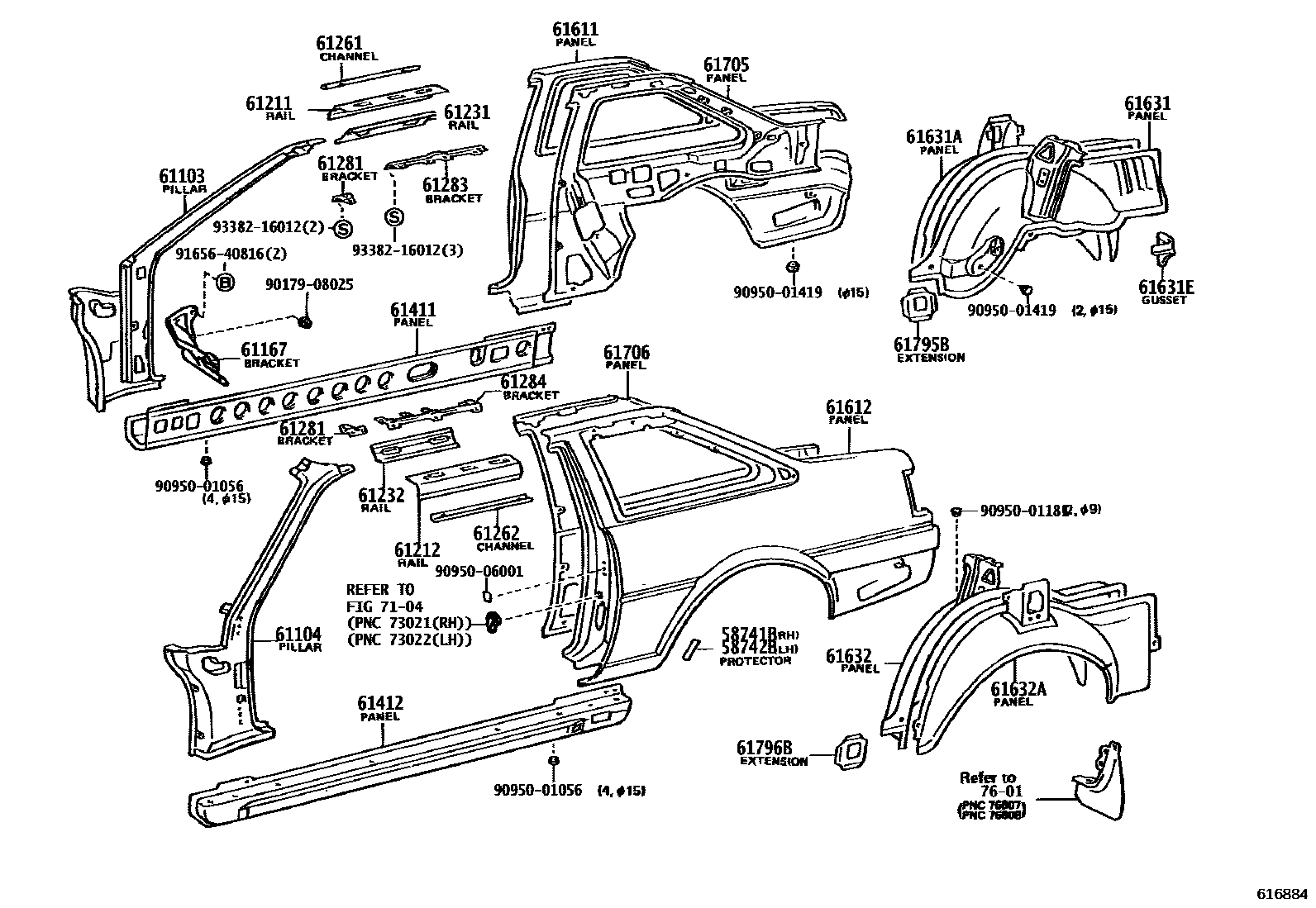

Toyota COROLLA CP — SIDE MEMBER
58741BPROTECTOR, QUARTER PANEL, RH
58742BPROTECTOR, QUARTER PANEL, LH
61103PILLAR SUB-ASSY, FRONT BODY, RH
W/*DM-ELECTRONIC CONTROL TYPE
61104PILLAR SUB-ASSY, FRONT BODY, LH
W/*DM-ELECTRONIC CONTROL TYPE
61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61631PANEL, QUARTER WHEEL HOUSE, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH
61632PANEL, QUARTER WHEEL HOUSE, LH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61795BEXTENSION, QUARTER WHEEL HOUSE, RH
61796BEXTENSION, QUARTER WHEEL HOUSE, LH
7104SEAT BELT & CHILD RESTRAINT SEAT
7601MUDGUARD & SPOILER
9017908025
main90179-08025
9095001056
main90950-01056
9095001181
main90950-01181
9095001419
main90950-01419
9095006001
main90950-06001
9165640816
main91656-40816
9338216012
main93382-16012
36 parts on this diagram · 2 diagrams in section
SIDE MEMBER for Toyota COROLLA CP
This section contains 37 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA CP. Key components include: CARRIER SUB-ASSY, JACK, PROTECTOR, QUARTER PANEL, RH, PROTECTOR, QUARTER PANEL, LH, PILLAR SUB-ASSY, FRONT BODY, RH, PILLAR SUB-ASSY, FRONT BODY, LH.
