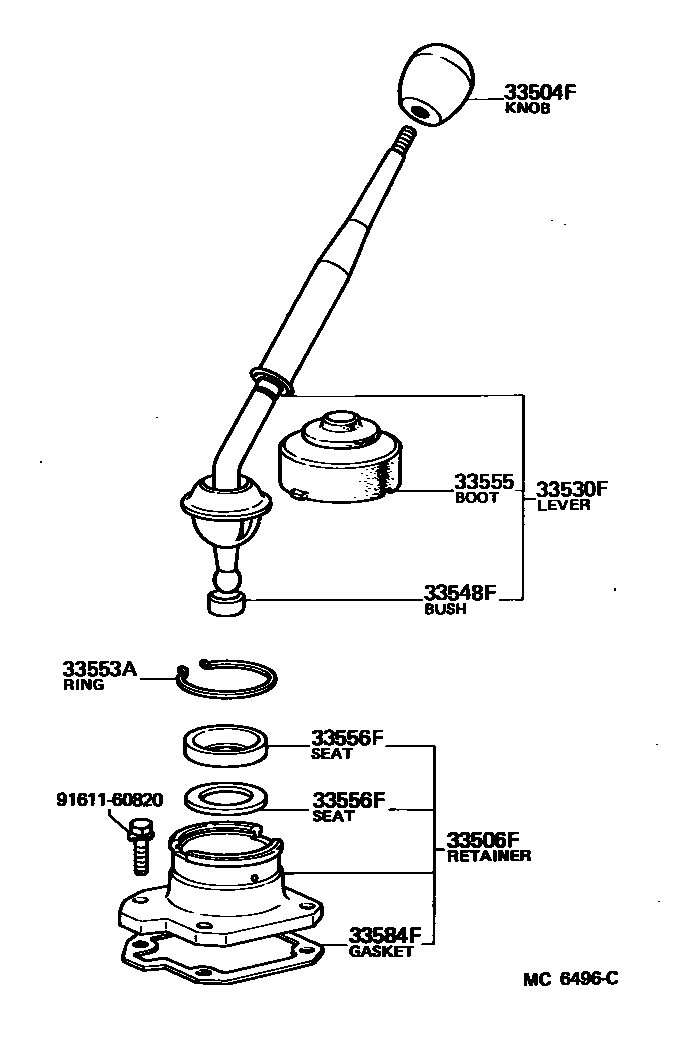

Toyota COROLLA CP — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-10020-01i198308-198401

BLACK,BLACK

main33504-12150-01i198408-198707

LEATHER,BLACK,BLACK

main33504-14070-01i198401-198707

BLACK,BLACK

main33504-24010-01i198308-198707

BLACK,BLACK

main33542-24030-01i198308-198508

BLACK,BLACK

main33542-32050-01i198508-198707

BLACK,BLACK

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-14021i198308-198707

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12460i198308-198707

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-14010i198308-198707

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90521-49003i198308-198707

33555BOOT, SHIFT LEVER

main33555-12080i198308-198707

main33555-12090i198308-198707

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-14010i198308-198707

T=13.5

main33556-14020i198308-198707

T=3.0

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-20010i198308-198707

9161160820

main91611-60820

9 parts on this diagram · 3 diagrams in section

SHIFT LEVER & RETAINER for Toyota COROLLA CP

This section contains 54 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota COROLLA CP. Key components include: SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT), BUSH (FOR FLOOR SHIFT CONTROL SHAFT), PLATE SUB-ASSY, SHIFT LEVER, COLLAR (FOR FLOOR SHIFT SETTING), LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT).
