Toyota COROLLA CP — ROOF SIDE VENTILATOR

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-12040i198308-198707

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62860-12050i198308-198707

62930BDUCT ASSY, QUARTER VENT, RH

main62903-12060i198308-198707

62940BDUCT ASSY, QUARTER VENT, LH

main62904-12070i198308-198707

62941ARETAINER, QUARTER VENT DUCT

main62941-12100×2i198308-198707

9015940085

main90159-40085

9016840057

main90168-40057

9018904022

main90189-04022

9018904070

main90189-04070

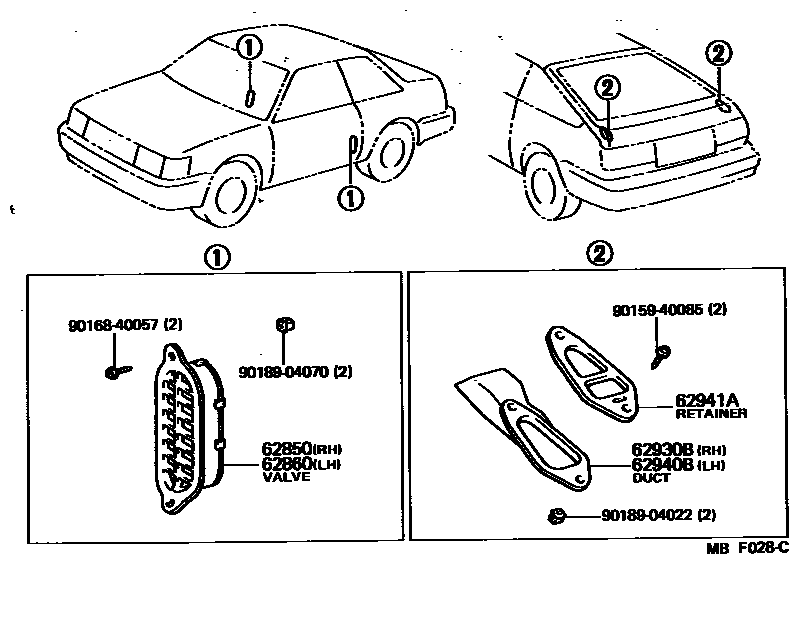

9 parts on this diagram · 1 diagram in section

ROOF SIDE VENTILATOR for Toyota COROLLA CP

This section contains 9 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota COROLLA CP. Key components include: VALVE ASSY, ROOM PRESSURE RELIEF, RH, VALVE ASSY, ROOM PRESSURE RELIEF, LH, DUCT ASSY, QUARTER VENT, RH, DUCT ASSY, QUARTER VENT, LH, RETAINER, QUARTER VENT DUCT.
