Toyota COROLLA CP — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

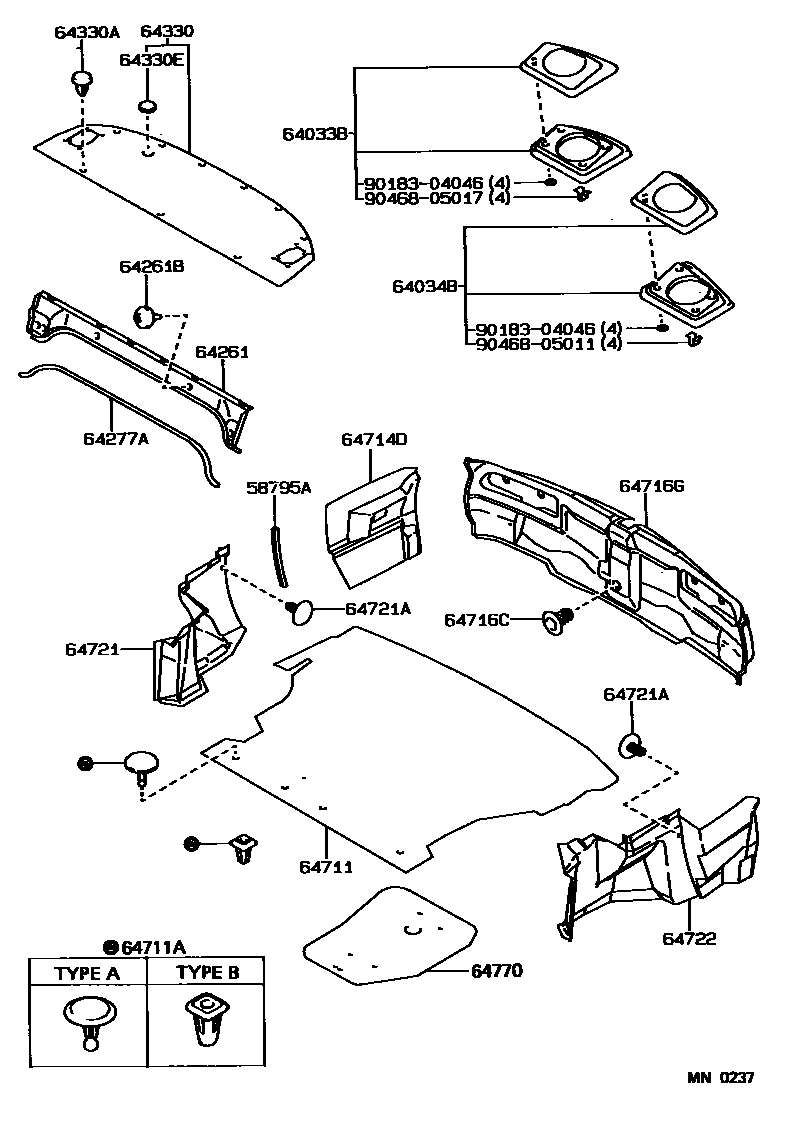

Parts diagram
58795ATRIM, JACK HOUSE OPENING
main58795-16020i198708-199106
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-12090-02i198708-198908
RED,TRIM3#
main64033-12090-03i198912-199106
SHADOW GRAY,TRIM1#
main64033-12090-04i198912-199106
DARK BLUE,TRIM8#
main64033-12090-05i198708-198908
DARK BEIGE,TRIM4#
main64033-12090-06i198912-199106
BROWN,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64034-12020-02i198708-198908
RED,TRIM3#
main64034-12020-03i198912-199106
SHADOW GRAY,TRIM1#
main64034-12020-04i198708-198908
DARK BLUE,TRIM8#
main64034-12020-05i198708-198908
DARK BEIGE,TRIM4#
main64034-12020-06i198912-199106
BROWN,TRIM4#
64261GARNISH, ROOM PARTITION
main64261-12050-02i198708-199106
RED,TRIM3#
main64261-12050-03i198708-199106
SHADOW GRAY,TRIM1#
main64261-12050-04i198708-199106
DARK BLUE,TRIM8#
main64261-12050-05i198708-198908
DARK BEIGE,TRIM4#
main64261-12050-06i198908-199106
BROWN,TRIM4#
64261BCUSHION(FOR ROOM PARTITION GARNISH)
main90541-09060×2i198708-199106
64277AMOULDING, ROOM PARTITION TRIM
main64277-12050-02i198708-199106
RED,TRIM3#
main64277-12050-03i198708-199106
SHADOW GRAY,TRIM1#
main64277-12050-04i198708-199106
DARK BLUE,TRIM8#
main64277-12050-05i198708-198908
DARK BEIGE,TRIM4#
main64277-12050-06i198908-199106
BROWN,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-1A110-02i198708-199008
RED,TRIM3#
main64330-1A110-03i199008-199106
SHADOW GRAY,TRIM1#
main64330-1A110-04i199008-199106
DARK BLUE,TRIM8#
main64330-1A110-05i198708-198908
DARK BEIGE,TRIM4#
main64330-1A110-06i199008-199106
BROWN,TRIM4#
main64330-1A120-02i199008-199106
RED,TRIM3#
main64330-1A120-03i198708-199008
W(SPLIT FOLD DOWN REAR SEAT),SHADOW GRAY,TRIM1#
main64330-1A120-04i199008-199106
DARK BLUE,TRIM8#
main64330-1A120-05i198708-198908
W(SPLIT FOLD DOWN REAR SEAT),DARK BEIGE,TRIM4#
main64330-1A120-06i198908-199008
W(SPLIT FOLD DOWN REAR SEAT),BROWN,TRIM4#
main64330-1A130-02i198708-198908
W(REAR SPEAKERS),RED,TRIM3#
main64330-1A130-03i198908-199008
W(REAR SPEAKERS),SHADOW GRAY,TRIM1#
main64330-1A130-04i198908-199008
W(REAR SPEAKERS),DARK BLUE,TRIM8#
main64330-1A130-05i198708-198908
W(REAR SPEAKERS),DARK BEIGE,TRIM4#
main64330-1A130-06i198908-199008
W(REAR SPEAKERS),BROWN,TRIM4#
main64330-1A250-02i198708-198908
W(REAR SPOILER),RED,TRIM3#
main64330-1A250-03i198912-199008
W(REAR SPOILER & REAR SPEAKERS),SHADOW GRAY,TRIM1#
main64330-1A250-04i198708-198908
W(REAR SPOILER),DARK BLUE,TRIM8#
main64330-1A250-06i199008-199106
W(REAR SPEAKER & REAR SPOILER),BROWN,TRIM4#
main64330-1A350-03i198908-199106
W(REAR SPOILER),SHADOW GRAY,TRIM1#
main64330-1A350-04i198908-199106
W(REAR SPOILER),DARK BLUE,TRIM8#
main64330-1A350-06i198908-199106
W(REAR SPOILER),BROWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08046-03×3i198708-199009
GRAY,TRIM1#
main90467-08046-05×3i198708-198809
DARK BEIGE,TRIM4#
main90467-08046-24×3i198708-198807
DARK BLUE,TRIM8#
main90467-08046-32×3i198708-199106
RED,TRIM3#
main90467-08046-B1×3i199009-199106
SHADOW GRAY,TRIM1#
main90467-08046-E0×3i198908-199106
BROWN,TRIM4#
main90467-08046-E1×3i198809-198908
DARK BEIGE,TRIM4#
main90467-08046-J0×3i198807-199106
LIGHT BLUE,TRIM8#
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
main90950-01436-13×2i198708-199008
GRAY,TRIM1#
main90950-01436-16×2i198908-198909
BROWN,TRIM4#
main90950-01436-24×2i198708-198909
DARK BLUE,TRIM8#
main90950-01436-25×2i198708-198908
DARK BEIGE,TRIM4#
main90950-01436-32×2i198708-199008
RED,TRIM3#
main90950-01436-B1×2i199009-199106
SHADOW GRAY,TRIM1#
main90950-01436-E1×2i198909-199008
BROWN,TRIM4#
main90950-01436-J0×2i199008-199106
DARK BLUE,TRIM8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-12230-03i198708-199106
GRAY,TRIM1#,3#,4#,8#; GRAY,TRIM1#,4#,8#
main64711-12240-03i198708-199106
GRAY,TRIM1#,3#,8#; W(SPLIT FOLD DOWN REAR SEAT),GRAY,TRIM1#,3#,4#,8#; W(SPLIT FOLD DOWN REAR SEAT),GRAY,TRIM1#,3#,8#
main64711-12280-03i198708-199106
GRAY,TRIM1#,3#,4#,8#; GRAY,TRIM1#,3#,8#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
main90467-07079-13×4i198708-198809
GARY,TRIM1#,3#,4#,8#,MALE; GARY,TRIM1#,3#,8#,MALE
main90467-07079-B3×4i198809-199106
LIGHT GRAY,TRIM1#,3#,4#,8#,MALE; LIGHT GRAY,TRIM1#,3#,8#,MALE
main90467-10023×4i198708-199106
FEMALE
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64714-12110-03i198708-199106
GRAY,TRIM1#,3#,4#,8#; GRAY,TRIM1#,3#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05014-23×11i198708-198809
GRAY,TRIM1#,3#,4#,8#; GRAY,TRIM1#,3#,8#
main90467-05014-B0×11i198809-199106
LIGHT GRAY,TRIM1#,3#,4#,8#; LIGHT GRAY,TRIM1#,3#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-12150-03i198708-199106
GRAY,TRIM1#,3#,4#,8#; GRAY,TRIM1#,3#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-12060-03i198708-199106
GRAY,TRIM1#,3#,4#,8#; GRAY,TRIM1#,3#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07042-03×2i198708-198807
GRAY,TRIM1#,3#,4#,8#; GRAY,TRIM1#,3#,8#
main90467-07042-B0×2i198807-199106
LIGHT GRAY,TRIM1#,3#,4#,8#; LIGHT GRAY,TRIM1#,3#,8#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-12070-03i198708-199106
GRAY,TRIM1#,3#,4#,8#; GRAY,TRIM1#,3#,8#
64770COVER ASSY, SPARE WHEEL
main64770-12100i198708-199106
9018304046
main90183-04046
9046805011
main90468-05011
9046805017
main90468-05017

21 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota COROLLA CP

This section contains 21 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota COROLLA CP. Key components include: TRIM, JACK HOUSE OPENING, GRILLE SUB-ASSY, REAR SPEAKER, RH, GRILLE SUB-ASSY, REAR SPEAKER, LH, GARNISH, ROOM PARTITION, CUSHION(FOR ROOM PARTITION GARNISH).
