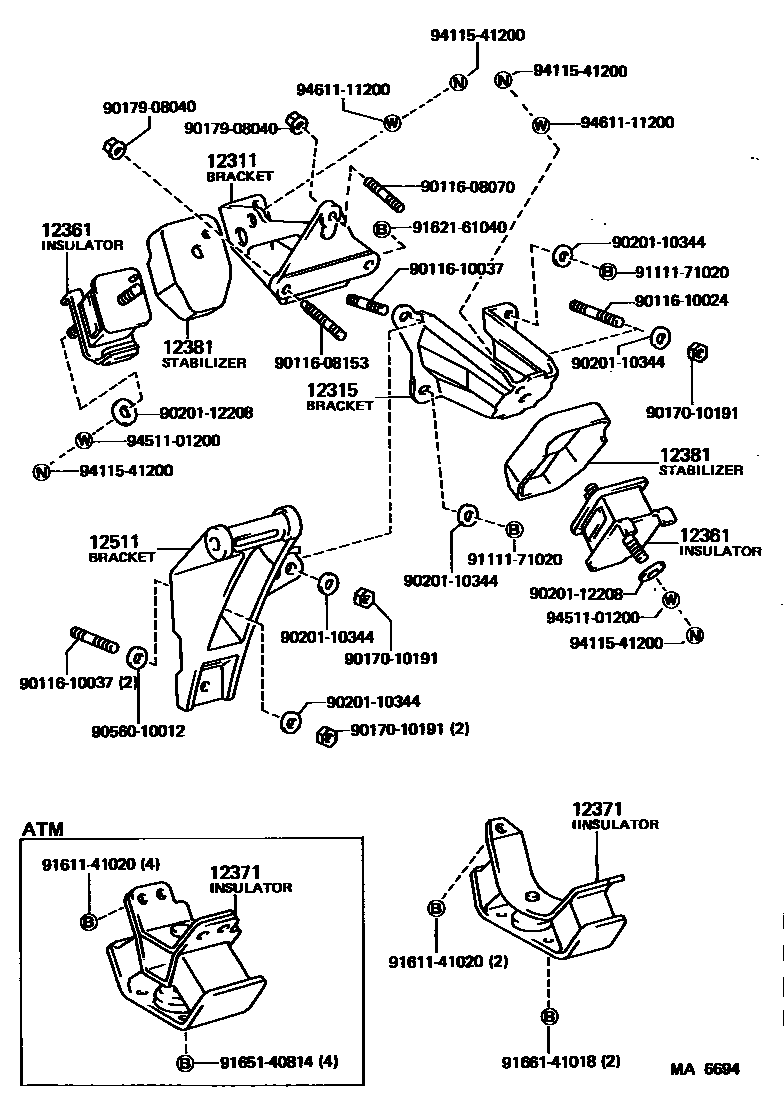

Toyota COROLLA CP — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12381STABILIZER, ENGINE MOUNTING
12511BRACKET, ALTERNATOR, NO.1
9011608070
main90116-08070
9011608153
main90116-08153
9011610024
main90116-10024
9011610037
main90116-10037
9017010191
main90170-10191
9017908040
main90179-08040
9020110344
main90201-10344
9020112208
main90201-12208
9056010012
main90560-10012
9111171020
main91111-71020
9161141020
main91611-41020
9162161040
main91621-61040
9165140814
main91651-40814
9166141018
main91661-41018
9411541200
main94115-41200
9451101200
main94511-01200
9461111200
main94611-11200
23 parts on this diagram · 2 diagrams in section
MOUNTING for Toyota COROLLA CP
This section contains 27 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA CP. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
