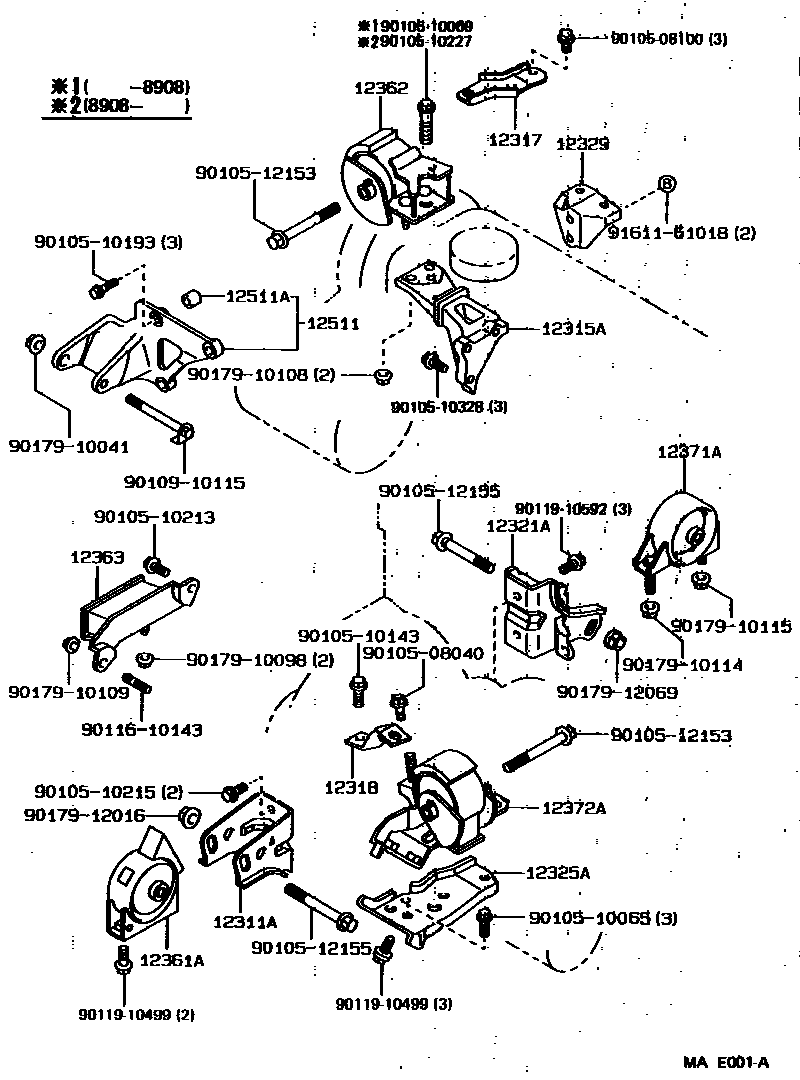

Toyota COROLLA CP — MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12317STAY, ENGINE MOUNTING, RH
12318STAY, ENGINE MOUNTING, LH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12329SUPPORT, ENGINE MOUNTING STAY
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12363INSULATOR, ENGINE MOUNTING, CENTER
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12511BRACKET, ALTERNATOR, NO.1
12511ABUSH, ALTERNATOR BRACKET
9010508040
main90105-08040
9010508100
main90105-08100
9010510065
main90105-10065
9010510069
main90105-10069
9010510143
main90105-10143
9010510193
main90105-10193
9010510213
main90105-10213
9010510215
main90105-10215
9010510227
main90105-10227
9010510328
main90105-10328
9010512153
main90105-12153
9010512155
main90105-12155
9010910115
main90109-10115
9011610143
main90116-10143
9011910499
main90119-10499
9011910592
main90119-10592
9017910041
main90179-10041
9017910098
main90179-10098
9017910108
main90179-10108
9017910109
main90179-10109
9017910114
main90179-10114
9017910115
main90179-10115
9017912016
main90179-12016
9017912069
main90179-12069
9161161018
main91611-61018
39 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota COROLLA CP
This section contains 47 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA CP. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, NO.2 RH, STAY, ENGINE MOUNTING, RH, STAY, ENGINE MOUNTING, LH.
