Toyota COROLLA CP — MIRROR

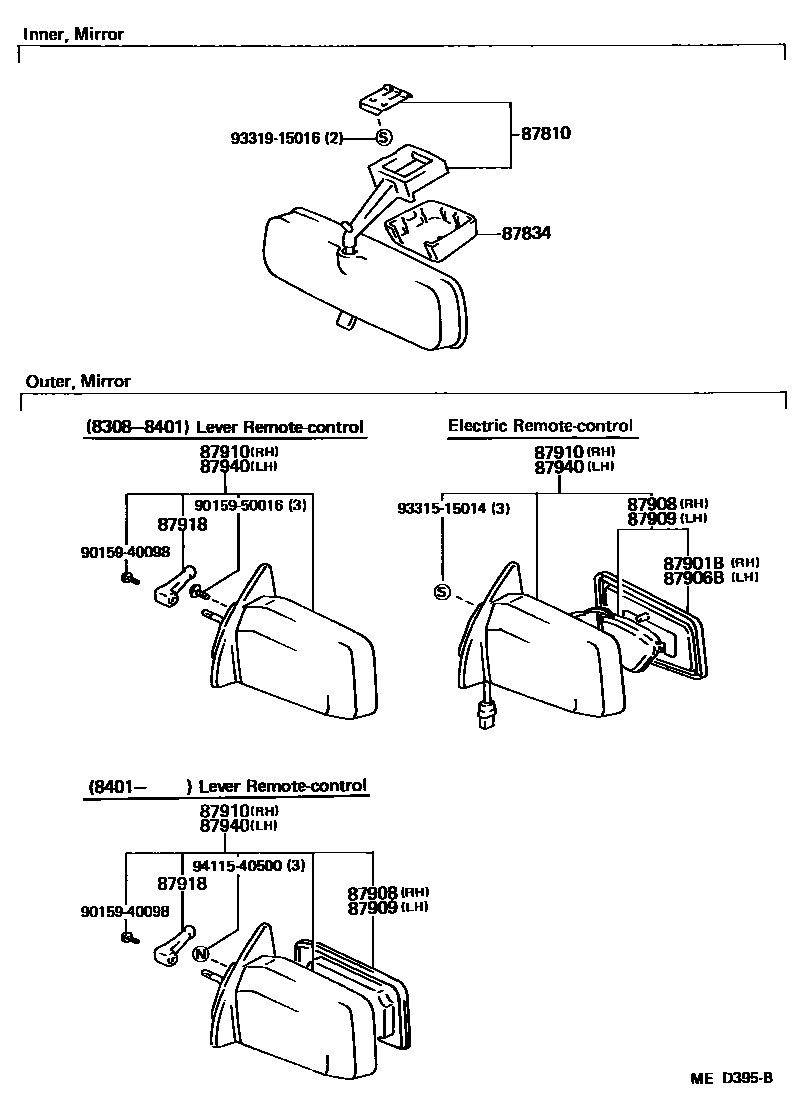

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-12200-01i198508-198509
BLACK,BLACK
main87810-12200-02i198308-198508
MAROON,RED/MAROON
main87810-12200-03i198408-198508
GRAY,GRAY
main87810-12200-04i198308-198509
BLUE,BLUE
main87810-12200-12i198508-198509
MAROON,MAROON
main87810-20200-01i198509-198707
BLACK,BLACK
main87810-20200-04i198509-198707
BLUE,BLUE
main87810-20200-12i198509-198707
MAROON,MAROON
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20080-02i198308-198508
MAROON,RED/MAROON
main87834-20080-03i198408-198508
GRAY,GRAY
main87834-20080-11i198508-198707
BLACK,BLACK
main87834-20080-12i198508-198707
MAROON,MAROON
main87834-20080-24i198308-198707
BLUE,BLUE
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-1A040i198403-198707
ELECTRIC TYPE
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-1A120i198403-198707
ELECTRIC TYPE
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-12070i198308-198403
ELECTRIC TYPE
main87908-12120i198403-198707
ELECTRIC TYPE
main87908-16060i198401-198707
LEVER TYPE
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87909-12060i198308-198403
ELECTRIC TYPE
main87909-12110i198403-198707
ELECTRIC TYPE
main87909-16050i198401-198707
LEVER TYPE
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-12680i198308-198403
ELECTRIC TYPE
main87910-12690i198308-198401
LEVER TYPE
main87910-1A030i198401-198707
LEVER TYPE
main87910-1A040i198403-198707
ELECTRIC TYPE
87918KNOB, CONTROL OUTER MIRROR
main87918-12030i198308-198401
LEVER TYPE
main87918-12070i198401-198707
LEVER TYPE
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-12760i198308-198403
ELECTRIC TYPE
main87940-12770i198308-198401
LEVER TYPE
main87940-1A110i198401-198707
LEVER TYPE
main87940-1A120i198403-198707
ELECTRIC TYPE
9015940098
main90159-40098
9015950016
main90159-50016
9331515014
main93315-15014
9331915016
main93319-15016
9411540500
main94115-40500

14 parts on this diagram · 1 diagram in section

MIRROR for Toyota COROLLA CP

This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota COROLLA CP. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, ACTUATOR ASSY, OUTER MIRROR, RH.
