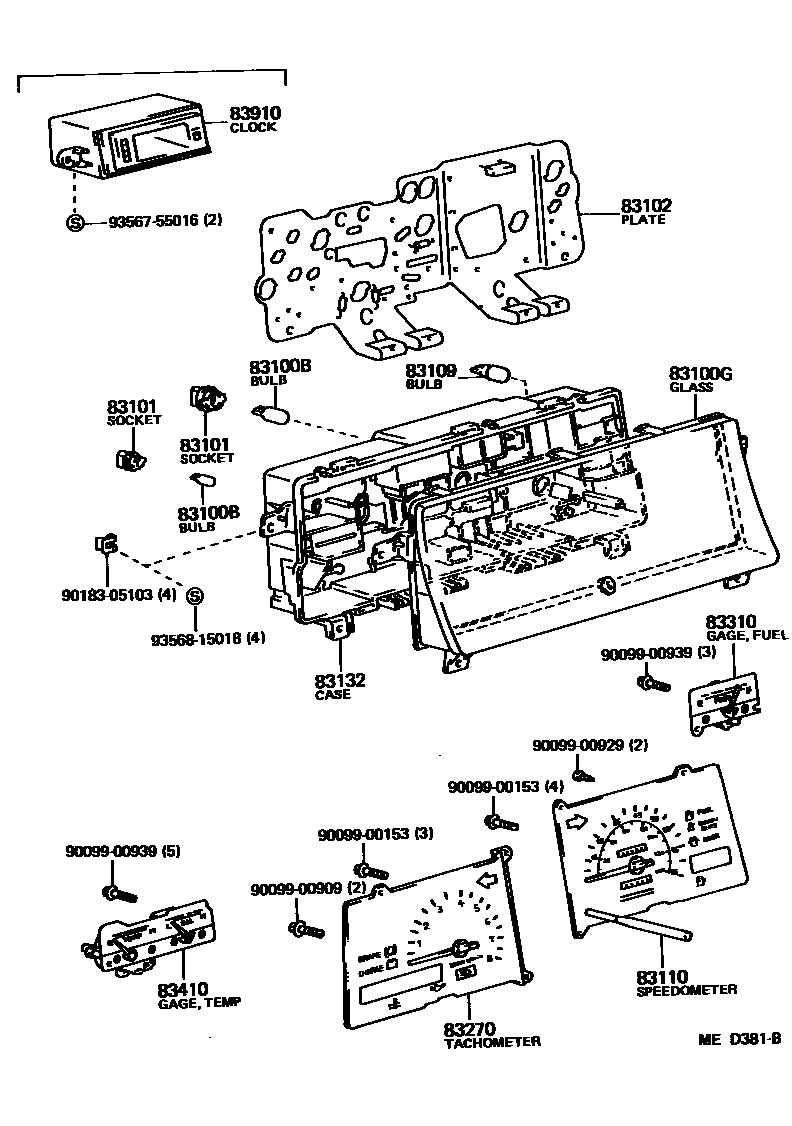

Toyota COROLLA CP — METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×5iAE86198308-198707

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×8iAE86198308-198707

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83133-12730iAE86198308-198707

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×8iAE86198308-198707

BULB=12V 3.4W

main83101-14040×5iAE86198308-198707

BULB=12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1E330iAE86..(DX,SR5)..USA198509-198707

W/*CRC

main83247-1E610iAE86..GTS198408-198707

main83247-1E810iAE86..(DX,SR5)..USA198509-198707

83109BULB, COMBINATION METER, NO.2

main83109-12010×4iAE86198508-198707

12V 3.4W,BLUE CAP,12V 3.4W

main83109-24030×4iAE86..GTS198408-198508

12V3.4W W(GREEN CAP),12V 3.4W

83110SPEEDOMETER ASSY

main83110-1A310iAE86..(DX,SR5)..USA198308-198508

main83110-1A311iAE86..(DX,SR5)..USA198508-198509

main83110-1A320iAE86..SR5..CND198308-198508

main83110-1A321iAE86..SR5..CND198508-198509

main83110-1A322iAE86..SR5..CND198509-198707

main83110-1A660iAE86..GTS..USA198408-198508

main83110-1A661iAE86..GTS..USA198508-198707

main83110-1A670iAE86..GTS..CND198408-198508

main83110-1A671iAE86..GTS..CND198508-198707

main83110-1A790iAE86..(DX,SR5)..USA198509-198707

83132CASE, COMBINATION METER

main83132-12690iAE86..GTS198408-198707

sub83132-12650

main83132-12710iAE86198308-198408

83270TACHOMETER ASSY, ENGINE

main83242-12850iAE86..SR5..CND198308-198508

main83242-12851iAE86..SR5..CND198508-198707

main83242-1A050iAE86..(DX,SR5)..USA198308-198508

main83242-1A051iAE86..(DX,SR5)..USA198508-198707

main83242-1A090iAE86..GTS..USA198408-198508

main83242-1A091iAE86..GTS..USA198508-198707

main83242-1A110iAE86..GTS..CND198408-198508

main83242-1A111iAE86..GTS..CND198508-198707

83310GAGE ASSY, FUEL RECEIVER

main83243-12690iAE86198308-198508

main83243-12691iAE86198508-198707

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1A110iAE86198308-198508

main83244-1A111iAE86198508-198707

83910CLOCK ASSY

main83910-12350iAE86198308-198505

main83910-12351iAE86198505-198508

9009900153

main90099-00153

9009900909

main90099-00909

9009900929

main90099-00929

9009900939

main90099-00939

9018305103

main90183-05103

9356755016

main93567-55016

9356815018

main93568-15018

18 parts on this diagram · 2 diagrams in section
