Toyota COROLLA CP — MAT & CARPET

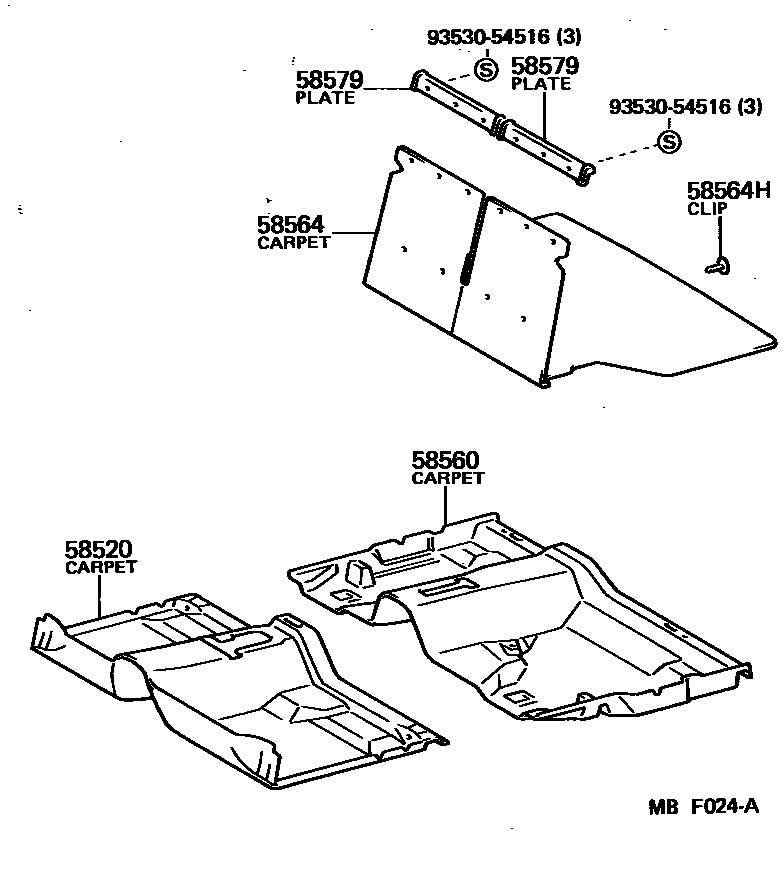

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-12660-01i198508-198707
BLACK,BLACK
main58510-12660-02i198308-198508
DEEP MAROON,RED/MAROON
main58510-12660-03i198408-198508
GRAY,GRAY
main58510-12660-04i198308-198508
BLUE,BLUE
main58510-12660-12i198508-198707
MAROON,MAROON
main58510-12660-14i198508-198707
BLUE,BLUE
main58510-12710-01i198508-198707
COLD SPEC,BLACK,BLACK
main58510-12710-02i198308-198508
COLD SPEC,DEEP MAROON,RED/MAROON
main58510-12710-03i198408-198508
COLD SPEC,GRAY,GRAY
main58510-12710-04i198308-198508
COLD SPEC,BLUE,BLUE
main58510-12710-12i198508-198707
COLD SPEC,MAROON,MAROON
main58510-12710-14i198508-198707
COLD SPEC,BLUE,BLUE
main58510-1A120-01i198508-198707
BLACK,BLACK
main58510-1A120-04i198508-198707
BLUE,BLUE
main58510-1A130-01i198508-198707
COLD SPEC,BLACK,BLACK
main58510-1A130-04i198508-198707
COLD SPEC,BLUE,BLUE
58560CARPET ASSY, FLOOR, REAR
main58540-12530-01i198508-198707
BLACK,BLACK
main58540-12530-02i198308-198508
DEEP MAROON,RED/MAROON
main58540-12530-03i198408-198508
GRAY,GRAY
main58540-12530-04i198308-198508
BLUE,BLUE
main58540-12530-12i198508-198707
MAROON,MAROON
main58540-12530-14i198508-198707
BLUE,BLUE
main58540-12700-01i198508-198707
BLACK,BLACK
main58540-12700-04i198508-198707
BLUE,BLUE
58564CARPET, REAR FLOOR
main58570-12170-01i198508-198707
BLACK,BLACK
main58570-12170-02i198308-198508
DEEP MAROON,RED/MAROON
main58570-12170-03i198408-198508
GRAY,GRAY
main58570-12170-04i198308-198508
BLUE,BLUE
main58570-12170-12i198508-198707
MAROON,MAROON
main58570-12170-14i198508-198707
BLUE,BLUE
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-06016-01×4i198508-198707
BLACK,BLACK
main90467-06016-04×4i198508-198707
BLUE,BLUE
main90467-06016-22×4i198308-198508
DEEP MAROON,RED/MAROON
main90467-06016-32×4i198508-198707
MAROON,MAROON
main90467-06016-33×4i198408-198508
GRAY,GRAY
58579SET PLATE, REAR FLOOR CARPET, NO.1
main58573-12030-01×2i198508-198707
BLACK,BLACK
main58573-12030-02×2i198308-198508
DEEP MAROON,RED/MAROON
main58573-12030-03×2i198408-198508
GRAY,GRAY
main58573-12030-04×2i198308-198508
BLUE,BLUE
main58573-12030-12×2i198508-198707
MAROON,MAROON
9353054516
main93530-54516

6 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota COROLLA CP

This section contains 6 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA CP. Key components include: CARPET ASSY, FRONT FLOOR, CARPET ASSY, FLOOR, REAR, CARPET, REAR FLOOR, CLIP(FOR REAR FLOOR CARPET), SET PLATE, REAR FLOOR CARPET, NO.1.
