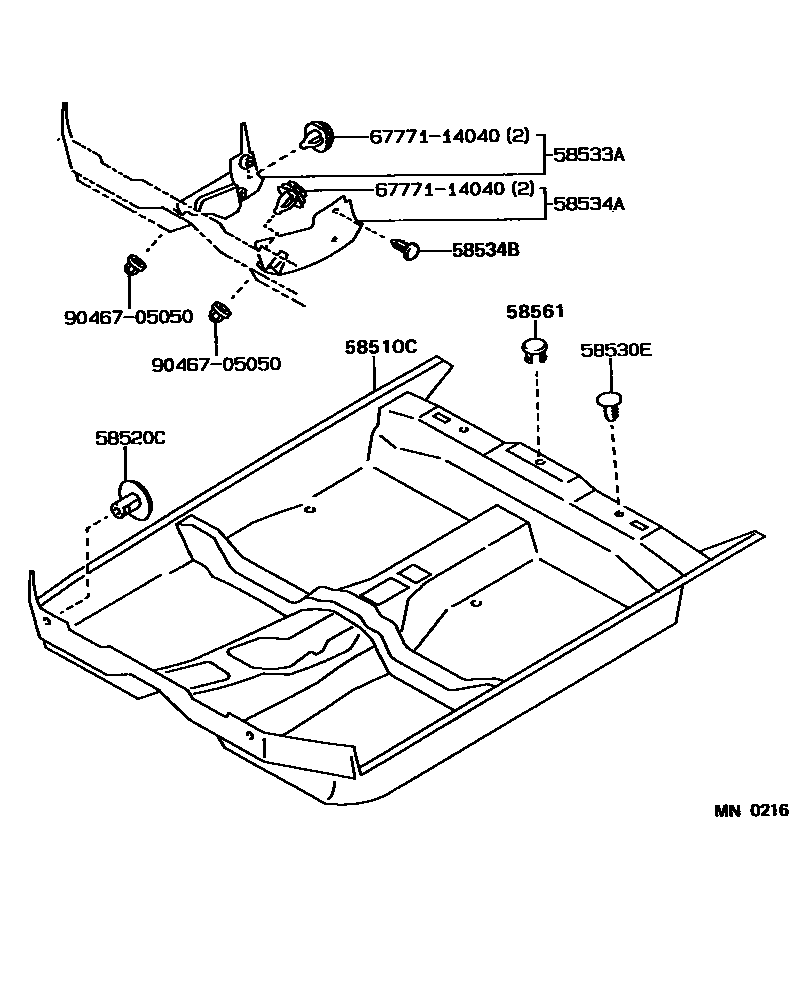

Toyota COROLLA CP — MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
COLD SPEC,RED,TRIM3#
COLD SPEC,SHADOW GRAY,TRIM1#
COLD SPEC,DARK BLUE,TRIM8#
COLD SPEC,DARK BEIGE,TRIM4#; DARK BEIGE,TRIM4#
COLD SPEC,RED,TRIM3#
SHADOW GRAY,TRIM1#
COLD SPEC,DARK BLUE,TRIM8#
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
BROWN,TRIM4#
COLD SPEC,RED,TRIM3#
COLD SPEC,SHADOW GRAY,TRIM1#
COLD SPEC,DARK BLUE,TRIM8#
COLD SPEC,BROWN,TRIM4#
RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
COLD SPEC,RED,TRIM3#
COLD SPEC,SHADOW GRAY,TRIM1#
COLD SPEC,DARK BLUE,TRIM8#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM1#,3#,4#,8#; BLACK,TRIM1#,3#,8#
BLACK,TRIM1#,3#,8#; BLACK,TRIM3#,8#
58530ECLIP(FOR FRONT FLOOR REAR CARPET)
main90467-06049-01×2iAE92..CBR;AE92..SR5..USA..EFI; AE92..CND..EFI;AE92..GTS..USA; AE92..DX..EFI198708-199106
BLACK,TRIM1#,3#,4#,8#; BLACK,TRIM1#,3#,8#; BLACK,TRIM1#,4#,8#
58533ACOVER, FLOOR CARPET, CENTER RH
58534AMAT, TRANSMISSION COVER
58534BCLIP(FOR FLOOR CARPET CENTER COVER)
BLACK,TRIM1#,3#,4#,8#; BLACK,TRIM1#,3#,8#
58561RETAINER, FLOOR MAT, NO.1
6777114040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14040
9046705050
main90467-05050
9 parts on this diagram · 1 diagram in section
MAT & CARPET for Toyota COROLLA CP
This section contains 9 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA CP. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), CLIP(FOR FRONT FLOOR REAR CARPET), COVER, FLOOR CARPET, CENTER RH, MAT, TRANSMISSION COVER.
