Toyota COROLLA CP — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69054CYLINDER & KEY SET, BACK DOOR LOCK
69058CYLINDER & KEY SET, FUEL FILLER LID
69061CYLINDER & KEY SET, LUGGAGE LOCK
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY,MASTER KEY
SUB KEY,SUB KEY
MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR
69511RETAINER, FRONT DOOR LOCK CYLINDER
69551RETAINER, BACK DOOR LOCK CYLINDER
69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
69581RETAINER, FUEL FILLER LID CYLINDER
69685PAD, LOCK CYLINDER
FR DOOR,FUEL
BACK DOOR OR LUGGAGE DOOR

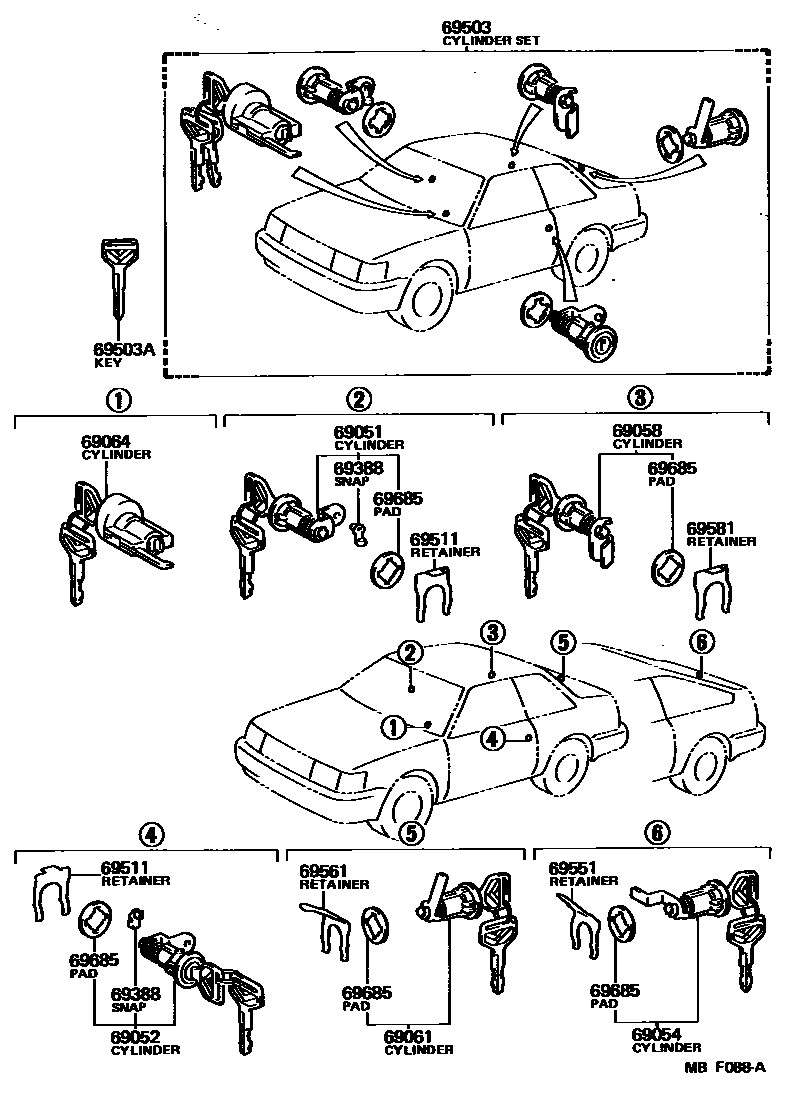

14 parts on this diagram · 1 diagram in section
LOCK CYLINDER SET for Toyota COROLLA CP
This section contains 14 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA CP. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, FUEL FILLER LID, CYLINDER & KEY SET, LUGGAGE LOCK.
