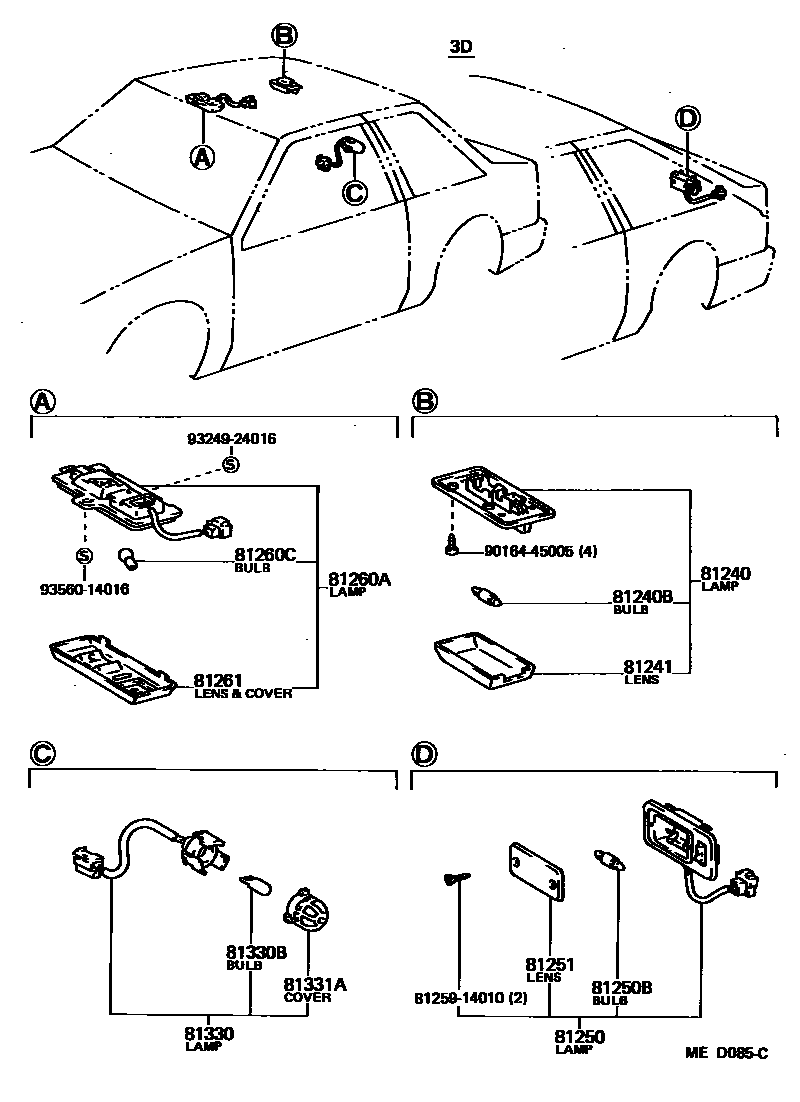

Toyota COROLLA CP — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,IVORY
IVORY,IVORY
81240BBULB, ROOM LAMP, NO.1
12V 10W,12V 10W
81250LAMP ASSY, ROOM, NO.2
BLACK,BLACK
MAROON,RED/MAROON
GRAY,GRAY
MAROON,MAROON
BLUE,BLUE
81250BBULB, ROOM LAMP, NO.2
12V 5W,12V 5W
81251LENS, ROOM LAMP, NO.2
81260ALAMP ASSY, MAP
IVORY,IVORY
81260CBULB(FOR MAP LAMP)
12V 10W,12V 10W
81261LENS AND COVER, MAP LAMP
IVORY,IVORY
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W,12V 5W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
8125914010
main81259-14010
9016445005
main90164-45005
9324924016
main93249-24016
9356014016
main93560-14016
16 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota COROLLA CP
This section contains 16 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA CP. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
