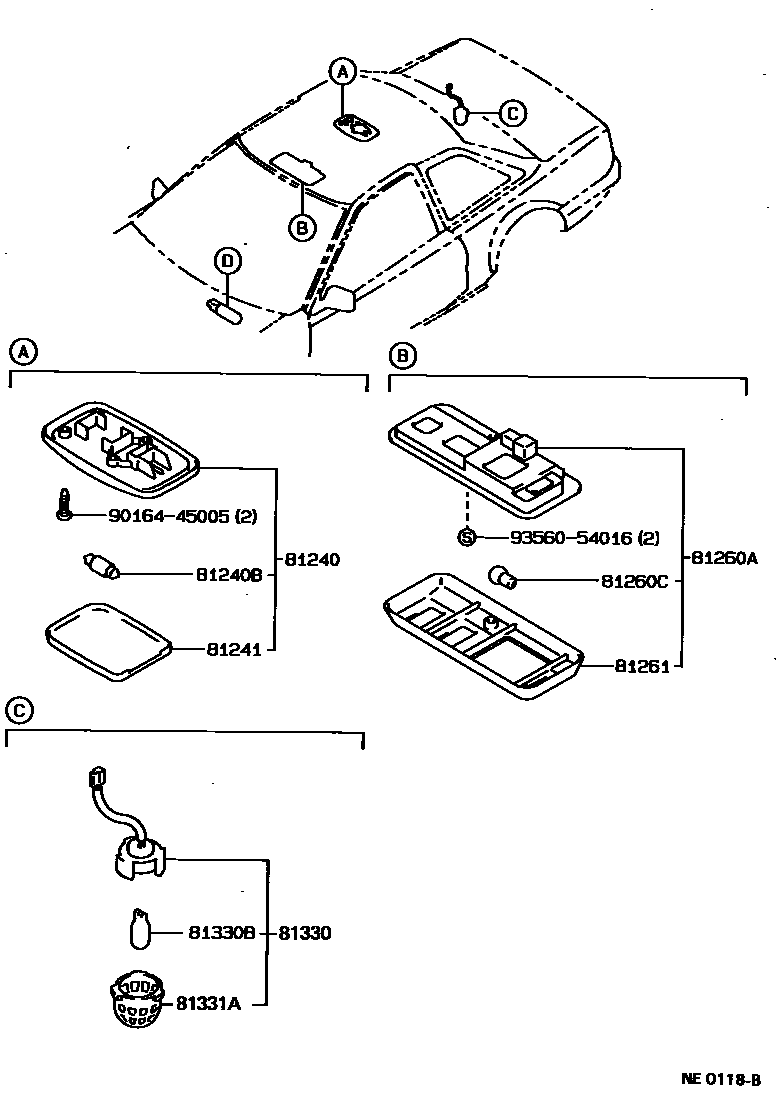

Toyota COROLLA CP — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT BEIGE,TRIM4#
RED,TRIM3#
LIGHT BROWN,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 10W
81241LENS, ROOM LAMP, NO.1
81260ALAMP ASSY, MAP
LIGHT BLUE,TRIM8#
LIGHT BROWN,TRIM4#
RED,TRIM3#
LIGHT GRAY,TRIM1#
DARK BEIGE,TRIM4#
81260CBULB(FOR MAP LAMP)
12V 10W
81261LENS AND COVER, MAP LAMP
LIGHT BLUE,TRIM8#
LIGHT BROWN,TRIM4#
RED,TRIM3#
LIGHT GRAY,TRIM1#
LIGHT BEIGE,TRIM4#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331ACOVER, LUGGAGE COMPARTMENT LAMP
9016445005
main90164-45005
9356054016
main93560-54016
11 parts on this diagram · 2 diagrams in section
INTERIOR LAMP for Toyota COROLLA CP
This section contains 13 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA CP. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, MAP.
