Toyota COROLLA CP — INDICATOR

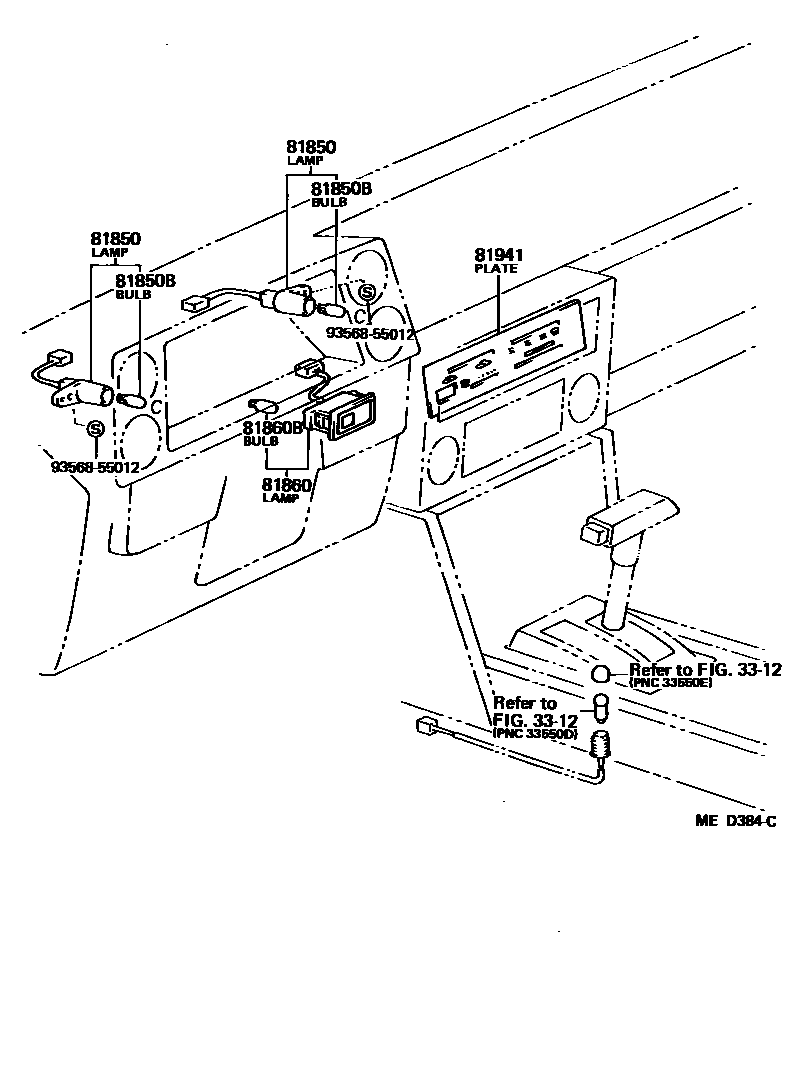

Parts diagram

3312

81850LAMP ASSY, INDICATOR

main81850-12180×2i198308-198707

81850BBULB, INDICATOR LAMP

main90981-11018×2i198308-198707

12V 1.2W W/O SOCKET,12V 1.4W

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-12050i198508-198707

W/OVER DRIVE

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110×2i198508-198707

12V 1.12W,12V 1.1W

81941PLATE, HEATER CONTROL NAME

main55519-12030i198308-198408

main55519-12031i198408-198508

main55519-12032i198508-198707

main55519-12040i198308-198408

W/*BV

main55519-12041i198408-198508

W/*BV

main55519-12042i198508-198707

W/*BV

main55519-12060i198308-198508

W/O HEATER & *BV

main55519-12061i198508-198707

W/O HEATER & *BV

main55519-12070i198408-198508

W/HEATER & COOLER

main55519-12071i198508-198707

W/HEATER & COOLER

9356855012

main93568-55012

7 parts on this diagram · 1 diagram in section
