Toyota COROLLA CP — HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12110i198408-198707

main88412-14030i198308-198707

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12110i198408-198508

W/PS & *BV

main88411-14060i198308-198707

main88411-22070i198408-198508

main88411-22100i198508-198707

88320COMPRESSOR ASSY, COOLER

main88320-12280i198408-198508

DEALER OPTION

main88320-12300i198408-198508

DEALER OPTION

main88320-12320i198408-198508

W/PS & *BV,DEALER OPTION; W/PS,DEALER OPTION

main88320-12400i198508-198707

W/PS & *BV,DEALER OPTION; W/PS,DEALER OPTION

main88320-12410i198505-198707

W/PS MAKER OPTION

main88320-12420i198508-198707

DEALER OPTION

main88320-12430i198505-198707

MAKER OPTION

main88320-12440i198505-198707

MAKER OPTION

main88320-12450i198508-198707

DEALER OPTION

88330CLUTCH ASSY, MAGNET

main88410-12150i198408-198508

main88410-12200i198408-198508

W/PS & *BV

main88410-14110i198308-198707

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050i198508-198707

88330BBEARING, MAGNET CLUTCH

main90099-10133i198408-198707

main90099-10135i198308-198707

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030i198608-198707

main88403-12040i198608-198707

main88403-14030i198408-198608

main88403-14040i198308-198608

88414ARING, SHIELD SNAP

main90099-07094i198408-198508

W/PS; W/PS & *BV

main90099-07114i198408-198508

88596APLATE, CAUTION

main88356-12010i198608-198707

main88356-12020i198608-198707

NO.1,W/PS

main88356-12030i198608-198707

NO.2,W/PS

8889914120COVER, EVAPORATOR

main88899-14120

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

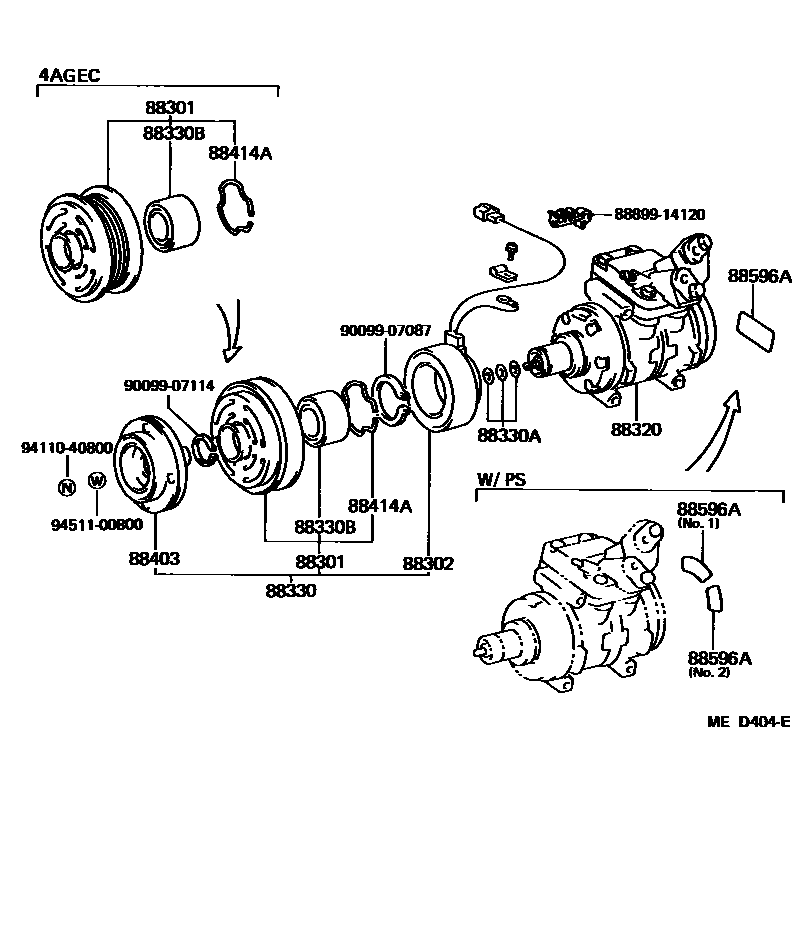

14 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA CP

This section contains 47 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA CP. Key components include: RADIATOR & WATER OUTLET, V-BELT, ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, CYLINDER SUB-ASSY, COOLER COMPRESSOR.
