Toyota COROLLA CP — HEADLAMP

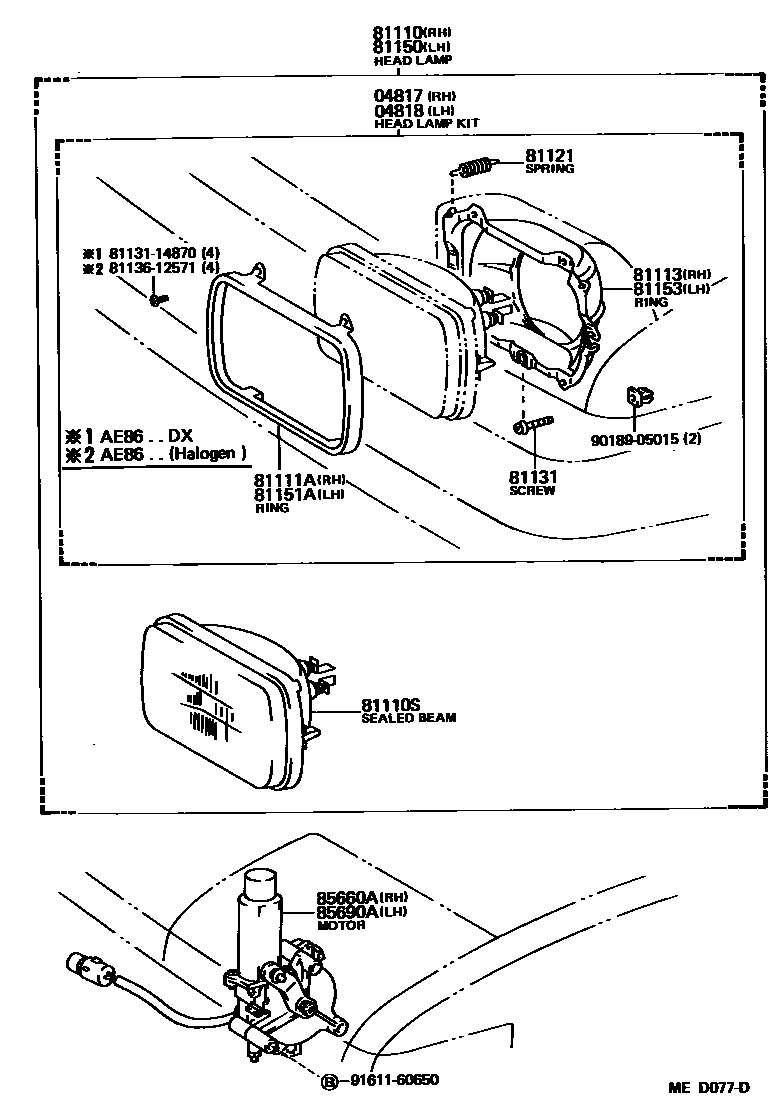

Parts diagram
04817HEADLAMP KIT, W/O SEALED BEAM, RH
main04817-12070i198308-198707
HALOGEN
04818HEADLAMP KIT, W/O SEALED BEAM, LH
main04818-12070i198308-198707
HALOGEN
81110HEADLAMP ASSY, RH
main81110-80326i198308-198707
main81110-80327i198308-198707
HALOGEN
81110SSEALED BEAM UNIT, NO.1
main90981-04003×2i198308-198707
12V 65/55W,*WB,12V 65/55W
main90981-04020×2i198308-198707
12V 65/35W,*HAL,*WB,HALOGEN,12V 65/55W
81111ARING, SEALED BEAM RETAINING, NO.1 RH
main81111-14710i198308-198707
main81111-16020i198308-198707
HALOGEN
81113RING, SEALED BEAM MOUNTING, NO.1 RH
main81113-1A290i198308-198707
main81153-14670i198308-198707
HALOGEN
81121SPRING, HEADLAMP TENSION
main81121-14670×2i198308-198707
HALOGEN
main81121-14710×2i198308-198707
81131SCREW, HEADLAMP ADJUSTING
main81119-1A270×4i198308-198707
HALOGEN
main81131-16230×4i198308-198707
81150HEADLAMP ASSY, LH
main81150-80323i198308-198707
main81150-80324i198308-198707
HALOGEN
81151ARING, SEALED BEAM RETAINING, NO.1 LH
main81111-14710i198308-198707
main81111-16020i198308-198707
HALOGEN
81153RING, SEALED BEAM MOUNTING, NO.1 LH
main81113-14670i198308-198707
HALOGEN
main81153-1A220i198308-198707
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
main85660-12010i198308-198707
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
main85690-12010i198308-198707
8113114870SCREW, HEADLAMP ADJUSTING
main81131-14870
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905015
main90189-05015
9161160650
main91611-60650

17 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota COROLLA CP

This section contains 17 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA CP. Key components include: HEADLAMP KIT, W/O SEALED BEAM, RH, HEADLAMP KIT, W/O SEALED BEAM, LH, HEADLAMP ASSY, RH, SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH.
