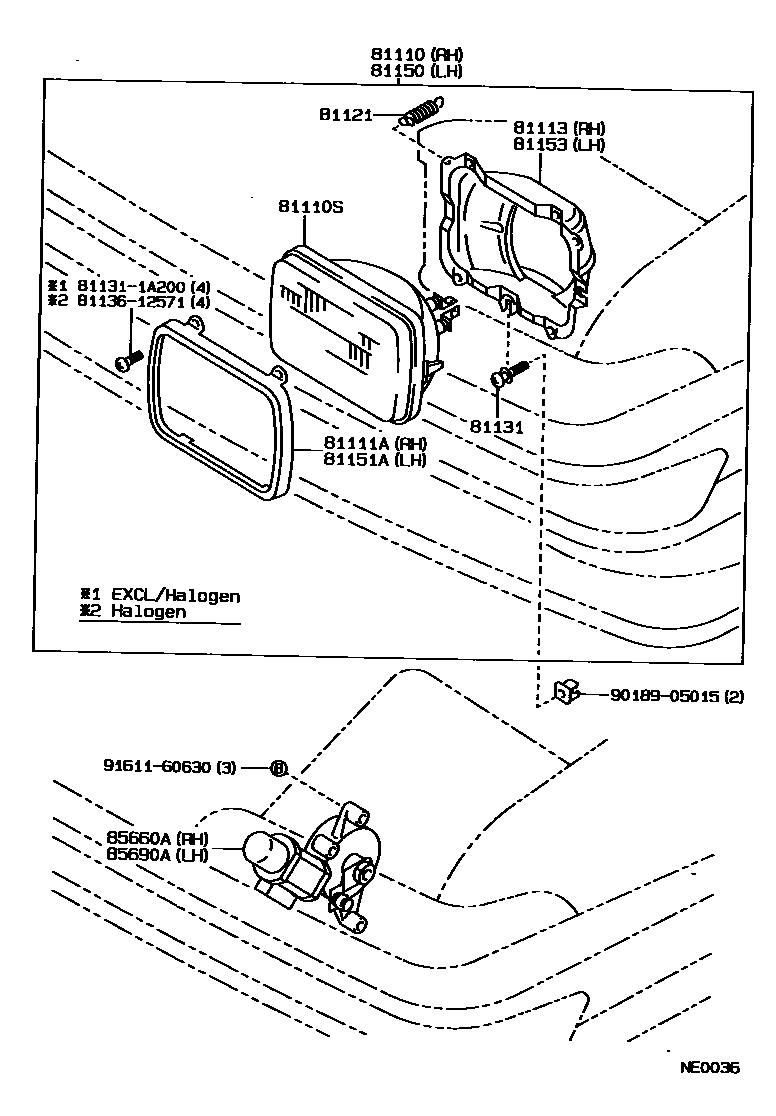

Toyota COROLLA CP — HEADLAMP
81110HEADLAMP ASSY, RH
HALOGEN WHITE
81110SSEALED BEAM UNIT, NO.1
12V 65/55W,*WB
12V 65/35W,*HAL,*WB
81111ARING, SEALED BEAM RETAINING, NO.1 RH
HALOGEN WHITE
81113RING, SEALED BEAM MOUNTING, NO.1 RH
HALOGEN WHITE
81121SPRING, HEADLAMP TENSION
HALOGEN WHITE
81131SCREW, HEADLAMP ADJUSTING
HALOGEN WHITE
81150HEADLAMP ASSY, LH
HALOGEN WHITE
81151ARING, SEALED BEAM RETAINING, NO.1 LH
HALOGEN WHITE
81153RING, SEALED BEAM MOUNTING, NO.1 LH
HALOGEN WHITE
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
811311A200SCREW, HEADLAMP ADJUSTING
main81131-1A200
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905015
main90189-05015
9161160630
main91611-60630
15 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota COROLLA CP
This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA CP. Key components include: HEADLAMP ASSY, RH, SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING, NO.1 RH, RING, SEALED BEAM MOUNTING, NO.1 RH, SPRING, HEADLAMP TENSION.
