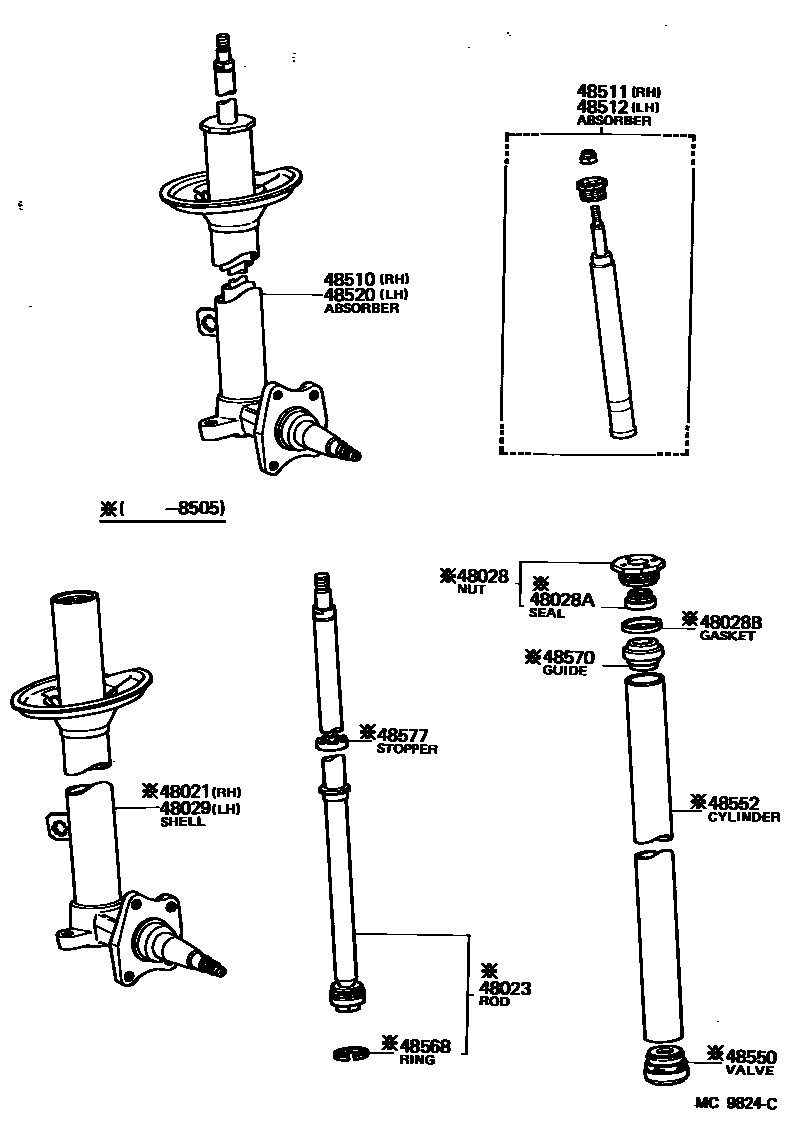

Toyota COROLLA CP — FRONT SPRING & SHOCK ABSORBER
48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH
48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)
48028NUT SUB-ASSY, SHOCK ABSORBER RING
48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)
48028BGASKET(FOR SHOCK ABSORBER RING NUT)
48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
MARK 48511-12220
MARK 48511-12230
MARK 48511-12240
MARK 48511-12190
MARK 48511-12200
MARK 48511-12210
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
MARK 48511-12220
MARK 48511-12230
MARK 48511-12240
MARK 48511-12190
MARK 48511-12200
MARK 48511-12210
48520ABSORBER ASSY, SHOCK, FRONT LH
48550VALVE ASSY, SHOCK ABSORBER BASE
48552CYLINDER, SHOCK ABSORBER(FOR FRONT)
48568RING, SHOCK ABSORBER PISTON
48570GUIDE ASSY, SHOCK ABSORBER ROD
48577STOPPER, SHOCK ABSORBER REBOUND
15 parts on this diagram · 2 diagrams in section
FRONT SPRING & SHOCK ABSORBER for Toyota COROLLA CP
This section contains 44 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota COROLLA CP. Key components include: SHELL SUB-ASSY, W/STEERING KNUCKLE, RH, ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT), NUT SUB-ASSY, SHOCK ABSORBER RING, SEAL, OIL(FOR SHOCK ABSORBER RING NUT), GASKET(FOR SHOCK ABSORBER RING NUT).
