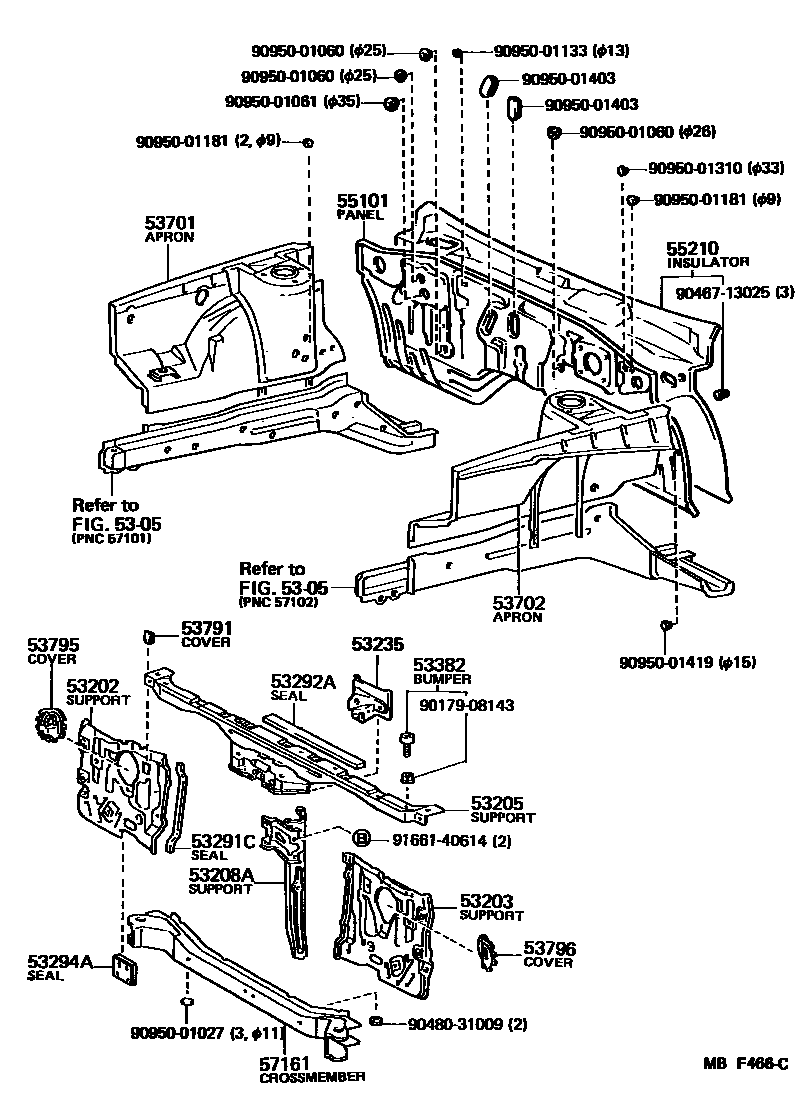

Toyota COROLLA CP — FRONT FENDER APRON & DASH PANEL

5305

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-12220iAE86198308-198707

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53212-12200iAE86198308-198707

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-12904iAE86198308-198505

main53216-12927iAE86198505-198707

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-12240iAE86198308-198508

main53208-12241iAE86198508-198707

53235BRACKET, HORN MOUNTING

main53235-12010iAE86198508-198707

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-12090×2iAE86198308-198707

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-12010iAE86198308-198707

53294ASEAL, COOL AIR INTAKE PIPE

main53294-12030×2iAE86198308-198707

main53294-12040×2iAE86198308-198707

W/AIR CON

53382BUMPER, HOOD, FRONT

main53382-12050×2iAE86198308-198707

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-12913iAE86198308-198707

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-12920iAE86..DX,SR5198308-198505

main53702-12921iAE86198308-198505

W/AUTO DRIVE

main53702-12923iAE86198505-198707

53791COVER, COOL AIR INTAKE HOLE

main53791-12040iAE86..GTS198408-198707

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-12020iAE86198308-198707

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53796-12010iAE86198308-198707

55101PANEL SUB-ASSY, DASH

main55101-12910iAE86198308-198707

55210INSULATOR ASSY, DASH PANEL

main55210-12230iAE86198308-198707

57161CROSSMEMBER, FRONT

main57161-12905iAE86198308-198707

9017908143

main90179-08143

9046713025

main90467-13025

9048031009

main90480-31009

9095001027

main90950-01027

9095001060

main90950-01060

9095001061

main90950-01061

9095001133

main90950-01133

9095001181

main90950-01181

9095001310

main90950-01310

9095001403

main90950-01403

9095001419

main90950-01419

9166140614

main91661-40614

30 parts on this diagram · 1 diagram in section
