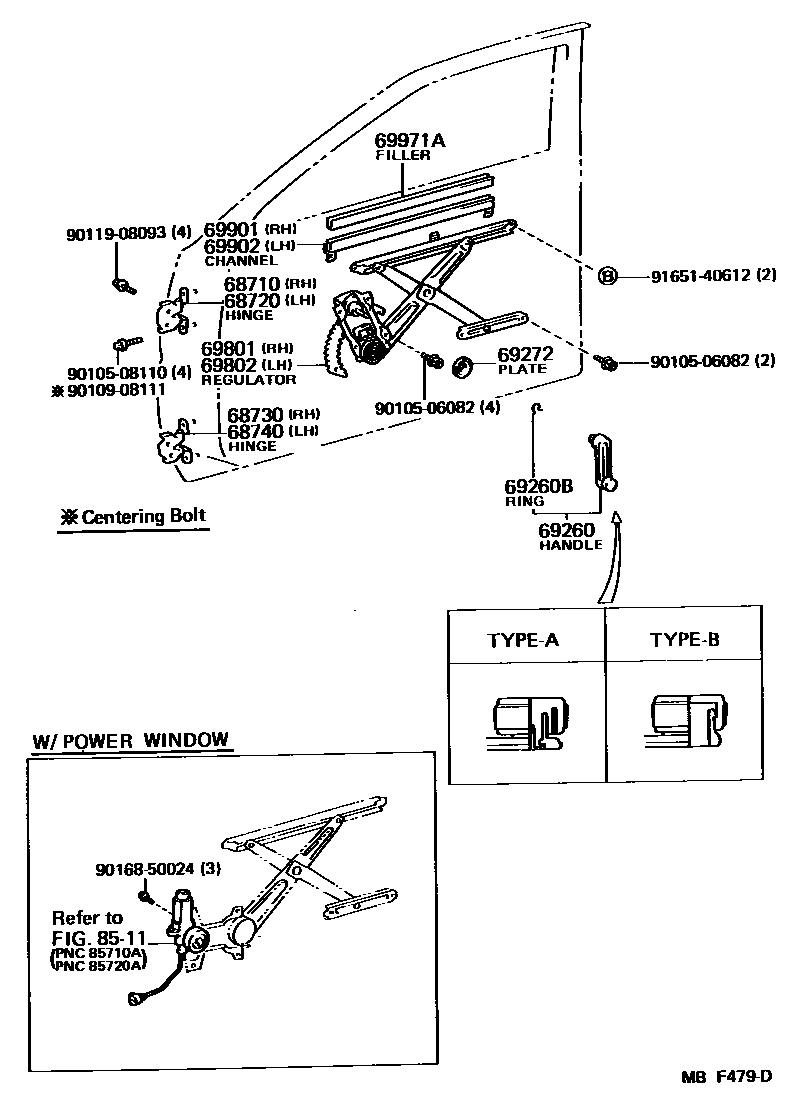

Toyota COROLLA CP — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-32010i198308-198707

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-32010i198308-198707

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32010i198308-198707

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-32010i198308-198707

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01i198508-198707

BLACK,BLACK

main69260-10040-12i198508-198707

MAROON,MAROON

main69260-10040-44i198508-198707

BLUE,BLUE

main69260-12060-02×2i198308-198408

TYPE B,DEEP MAROON,RED/MAROON

main69260-12060-24×2i198308-198408

TYPE B,BLUE,BLUE

main69260-14020-04×2i198308-198508

TYPE A,BLUE,BLUE

main69260-14020-12×2i198308-198508

TYPE A,DEEP MAROON,RED/MAROON

main69260-14020-33×2i198408-198508

TYPE A,GRAY,GRAY

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2i198308-198707

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010×2i198308-198707

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12060i198508-198707

W/*PW

main69810-12170i198308-198707

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12060i198508-198707

W/*PW

main69820-12160i198308-198707

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12120i198308-198707

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-12120i198308-198707

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-22010×2i198308-198707

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506082

main90105-06082

9010508110

main90105-08110

9010908111

main90109-08111

9011908093

main90119-08093

9016850024

main90168-50024

9165140612

main91651-40612

19 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA CP

This section contains 19 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA CP. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
