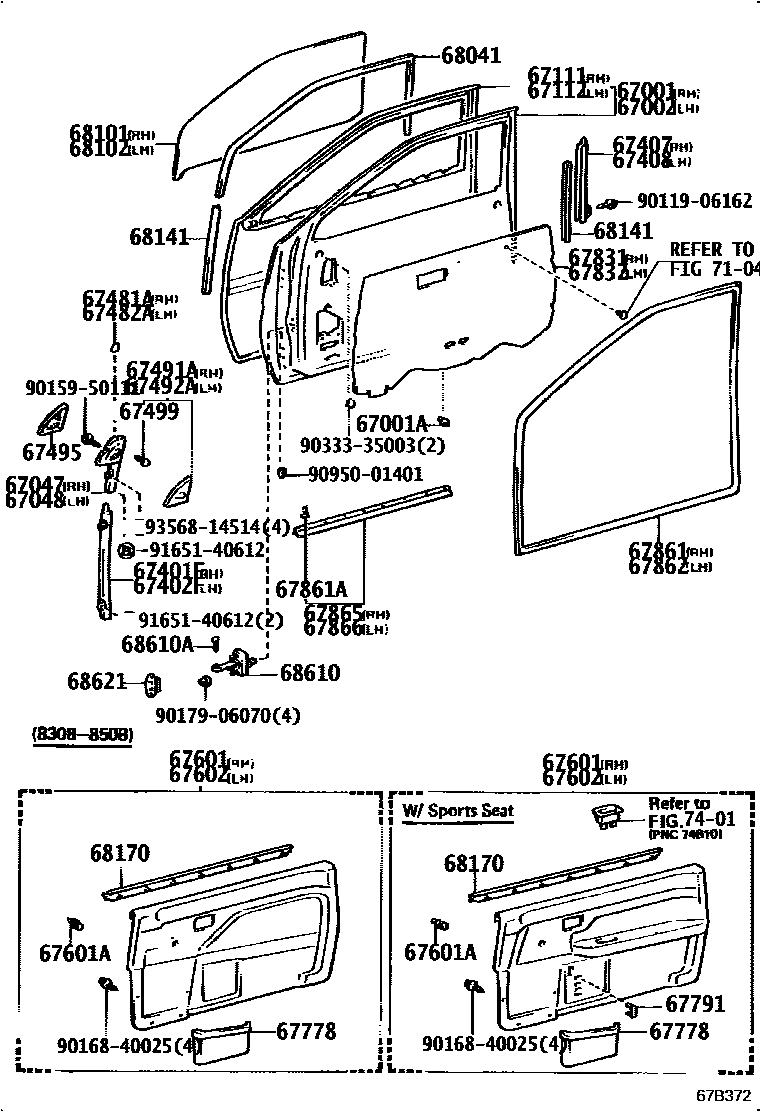

Toyota COROLLA CP — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67047BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, RH
67048BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W/O HOLE
W/HOLE
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W/O HOLE
W/HOLE
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
*PW,BLACK,BLACK
*PW,BLUE,BLUE
*PW,BLACK,BLACK
*PW,BLUE,BLUE
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
BLACK,BLACK
BLUE,BLUE
W/SPORTS SEAT,BLACK,BLACK
W/SPORTS SEAT,BLUE,BLUE
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
BLACK,BLACK
BLUE,BLUE
BLUE,BLUE
DEEP MAROON,DEEP MAROON
DEEP MAROON,RED/MAROON
BLUE,BLUE
DEEP MAROON,DEEP MAROON
BLUE,BLUE
DEEP MAROON,RED/MAROON
BLUE,BLUE
DEEP MAROON,DEEP MAROON
W/SPORTS SEAT,BLUE,BLUE
W/SPORTS SEAT,DEEP MAROON,RED/MAROON
SR-TYPE,DEEP MAROON,RED/MAROON
DEEP MAROON,DEEP MAROON
GRAY,GRAY
BLUE,BLUE
DEEP MAROON,DEEP MAROON
GRAY,GRAY
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
W/SPORTS SEAT,BLUE,BLUE
W/SPORTS SEAT,DEEP MAROON,RED/MAROON
DEEP MAROON,RED/MAROON
BLUE,BLUE
DEEP MAROON,DEEP MAROON
SE-TYPE,DEEP MAROON,RED/MAROON
SE-TYPE,BLUE,BLUE
DEEP MAROON,DEEP MAROON
SR-TYPE,DEEP MAROON,RED/MAROON
BLUE,BLUE
DEEP MAROON,DEEP MAROON
GRAY,GRAY
BLUE,BLUE
DEEP MAROON,DEEP MAROON
GRAY,GRAY
MAROON,MAROON
BLUE,BLUE
BLACK,BLACK
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
*PW,BLACK,BLACK
*PW,BLUE,BLUE
*PW,BLACK,BLACK
*PW,BLUE,BLUE
BLACK,BLACK
BLUE,BLUE
W/SPORTS SEAT,BLACK,BLACK
W/SPORTS SEAT,BLUE,BLUE
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
BLACK,BLACK
BLUE,BLUE
67778POCKET, FRONT DOOR TRIM, LH
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
67791RETAINER, FRONT DOOR POCKET
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
W/POWER WINDOW
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67865WEATHERSTRIP, FRONT DOOR, LOWER RH
67866WEATHERSTRIP, FRONT DOOR LOWER, LH
68041RUN SUB-ASSY, FRONT DOOR GLASS
RH
LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0,*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0,*TT,T=4.0
68141RUN, FRONT DOOR GLASS
RR
RR
FR
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
LH
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
68621SEAL, DOOR CHECK
7104SEAT BELT & CHILD RESTRAINT SEAT
7401ARMREST & VISOR
9011906162
main90119-06162
9015950111
main90159-50111
9016840025
main90168-40025
9017906070
main90179-06070
9033335003
main90333-35003
9095001401
main90950-01401
9165140612
main91651-40612
9356814514
main93568-14514
47 parts on this diagram · 2 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota COROLLA CP
This section contains 49 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota COROLLA CP. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, RH, BRACKET SUB-ASSY, FRONT DOOR LOWER FRAME, LH.
