Toyota COROLLA CP — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-12380i198708-199106

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-11020×4i198708-199106

12V 3.8W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-12380i198708-198908

81615SOCKET AND WIRE, CLEARANCE LAMP

main90075-99003×2i198708-199106

NO.2

main90075-99007×2i198708-199106

NO.1

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-12380i198708-199106

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-12380i198708-198908

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9016740027

main90167-40027

9018904049

main90189-04049

9018906088

main90189-06088

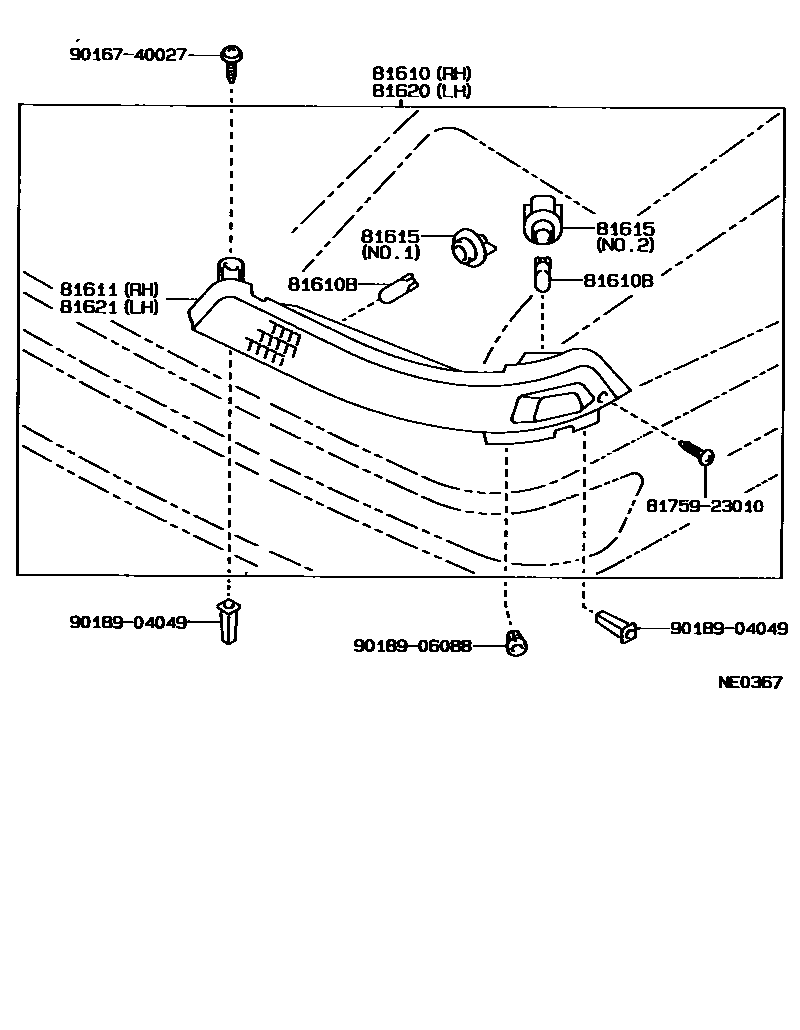

10 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota COROLLA CP

This section contains 10 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota COROLLA CP. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
