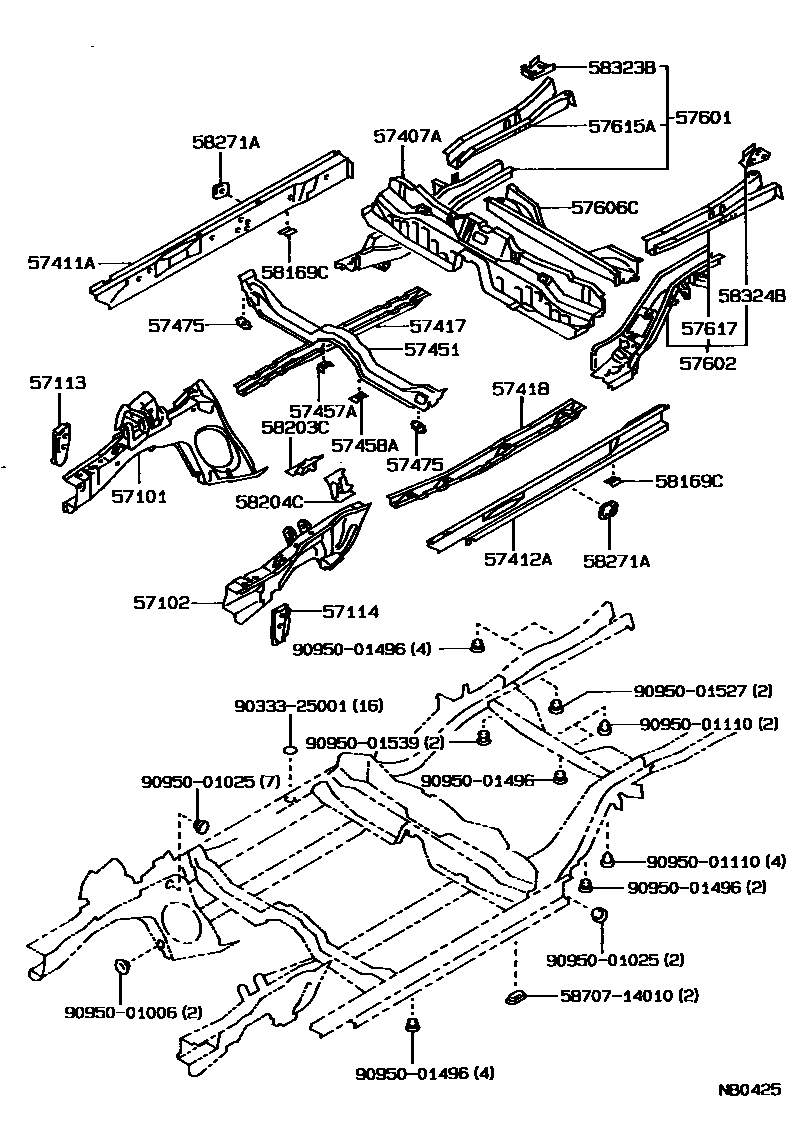

Toyota COROLLA CP — FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57457APLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH
57458APLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH
57475PLATE, FRONT FLOOR CROSSMEMBER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57617MEMBER, REAR FLOOR SIDE, REAR LH
58169CPATCH, FRONT FLOOR REAR
58203CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING
58204CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING, LH
58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58323BREINFORCE, REAR BUMPER ARM SUPPORT, RH
58324BREINFORCE, REAR BUMPER ARM SUPPORT, LH
5870714010PLUG SET, HOLE
main58707-14010
9033325001
main90333-25001
9095001006
main90950-01006
9095001025
main90950-01025
9095001110
main90950-01110
9095001496
main90950-01496
9095001527
main90950-01527
9095001539
main90950-01539
32 parts on this diagram · 2 diagrams in section
FLOOR SIDE MEMBER for Toyota COROLLA CP
This section contains 35 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota COROLLA CP. Key components include: MEMBER SUB-ASSY, FRONT SIDE, RH, MEMBER SUB-ASSY, FRONT SIDE, LH, EXTENSION, FRONT SIDE MEMBER, RH, EXTENSION, FRONT SIDE MEMBER, LH, MEMBER SUB-ASSY, CENTER FLOOR CROSS.
