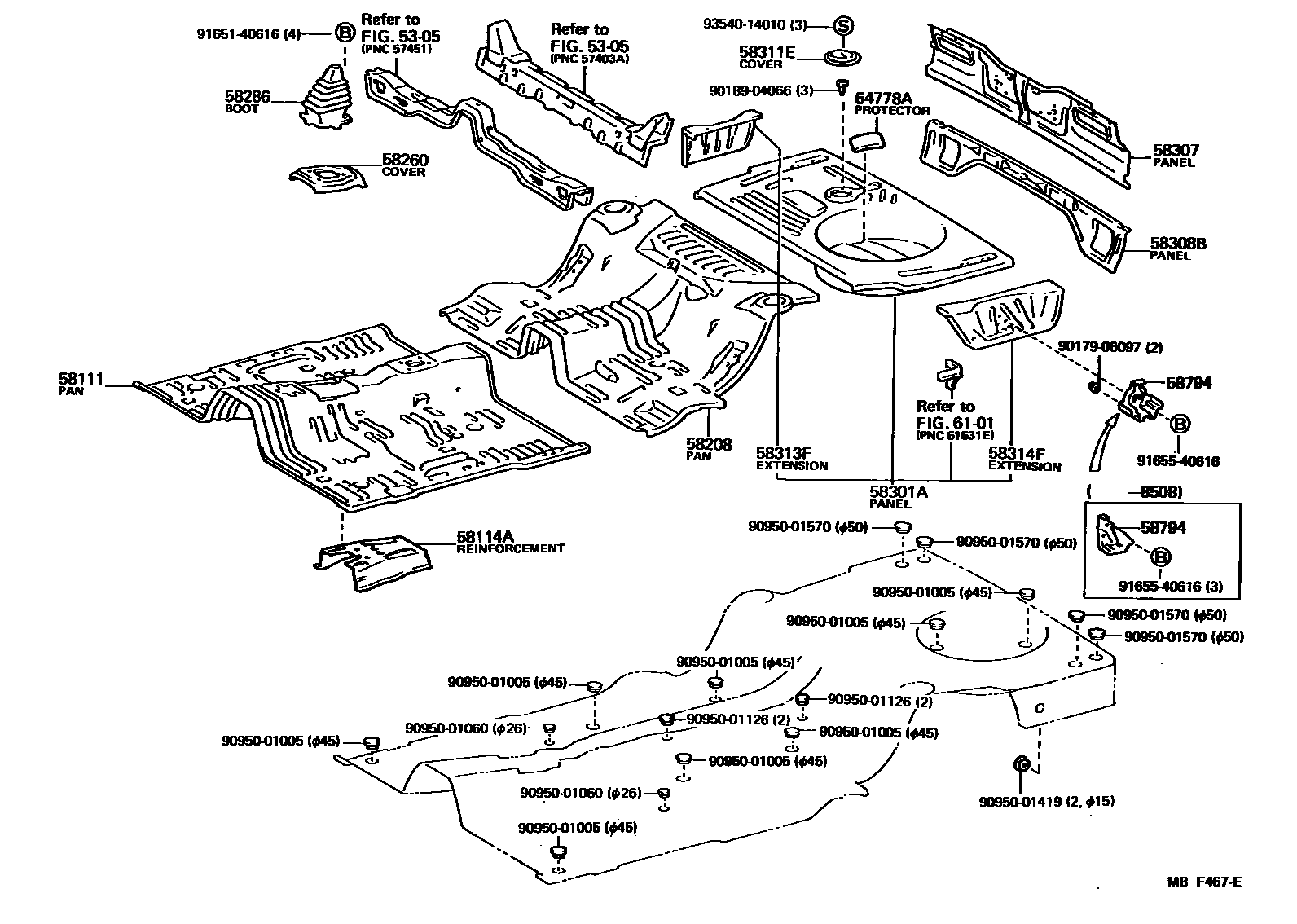

Toyota COROLLA CP — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

58111PAN, FRONT FLOOR

main58111-12160iAE86198308-198707

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12010iAE86198308-198707

58208PAN, CENTER FLOOR

main58211-12160iAE86198308-198707

sub58211-12150

58260COVER ASSY, TRANSMISSION, FRONT

main58281-12030iAE86..5F198308-198707

main58281-12040iAE86..4FC198308-198707

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-12120iAE86..5F198308-198707

58301APANEL SUB-ASSY, REAR FLOOR

main58301-12170iAE86..3D198308-198707

main58301-12210iAE86..2D198308-198508

main58301-12211iAE86..2D198508-198707

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12740iAE86..3D198308-198508

main58307-12741iAE86..3D198508-198707

main58307-12790iAE86..2D198308-198508

main58307-12791iAE86..2D198508-198707

58308BPANEL SUB-ASSY, REAR VALANCE

main58308-12110iAE86198308-198707

58311ECOVER, REAR FLOOR SERVICE HOLE

main58325-16030iAE86198308-198707

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12140iAE86..3D198308-198707

main58313-12160iAE86..2D198308-198707

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-12060iAE86..2D198308-198508

main58303-12061iAE86..2D198508-198707

main58314-12140iAE86..3D198308-198707

58794CARRIER, JACK

main58791-12080iAE86..2D198308-198508

main58791-12081iAE86..2D198508-198707

6101

64778APROTECTOR, SPARE WHEEL

main64778-12020×2iAE86198308-198707

9017906097

main90179-06097

9018904066

main90189-04066

9095001005

main90950-01005

9095001060

main90950-01060

9095001126

main90950-01126

9095001419

main90950-01419

9095001570

main90950-01570

9165140616

main91651-40616

9165540616

main91655-40616

9354014010

main93540-14010

25 parts on this diagram · 2 diagrams in section
