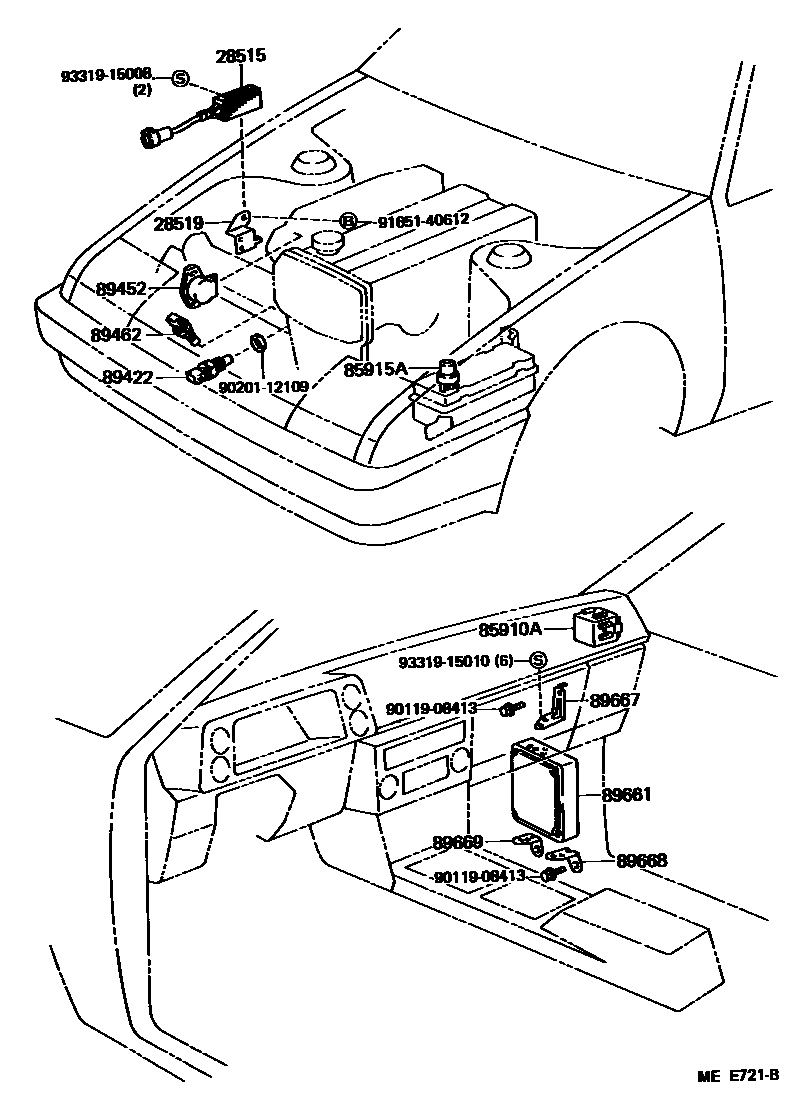

Toyota COROLLA CP — ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-52010i198408-198707

28519BRACKET, SOLENOID RESISTOR

main28519-15010i198408-198508

main28519-15011i198508-198707

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050i198408-198707

85915ARELAY, MAIN

main90987-02004i198408-198707

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020i198408-198707

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20070i198608-198707

main89452-28010i198408-198608

89462SWITCH, START INJECTOR TIME

main89462-30011i198408-198707

89661COMPUTER, ENGINE CONTROL

main89661-12090i198408-198505

main89661-12091i198505-198512

main89661-12092i198512-198707

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12050i198408-198707

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12020i198408-198707

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-12020i198408-198707

9011908413

main90119-08413

9020112109

main90201-12109

9165140612

main91651-40612

9331915008

main93319-15008

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COROLLA CP

This section contains 16 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COROLLA CP. Key components include: RESISTOR, SOLENOID, BRACKET, SOLENOID RESISTOR, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, MAIN, SENSOR, WATER TEMPERATURE (FOR E.F.I.).
