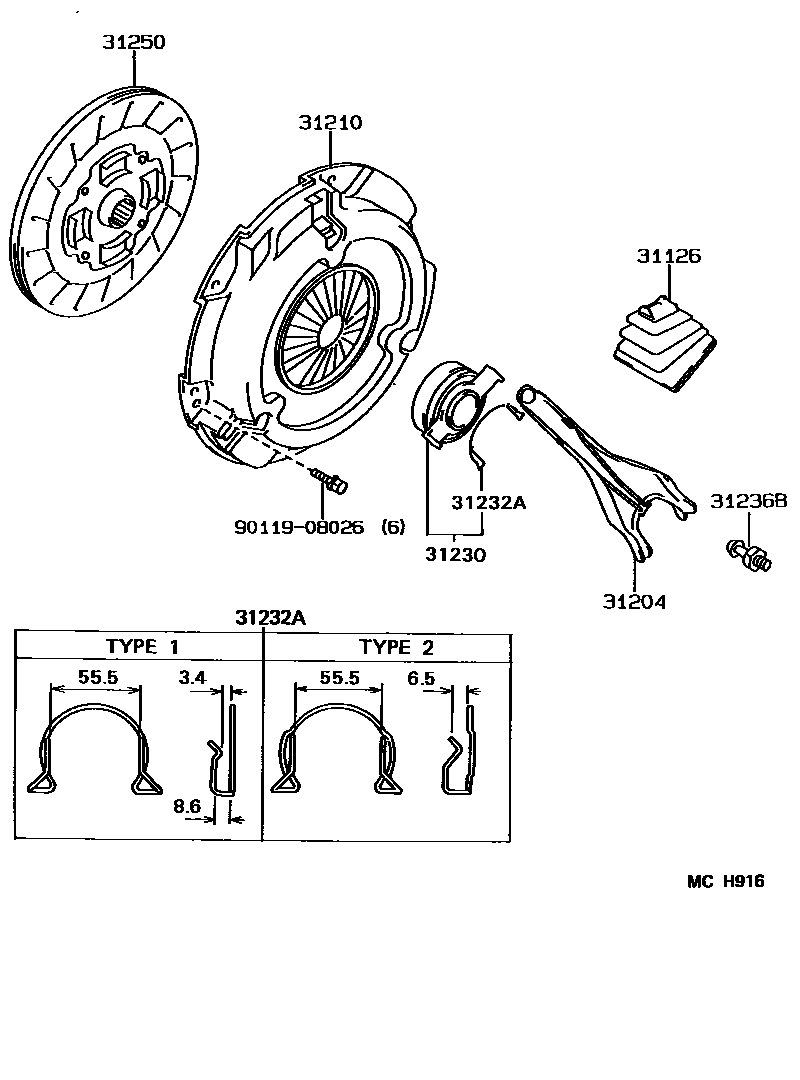

Toyota COROLLA CP — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAE92..5F198708-198808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iAE92..5F198708-198808

main31204-17010iAE92..5F199105-199106

31210COVER ASSY, CLUTCH

main31210-12120iAE92..EFI198708-198908

sub31210-12121

main31210-12150iAE92..GTS198908-198911

main31210-12151iAE92..GTS198911-199106

sub31210-12152

main31210-12210iAE92..5F..(DX,SR5)199104-199106

sub31210-12280

main31210-16100iAE92..5F..CBR198708-198812

main31210-16101iAE92..5F..(DX,SR5)198812-198911

main31210-16102iAE92..5F..(DX,SR5)198911-199104

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iAE92..5F198708-198811

sub31230-16061

31232ACLIP, RELEASE BEARING HUB

main31232-12040iAE92..5F198708-198808

TYPE 1

main31232-12070iAE92..5F199105-199106

main31232-16031iAE92..5F198905-198908

TYPE 2

31236BSUPPORT, RELEASE FORK

main31236-12011iAE92..5F198908-199105

main31236-12020iAE92..5F199105-199106

31250DISC ASSY, CLUTCH

main31250-12200iAE92..5F..(DX,SR5)198708-199006

main31250-12201iAE92..5F..(DX,SR5)199006-199104

main31250-12290iAE92..5F..(DX,SR5)199104-199106

sub31250-12400

main31250-12320iAE92..GTS199104-199106

sub31250-12360

main31250-17010iAE92..EFI198708-198908

main31250-17020iAE92..GTS198908-199104

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
