Toyota COROLLA CP — CAUTION PLATE & NAME PLATE (ENGINE)

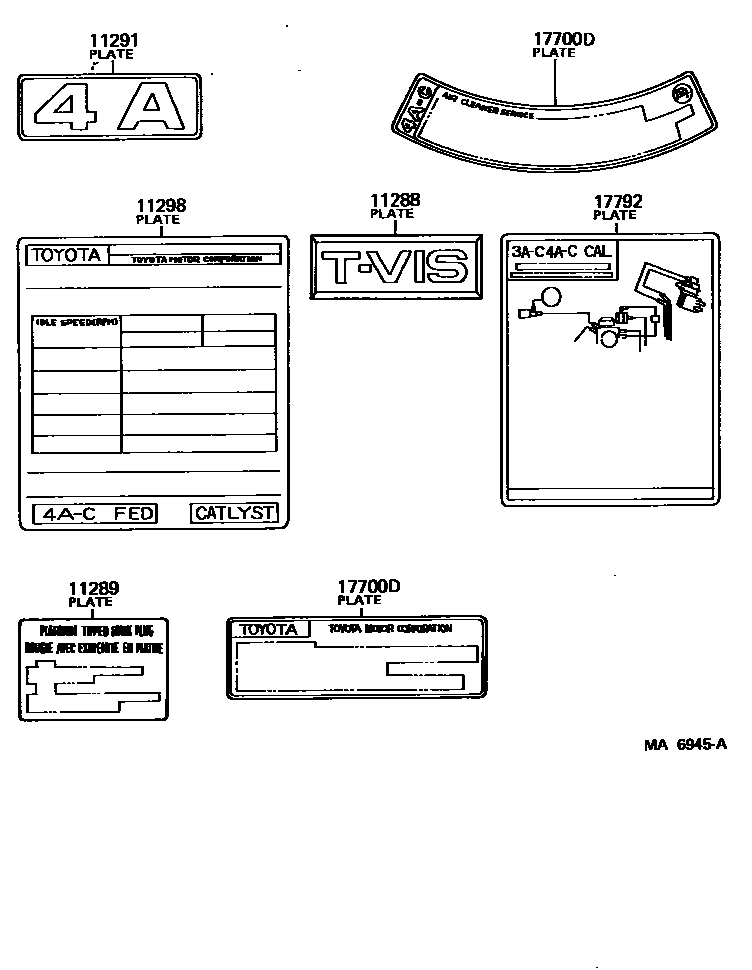

Parts diagram
11288PLATE, ENGINE SYSTEM
main11288-88301i198408-198707
T-VIS
11289PLATE, SPARK PLUG CAUTION
main11289-13040i198408-198606
main11289-73020i198606-198707
11291PLATE, ENGINE NAME
main11291-16020i198308-198612
4A
main11291-16021i198612-198707
4A
main11291-16040i198408-198707
4A-GE
11298PLATE, EMISSION CONTROL INFORMATION
main11298-16021i198308-198408
CALIFORNIA SPEC
main11298-16022i198408-198508
CALIFORNIA SPEC
main11298-16031i198308-198408
main11298-16032i198408-198508
main11298-16050i198408-198508
main11298-16051i198508-198608
sub11298-16430
main11298-16052i198608-198707
main11298-16120i198308-198408
main11298-16121i198408-198508
main11298-16160i198408-198508
CALIFORNIA SPEC
main11298-16161i198508-198608
CALIFORNIA SPEC
main11298-16162i198608-198707
CALIFORNIA SPEC
main11298-16210i198408-198508
main11298-16211i198508-198608
main11298-16212i198608-198707
main11298-16290i198508-198608
main11298-16291i198608-198707
main11298-16300i198508-198608
CALIFORNIA SPEC
main11298-16301i198608-198707
CALIFORNIA SPEC
main11298-16310i198508-198608
main11298-16311i198608-198707
17700DPLATE, ENGINE CAUTION
main11293-16010i198308-198408
main11293-16011i198408-198707
main11293-16060i198408-198707
17792PLATE, ENGINE VACUUM HOSE INFORMATION
main17792-12030i198408-198508
main17792-12031i198508-198707
main17792-15161i198308-198508
CALIFORNIA SPEC
main17792-15171i198308-198508
main17792-16070i198308-198408
main17792-16071i198408-198504
main17792-16072i198504-198508
main17792-16140i198508-198707
main17792-16150i198508-198707
CALIFORNIA SPEC
main17792-16160i198508-198707

6 parts on this diagram · 1 diagram in section
