Toyota COROLLA CP — ARMREST & VISOR

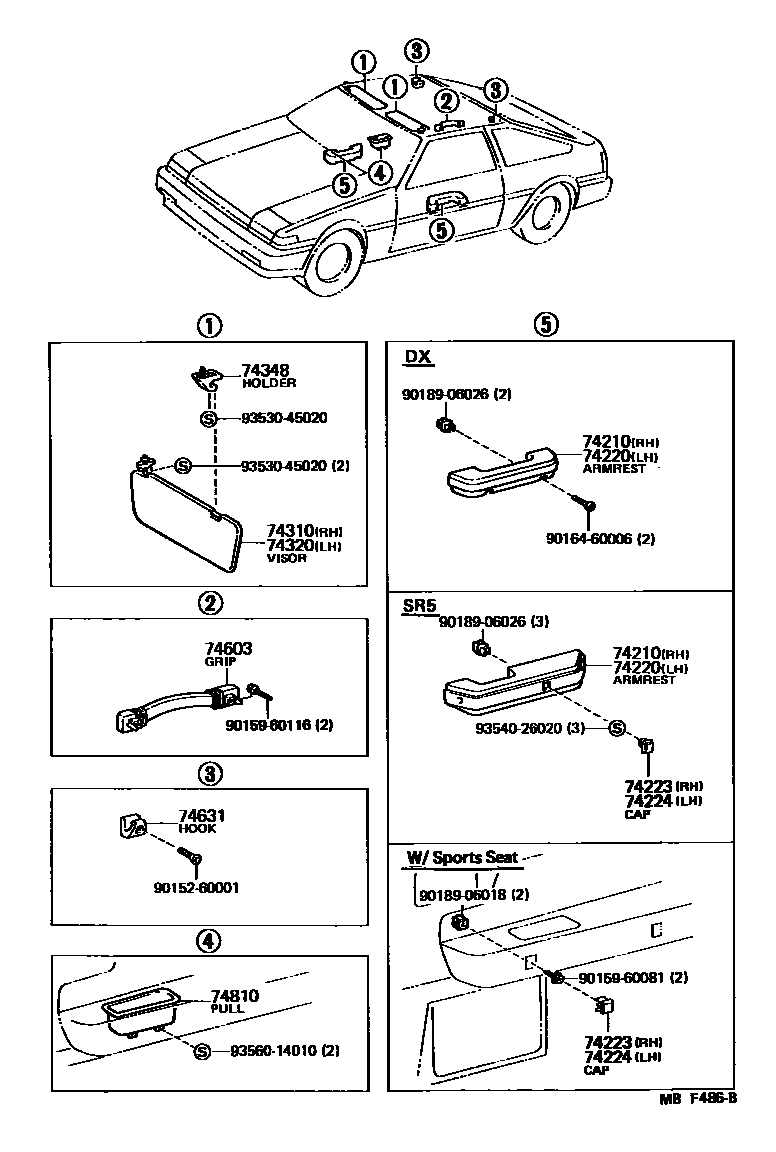

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-12070-01i198508-198608
BLACK,BLACK
main74210-12070-02i198308-198508
DEEP MAROON,RED/MAROON
main74210-12070-03i198408-198508
GRAY,GRAY
main74210-12070-04i198508-198608
BLUE,BLUE
main74210-12070-12i198508-198608
MAROON,MAROON
main74210-12120-01i198508-198707
W/SPORTS SEAT,BLACK,BLACK
main74210-12120-04i198508-198707
W/SPORTS SEAT,BLUE,BLUE
main74250-14030-02i198308-198508
DEEP MAROON,RED/MAROON
sub74210-12110
main74250-14030-04i198308-198508
BLUE,BLUE
sub74210-12110
74220ARMREST ASSY, FRONT, LH
main74220-12030-01i198608-198707
BLACK,BLACK
main74220-12030-02i198308-198508
DEEP MAROON,RED/MAROON
main74220-12030-03i198408-198508
GRAY,GRAY
main74220-12030-04i198308-198508
BLUE,BLUE
main74220-12030-12i198608-198707
MAROON,MAROON
main74220-12060-01i198508-198707
W/SPORTS SEAT,BLACK,BLACK
main74220-12060-04i198508-198707
W/SPORTS SEAT,BLUE,BLUE
main74250-14030-02i198308-198508
DEEP MAROON,RED/MAROON
sub74210-12110
main74250-14030-04i198308-198508
BLUE,BLUE
sub74210-12110
74223CAP, DOOR ARMREST, RH
main74223-12040-01×2i198508-198608
BLACK,BLACK
main74223-12040-02×2i198308-198408
W/SPORTS SEAT,DEEP MAROON,RED/MAROON
main74223-12040-03×2i198408-198508
GRAY,GRAY
main74223-12040-04×2i198308-198408
W/SPORTS SEAT,BLUE,BLUE
main74223-12040-12×2i198508-198608
MAROON,MAROON
main74223-12050-01×2i198508-198608
BLACK,BLACK
main74223-12050-02×2i198308-198508
DEEP MAROON,RED/MAROON
main74223-12050-03×2i198408-198508
GRAY,GRAY
main74223-12050-04×2i198308-198508
BLUE,BLUE
main74223-12050-12×2i198608-198707
MAROON,MAROON
main74223-12060-01×2i198508-198707
W/SPORTS SEAT,BLACK,BLACK
main74223-12060-04×2i198508-198707
W/SPORTS SEAT,BLUE,BLUE
74224CAP, DOOR ARMREST, LH
main74223-12040-01×2i198508-198608
BLACK,BLACK
main74223-12040-02×2i198308-198408
W/SPORTS SEAT,DEEP MAROON,RED/MAROON
main74223-12040-03×2i198408-198508
GRAY,GRAY
main74223-12040-04×2i198308-198408
W/SPORTS SEAT,BLUE,BLUE
main74223-12040-12×2i198508-198608
MAROON,MAROON
main74223-12050-01×2i198608-198707
BLACK,BLACK
main74223-12050-02×2i198308-198508
DEEP MAROON,RED/MAROON
main74223-12050-03×2i198408-198508
GRAY,GRAY
main74223-12050-04×2i198308-198508
BLUE,BLUE
main74223-12050-12×2i198608-198707
MAROON,MAROON
main74223-12060-01×2i198508-198707
W/SPORTS SEAT,BLACK,BLACK
main74223-12060-04×2i198508-198707
W/SPORTS SEAT,BLUE,BLUE
74310VISOR ASSY, RH
main74310-12310i198308-198408
IVORY
main74310-12320i198408-198505
IVORY
main74310-12330i198308-198505
IVORY
sub74310-12350
main74310-12630-08i198605-198707
IVORY,IVORY
main74310-12630-18i198505-198605
IVORY,IVORY
main74310-12640-08i198605-198707
IVORY,IVORY
main74310-12640-18i198505-198605
IVORY,IVORY
74320VISOR ASSY, LH
main74320-12260i198308-198505
IVORY
sub74320-12300
main74320-12480-08i198605-198707
IVORY,IVORY
main74320-12480-18i198505-198605
IVORY,IVORY
74348HOLDER, VISOR
main74348-32010-01×2i198308-198707
BLACK,BLACK
sub74348-17010
sub74348-12020
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-14030-01i198508-198707
BLACK,BLACK
sub74610-12050
main74610-14030-02i198308-198508
DEEP MAROON,RED/MAROON
sub74610-12050
main74610-14030-12i198508-198707
MAROON,MAROON
sub74610-12050
main74610-14030-14i198308-198508
BLUE,BLUE
sub74610-12050
main74610-14030-23i198408-198508
GRAY,GRAY
sub74610-12050
74631HOOK, COAT, A
main74631-12070-01×2i198508-198707
BLACK,BLACK
main74631-12070-02×2i198308-198508
DEEP MAROON,RED/MAROON
main74631-12070-03×2i198408-198508
GRAY,GRAY
main74631-12070-04×2i198308-198508
BLUE,BLUE
main74631-12070-12×2i198508-198707
MAROON,MAROON
74810PULL ASSY, DOOR, INSIDE
main74266-12010-01i198508-198608
RH,BLACK,BLACK
main74266-12010-03i198408-198508
RH,GRAY,GRAY
main74266-12010-04i198308-198408
RH,BLUE,BLUE
main74266-12010-05i198308-198408
RH,BEIGE,BEIGE
main74266-12010-12i198508-198608
RH,MAROON,MAROON
main74266-12010-14i198508-198608
RH,BLUE,BLUE
main74267-12010-01i198508-198608
LH,BLACK,BLACK
main74267-12010-03i198408-198508
LH,GRAY,GRAY
main74267-12010-04i198308-198408
LH,BLUE,BLUE
main74267-12010-05i198408-198508
LH,BEIGE,BEIGE
main74267-12010-12i198508-198608
LH,MAROON,MAROON
main74267-12010-14i198508-198608
LH,BLUE,BLUE
9015260001
main90152-60001
9015960081
main90159-60081
9015960116
main90159-60116
9016460006
main90164-60006
9018906018
main90189-06018
9018906026
main90189-06026
9353045020
main93530-45020
9354026020
main93540-26020
9356014010
main93560-14010

19 parts on this diagram · 3 diagrams in section
