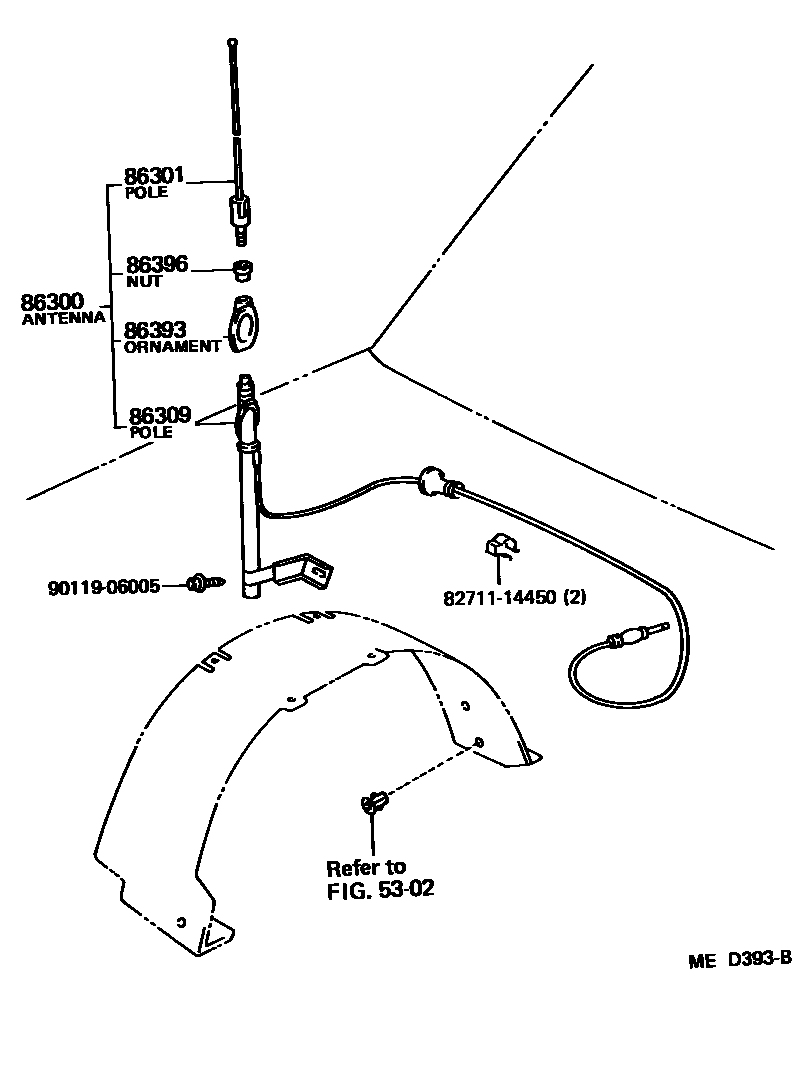

Toyota COROLLA CP — ANTENNA

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

86300ANTENNA ASSY, W/HOLDER

main86300-12280i198308-198707

86301POLE SUB-ASSY, ANTENNA

main86309-16041i198308-198707

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-12110i198308-198707

86393ORNAMENT, ANTENNA

main86392-12060i198308-198707

86396NUT, ANTENNA

main86396-12020i198308-198707

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

9011906005

main90119-06005

8 parts on this diagram · 1 diagram in section

ANTENNA for Toyota COROLLA CP

This section contains 8 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA CP. Key components include: HOOD & FRONT FENDER, ANTENNA ASSY, W/HOLDER, POLE SUB-ASSY, ANTENNA, POLE SUB-ASSY, PILLAR ANTENNA, ORNAMENT, ANTENNA.
