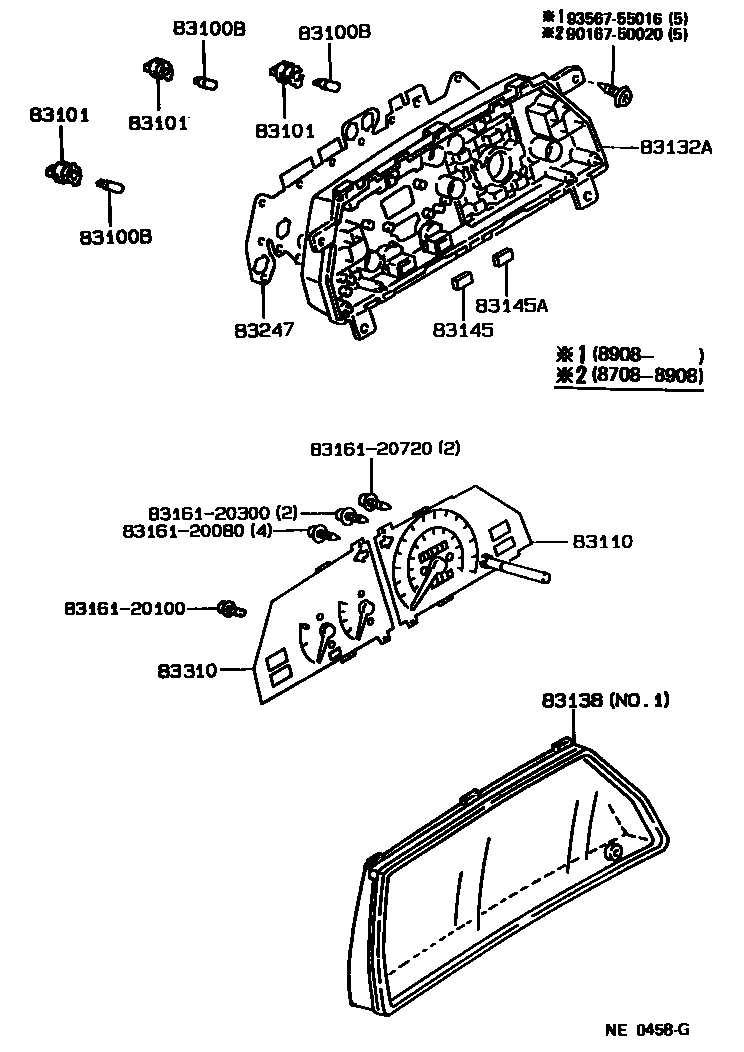

Toyota COROLLA CP — METER
83100BBULB, COMBINATION METER, NO.1
12V 1.2W W/O SOCKET
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
14V 1.4W BULB
12V 3.4W BULB
83110SPEEDOMETER ASSY
CALIFORNIA SPEC
CALIFORNIA SPEC
83132CASE, COMBINATION METER
83132ACASE, METER
83138GLASS, SPEEDOMETER
NO.2
NO.1
NO,1
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83247PLATE, METER CIRCUIT
83310GAGE ASSY, FUEL RECEIVER
8316120080CASE, COMBINATION METER MIRROR, NO.1
main83161-20080
8316120100CASE, COMBINATION METER MIRROR, NO.1
main83161-20100
8316120300CASE, COMBINATION METER MIRROR, NO.1
main83161-20300
8316120720CASE, COMBINATION METER MIRROR, NO.1
main83161-20720
9016750020
main90167-50020
9356755016
main93567-55016
16 parts on this diagram · 3 diagrams in section
METER for Toyota COROLLA CP
This section contains 28 genuine Toyota parts for the METER system of the Toyota COROLLA CP. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, SPEEDOMETER ASSY, CASE, COMBINATION METER.
