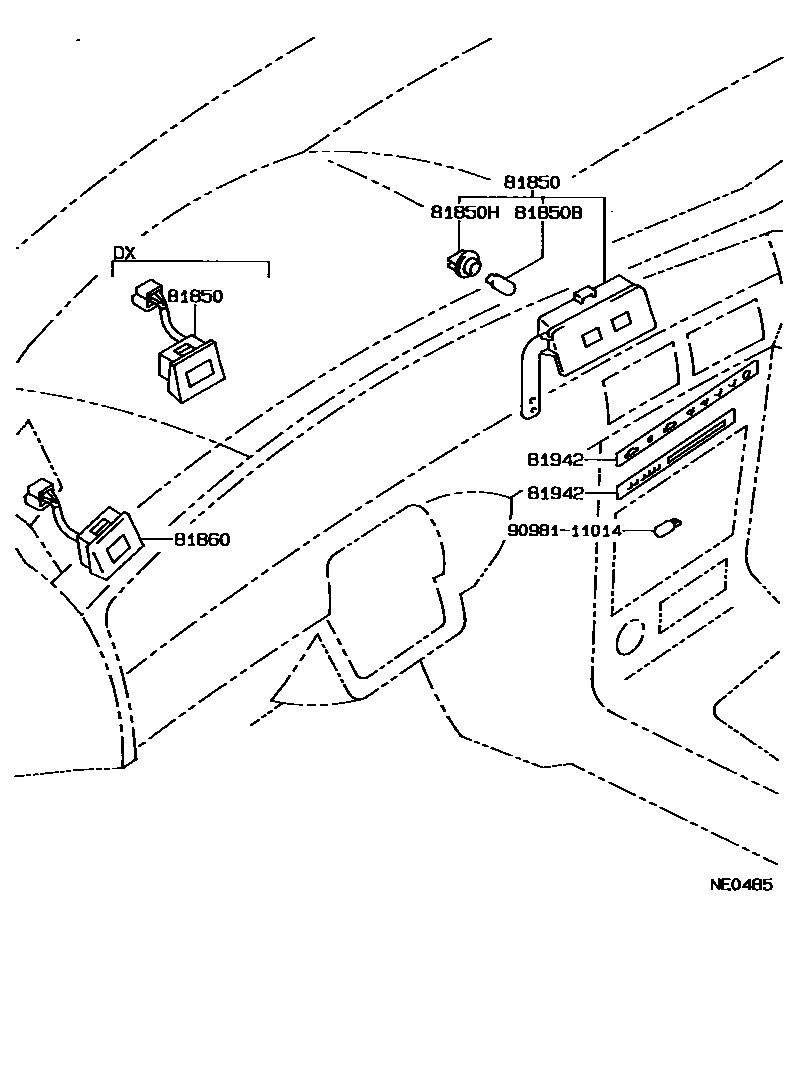

Toyota COROLLA CP — INDICATOR

81850LAMP ASSY, INDICATOR

main81850-12200iAE92..DX,SR5198708-199106

main81850-12230iAE92..DX198708-199106

ANTI THEFT DEVICE

81850BBULB, INDICATOR LAMP

main84999-50010×2iAE92..DX,SR5198708-199106

12V 3.4W

81850HSOCKET, INDICATOR LAMP

main84999-50110×2iAE92..DX,SR5198708-199106

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-12080iAE92..4FC198708-199106

81942SHEET, HEATER CONTROL NAME

main81942-12280iAE92198708-199106

UPR

main81942-12290iAE92198708-199106

LWR

9098111014

main90981-11014

6 parts on this diagram · 1 diagram in section
