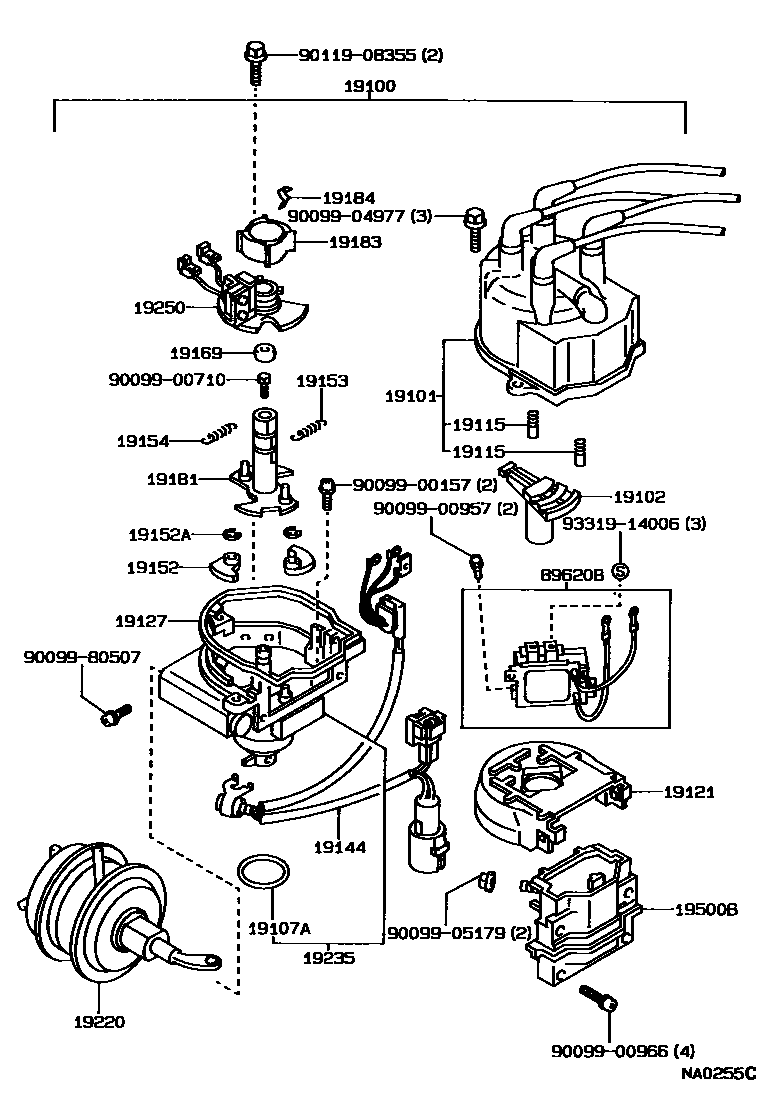

Toyota COROLLA CP — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19030-16120i198708-198908

main19030-16140i198908-199106

main19100-16180i198708-198908

main19100-16260i198908-199106

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-16120i198708-198908

main19101-16140i198908-199106

main19101-16160i198708-198908

main19101-16250i198908-199106

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i198708-199106

main19102-16060i198708-199106

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i198908-199106

main96711-35030i198708-199103

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i198708-199106

main19115-63010i198708-199106

19121COVER, DUST PROOF

main19121-11080i198708-198908

main19121-16040i198708-199106

NO.2

main19121-16080i198908-199106

NO.1

main19121-16160i198708-198908

NO.1

main19121-63040i198908-199106

NO.2

main19121-63090i198908-199106

NO.1

19127PACKING, DUST PROOF

main19127-15021i198708-199106

main19127-15120i198708-198908

main19127-63010i198908-199106

NO.1

main19127-63020i198908-199106

NO.2

19144LEAD, DISTRIBUTOR BREAKER

main19144-16090i198708-198908

main19144-16190i198908-199106

19152WEIGHT, GOVERNOR

main19152-15160i198708-198908

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122i198708-198908

19153SPRING, GOVERNOR, A

main19153-16230i198708-198908

19154SPRING, GOVERNOR, B

main19154-16230i198708-198908

19169STOPPER, CAM GREASE

main19169-63011i198708-198908

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-16220i198708-198908

19183ROTOR, SIGNAL

main19183-15010i198708-198908

19184SPRING, ROTOR SET

main19184-63010i198708-198908

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-16250i198708-198908

19235HOUSING, DISTRIBUTOR

main19235-15130i198908-199106

main19235-16090i198708-198908

main19235-16180i198708-198908

main19235-16260i198908-199106

19250GENERATOR ASSY, SIGNAL

main19251-15091i198708-198805

main19251-16100i198805-198908

19500BCOIL ASSY, IGNITION

main90919-02164i198708-198908

main90919-02196i198908-199106

89620BIGNITER ASSY

main89620-10120i198708-199001

NIPPONDENSO

main89620-12430i198908-199106

9009900157

main90099-00157

9009900710

main90099-00710

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9009980507

main90099-80507

9011908355

main90119-08355

9331914006

main93319-14006

30 parts on this diagram · 3 diagrams in section

DISTRIBUTOR for Toyota COROLLA CP

This section contains 39 genuine Toyota parts for the DISTRIBUTOR system of the Toyota COROLLA CP. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
