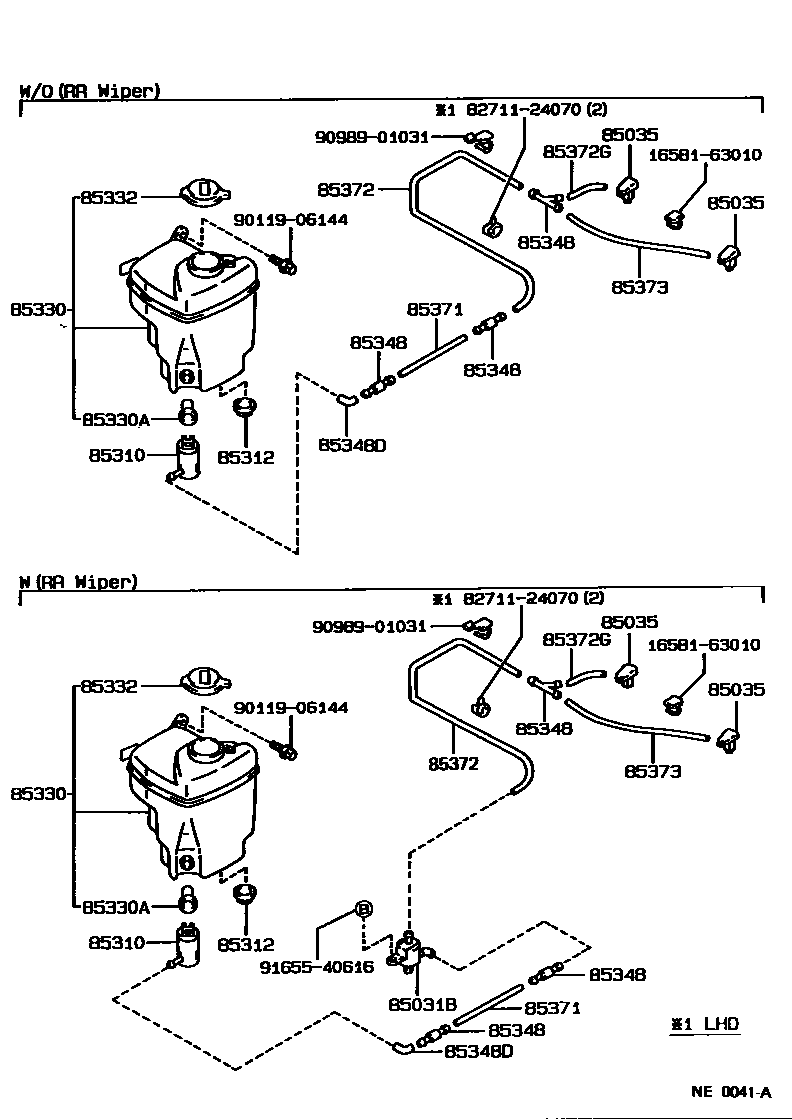

Toyota COROLLA CP/HB — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85031-12120iAE92,EE90..(3D,5D)..(GL,SR5,STD,XL)198705-199308

sub85031-12121

85035NOZZLE SUB-ASSY, WASHER

main85035-12210×2iAE92,EE90..RHD..(3D,5D)198705-199308

sub85381-12050

main85035-12290×2iAE92,EE90..LHD..(3D,5D)198705-199207

sub85381-12050

main85035-12350×2iAE92..RHD..XL..GEN198705-199106

sub85381-12050

main85035-12360×2iAE92..LHD..XL198705-199106

sub85381-12050

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iAE92,EE90199108-199308

85312PACKING, WINDSHIELD WASHER TANK

main85312-12650iAE92,EE90198705-199108

85330JAR ASSY, WINDSHIELD WASHER

main85331-12650iAE92,EE90..GL,SR5,STD,XL198705-199308

main85331-12660iAE92,EE90..(3D,5D)..(GL,SR5,STD,XL)198705-199308

W(RR WIPER)

main85331-12720iAE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)198705-199207

W(PRE AIR CLEANER)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAE92,EE90199108-199308

85332CAP, WINDSHIELD WASHER JAR

main85332-12320iAE92,EE90198705-198808

main85332-12650iAE92,EE90..GL,SR5,STD,XL198808-199308

sub85316-34050

main85332-12660iAE92..GT,GTI199008-199308

sub85316-34040

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAE92,EE90198705-199308

3-WAY

main85349-89122×2iAE92,EE90198705-199308

2-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iAE92,EE90198705-199308

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33410iAE92,EE90..GL,SR5,STD,XL198705-199308

L=1800(*H,L=1100)

main90446-07001iAE92,EE90..(3D,5D)..(GL,SR5,STD,XL)198705-199308

L=1800

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iAE92,EE90198705-198710

L=1450

main90099-33196iAE92,EE90..GL,SR5,STD,XL198908-199308

L=1450(*H,L=560)

85372GTUBE, RUBBER

main90099-33080iEE90..LHD..GEN;AE92,EE90..GCC,SA198908-198909

L=1450

main90099-33087iAE92,EE90..LHD..(3D,5D)198908-198909

L=1450(*H,L=40)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAE92,EE90198705-199308

L=1450

1658163010CLAMP, HOSE(FOR WATER HOSE)

main16581-63010

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

9011906144

main90119-06144

9098901031

main90989-01031

9165540616

main91655-40616

18 parts on this diagram · 1 diagram in section
