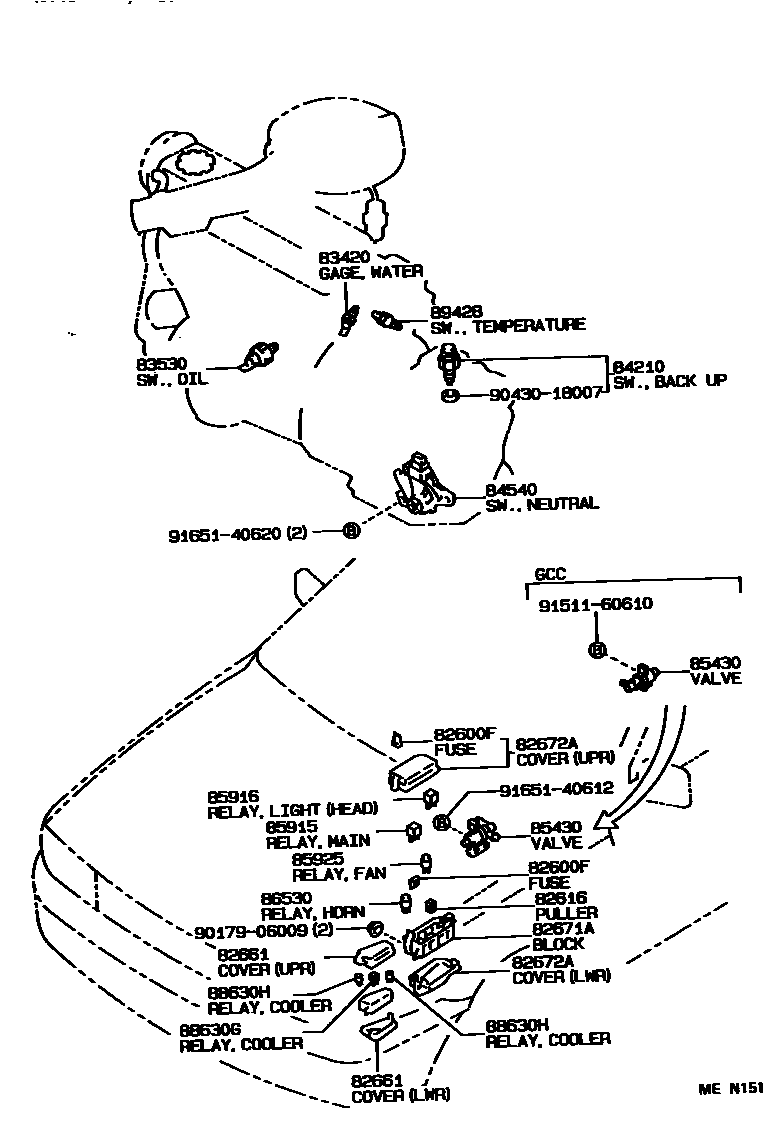

Toyota COROLLA CP/HB — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1

82600FFUSE, FUSE BLOCK

main90080-82005iAE92,EE90..SA198909-199308

30A,GREEN

main90080-82014iAE92,EE90..SA198909-199308

20A,YELLOW

main90080-82015×3iAE92,EE90..SA198909-199308

7.5A,BROWN

main90982-07011iAE92,EE90198908-198909

30A,GREEN

main90982-09002iAE92,EE90198705-198908

10A

main90982-09003iAE92,EE90198705-198908

15A

main90982-09004iAE92,EE90198705-198909

20A,YELLOW

main90982-09005iAE92,EE90..GCC,GEN198909-199207

7.5A

82616PULLER, FUSE

main82616-12010iAE92,EE90198705-198908

82661COVER, RELAY BLOCK, NO.1

main82661-12140iAE92,EE90198705-198908

UPR

main82661-12160iAE92,EE90198705-198908

LWR

82671ABLOCK, JUNCTION

main82671-12050iAE92,EE90..(3D,5D)..(GL,STD,XL)198705-198908

main82671-12080iAE92..GT;AE92..GEN198705-198908

82672ACOVER, JUNCTION BLOCK

main82672-12010iAE92,EE90..(3D,5D)..(GL,STD,XL)198705-198908

UPR

main82672-12020iAE92..GT,GTI198705-198908

UPR

main82672-12070iAE92,EE90..SA198909-199308

LWR

main82672-12140iAE92,EE90..(3D,5D)..(GL,SR5,STD,XL)..(GCC,GEN)198908-199207

UPR

main82672-12150iAE92..5F..GEN198908-199205

UPR

main82672-12180iAE92,EE90..(STD,XL)..SA198909-199308

UPR

main82672-12190iAE92..GT198909-199308

UPR

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iAE92,EE90..GL,SR5,STD,XL198705-199308

main83420-20020iAE92..GT,GTI198705-199308

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30050iAE92..STD,XL198705-198908

main83530-30051iAE92..SR5,STD,XL199003-199308

sub83530-60050

main83530-30080iEE90198705-199308

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAE92,EE90..MTM..(GL,SR5,STD,XL)198705-199308

sub84210-52050

main84210-60021iAE92..GT,GTI198705-199308

84540SWITCH ASSY, NEUTRAL START

main84540-16030iAE92,EE90..ATM198705-199308

85430VALVE, OUTER VENT CONTROL

main90925-09011iEE90..GCC198708-199008

main90925-09034×2iEE90..RHD..5F..XL..GEN;EE90..RHD..(GL,STD)..GEN198908-199105

main90925-09036×2iAE92..GCC198908-199207

85915RELAY, MAIN

main90987-04002iAE92,EE90..3D,5D198705-198708

85916RELAY, LIGHT CONTROL

main90987-02002iAE92,EE90198705-199308

MARUKO,TAIL

main90987-02004iAE92,EE90198705-199308

NIPPONDENSO,TAIL

main90987-02006iAE92,EE90198705-199308

HEAD

85925RELAY, RADIATOR FAN

main90987-03001iAE92,EE90198705-199006

86530RELAY ASSY, HORN

main90987-02002iAE92,EE90198705-199308

MARUKO

main90987-02004iAE92,EE90198705-199308

NIPPONDENSO

88630GRELAY ASSY, COOLER

main88630-32010iAE92,EE90..GEN,SA199009-199106

88630HRELAY ASSY, COOLER

main90987-02004×2iAE92,EE90198705-199009

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100iEE90..SA198908-199308

AISIN

main89428-10110iEE90..SA198908-199308

NIPPONDENSO

main89428-15011iAE92..GCC,GEN198908-199308

NO.1

sub89428-32010

main89428-20060iEE90..GEN;EE90..5F..GCC199006-199207

9017906009

main90179-06009

9043018007

main90430-18007

9151160610

main91511-60610

9165140612

main91651-40612

9165140620

main91651-40620

22 parts on this diagram · 10 diagrams in section
